MrCong233 opened a new issue, #21234:
URL: https://github.com/apache/shardingsphere/issues/21234
## Bug Report
During consistency check based on shardingsphere-proxy + openGauss 3.1.0 (1
coordination node and two data nodes ), an exception is found in one of the
conditions.
```sql
select
c.c_w_id, c.c_d_id, c.c_id, c.c_balance,
(select sum(h_amount) as c_h_amount from bmsql_history h where
h.h_c_w_id = c.c_w_id and h.h_c_d_id = c.c_d_id and h.h_c_id = c.c_id),
(select sum(ol_amount) as c_ol_amount from bmsql_order_line ol,
bmsql_oorder o where ol.ol_w_id = o.o_w_id and ol.ol_d_id = o.o_d_id and
ol.ol_o_id = o.o_id
and ol.ol_delivery_d is not null
and o.o_w_id = c.c_w_id and o.o_d_id = c.c_d_id and o.o_c_id =
c.c_id)
from bmsql_customer c where c.c_w_id = 1 and c.c_d_id = 1 and c.c_id =
997;
```
To simplify the problem description, query SQL is simplified as follows:
c_w_id、c_d_id、c_id are primary keys of a customer, bmsql_history means
payment records for all users.
Use select(select) composite sql to query the sum of all payment records of
a customer, c_h_amount = 4055.82, only one datasource is requested.
```sql
select
c.c_w_id, c.c_d_id, c.c_id, c.c_balance,
(select sum(h_amount) as c_h_amount from bmsql_history h where
h.h_c_w_id = c.c_w_id and h.h_c_d_id = c.c_d_id and h.h_c_id = c.c_id)
from bmsql_customer c where c.c_w_id = 1 and c.c_d_id = 1 and c.c_id = 997;
```
Directly query the total payment amount of the user, c_amount = 18086.50,
two datasources were requested.
```sql
select * from bmsql_history h where h.h_c_w_id = 1 and h.h_c_d_id = 1 and
h.h_c_id = 997;
select sum(h_amount) from bmsql_history h where h.h_c_w_id = 1 and
h.h_c_d_id = 1 and h.h_c_id = 997;
```
### Which version of ShardingSphere did you use?
5.2.0 snapshot， commit d4c0048a5c3fd61625b3b502380c65b7e88cd927
### Which project did you use? ShardingSphere-JDBC or ShardingSphere-Proxy?
ShardingSphere-Proxy
### Expected behavior
The total payment amount of the customer in the select(select) query is
equal to the total payment amount of the user in the direct query.
### Actual behavior
The total payment amount of the customer in the select(select) query,
sum(h_amount) = 4055.82, only one datasource is requested.
The total payment amount of the customer in the direct query, sum(h_amount)
= 18086.5, two datasources are requested.
### Reason analyze (If you can)

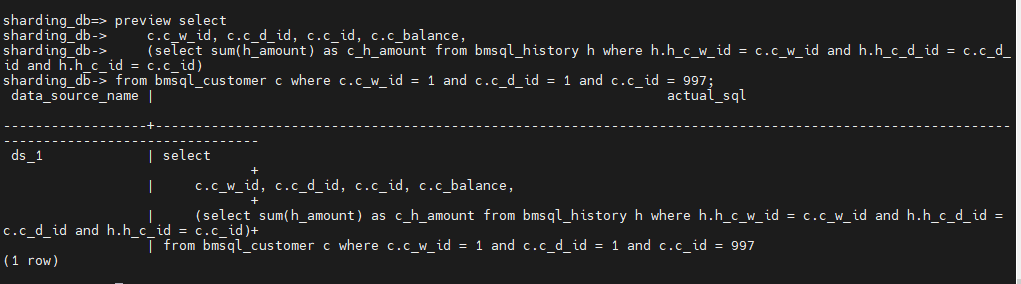

When executing select(select) composite sql, shardingshere determines the
target datasources based on th table bmsql_customer's rules, doesn't consider
the table bmsql_history's rules.
b2e6a1.png)
### Steps to reproduce the behavior, such as: SQL to execute, sharding rule
configuration, when exception occur etc.
* steps to reproduce the behavior
1. execute benchmark for an hour
2. gsql to shardingsphere
3. execute `select sum(h_amount) from bmsql_history h where h.h_c_w_id = 1
and h.h_c_d_id = 1 and h.h_c_id = 997;`,check sum(h_amount)
4. execute `select
c.c_w_id, c.c_d_id, c.c_id, c.c_balance,
(select sum(h_amount) as c_h_amount from bmsql_history h where
h.h_c_w_id = c.c_w_id and h.h_c_d_id = c.c_d_id and h.h_c_id = c.c_id)
from bmsql_customer c where c.c_w_id = 1 and c.c_d_id = 1 and c.c_id =
997;`, check c_h_amount.
* table bmsql_customer
复杂查询数据源路由问题.assets/image-20220928153431397.png)
* table bmsql_history
复杂查询数据源路由问题.assets/image-20220928153514800.png)
* config-sharding.yaml
```config-sharding.yaml
databaseName: sharding_db
dataSources:
ds_0:
connectionTimeoutMilliseconds: 3600000
idleTimeoutMilliseconds: 60000
maxLifetimeMilliseconds: 1800000
maxPoolSize: 410
minPoolSize: 400
ds_1:
connectionTimeoutMilliseconds: 3600000
idleTimeoutMilliseconds: 60000
maxLifetimeMilliseconds: 1800000
maxPoolSize: 410
minPoolSize: 400
rules:
- !SHARDING
bindingTables:
- bmsql_warehouse, bmsql_customer
- bmsql_stock, bmsql_district, bmsql_order_line
broadcastTables:
- bmsql_item
defaultDatabaseStrategy:
standard:
shardingAlgorithmName: database_inline
shardingColumn: ds_id
defaultTableStrategy:
none: null
shardingAlgorithms:
database_inline:
props:
algorithm-expression: ds_${ds_id % 1}
type: INLINE
ds_inline_mod:
props:
sharding-count: 2
type: MOD
tables:
bmsql_config:
actualDataNodes: ds_${0..1}.bmsql_config
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: cfg_id
bmsql_customer:
actualDataNodes: ds_${0..1}.bmsql_customer
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: c_w_id
bmsql_district:
actualDataNodes: ds_${0..1}.bmsql_district
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: d_w_id
bmsql_history:
actualDataNodes: ds_${0..1}.bmsql_history
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: h_w_id
bmsql_new_order:
actualDataNodes: ds_${0..1}.bmsql_new_order
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: no_w_id
bmsql_oorder:
actualDataNodes: ds_${0..1}.bmsql_oorder
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: o_w_id
bmsql_order_line:
actualDataNodes: ds_${0..1}.bmsql_order_line
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: ol_w_id
bmsql_stock:
actualDataNodes: ds_${0..1}.bmsql_stock
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: s_w_id
bmsql_warehouse:
actualDataNodes: ds_${0..1}.bmsql_warehouse
databaseStrategy:
standard:
shardingAlgorithmName: ds_inline_mod
shardingColumn: w_id
t_order:
actualDataNodes: ds_${0..0}.t_order
```
### Example codes for reproduce this issue (such as a github link).
--
