## Bug Report
### Steps to reproduce the behavior
execute below sqls:
```
CREATE TABLE `t_order_test` (
`test_id` bigint(20) NOT NULL AUTO_INCREMENT,
`user_id` int(11) NOT NULL,
`order_id` bigint(20) NOT NULL,
PRIMARY KEY (`test_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COLLATE=utf8_bin;
CREATE TABLE `t_order_test` (
`test_id` bigint(20) NOT NULL AUTO_INCREMENT,
`user_id` int(11) NOT NULL,
`order_id` bigint(20) NOT NULL,
PRIMARY KEY (`test_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COLLATE=utf8_bin;
INSERT INTO `sharding_db`.`t_order` (`user_id`, `status`) VALUES (1,
'error');
INSERT INTO `sharding_db`.`t_order` (`user_id`, `status`) VALUES (1, 'done');
```
the datas in t_order table are:
order_id|user_id|status
-|-|-
532211747042361344|1|done
532211587092578305|1 |error
```
INSERT INTO `sharding_db`.`t_order_test` (`user_id`, `order_id`) VALUES (1,
532211587092578305);
INSERT INTO `sharding_db`.`t_order_test` (`user_id`, `order_id`) VALUES (1,
532211747042361344);
INSERT INTO `sharding_db`.`t_order_test` (`user_id`, `order_id`) VALUES (1,
532211747042361344);
```
the datas in t_order_test table are:
test_id|user_id|order_id
-|-|-
532211883030085633|1|532211747042361344
532211838511742976|1|532211587092578305
532211888822419456|1|532211747042361344
execute:
```
select t1.*, t2.* from t_order t1 inner join t_order_test t2 on t1.order_id
= t2.order_id;
```
### Expected behavior
When I go to the actual database to do the query on actual table, I get some
rows:
```
select t1.*, t2.* from t_order_0 t1 inner join t_order_test_3 t2 on
t1.order_id = t2.order_id;
```
order_id|user_id|status|test_id|user_id1|order_id1
-|-|-|-|-|-
532211747042361344|1|done|532211883030085633|1|532211747042361344
```
select t1.*, t2.* from t_order_0 t1 inner join t_order_test_6 t2 on
t1.order_id = t2.order_id;
```
order_id|user_id|status|test_id|user_id1|order_id1
-|-|-|-|-|-
532211747042361344|1|done|532211888822419456|1|532211747042361344
And I want to get the union of the whole rows.
### Actual behavior
order_id|user_id|status|test_id|user_id1|order_id1
-|-|-|-|-|-
null|null|null|null|null|null
### Which version of ShardingSphere did you use?
shardingsphere-4.1.1
### Which project did you use? ShardingSphere-JDBC or ShardingSphere-Proxy?
ShardingSphere-Proxy
### Reason analyze (If you can)

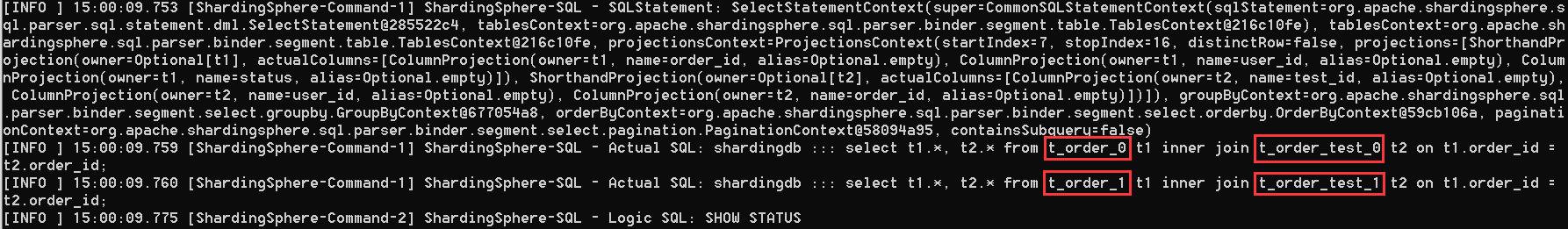

I turned on the sql show, and found that actually there are only two queries:
And the inner join query isn't executed on the left tables like
t_order_test_3、t_order_test_4...
But I want to do the query on all actualDataNodes(2*10) and get the unions
such as `select t1.*, t2.* from t_order_${0..1} t1 inner join
t_order_test_${0..9} t2 on t1.order_id = t2.order_id;`
is there any usages wrong?
### config-sharding.yaml
```
schemaName: sharding_db
dataSources:
shardingdb:
url: jdbc:mysql://localhost:3306/shardingdb
username: root
password: ************
# autoCommit: true
connectionTimeoutMilliseconds: 30000
idleTimeoutMilliseconds: 60000
maxLifetimeMilliseconds: 1800000
maxPoolSize: 50
shardingRule:
tables:
t_order:
actualDataNodes: shardingdb.t_order_${0..1}
tableStrategy:
inline:
shardingColumn: order_id
algorithmExpression: t_order_${order_id % 2}
keyGenerator:
type: SNOWFLAKE
column: order_id
t_order_test:
actualDataNodes: shardingdb.t_order_test_${0..9}
tableStrategy:
inline:
shardingColumn: test_id
algorithmExpression: t_order_test_${test_id % 10}
keyGenerator:
type: SNOWFLAKE
column: test_id
bindingTables:
- t_order, t_order_test
defaultDataSourceName: shardingdb
defaultTableStrategy:
none:
defaultDatabaseStrategy:
inline:
shardingColumn: user_id
algorithmExpression: shardingdb
```
----------------------------------------------------------------
