[GitHub] [shardingsphere] iblilife commented on issue #8605: table for unconfigured "SELECT t.*, t2.col FROM t LEFT JOIN t2" not work

Wed, 16 Dec 2020 21:35:00 -0800


iblilife commented on issue #8605:
URL: https://github.com/apache/shardingsphere/issues/8605#issuecomment-747216576



   @strongduanmu
   # case 1, FAILED
   > `card_type` `shop_employee` don't need sharding。unconfigured in yaml file。

   mybatis mapper.xml
   ```xml
     <select id="fetchCardTypeList" resultType="java.util.Map">
       SELECT
         ct.*,
         cemp.name as createEmpName
       FROM card_type ct
       left join shop_employee cemp on (cemp.id = ct.create_employee_id)
       where ct.shop_id = #{shopId}

       <!--
        // RUN FAILED
        SELECT
         ct.id,
         cemp.*
       FROM card_type ct
       left join shop_employee cemp on (cemp.id = ct.create_employee_id)
       where ct.shop_id = #{shopId}
        -->
     </select>
   ```
   console log
   ```text
   [13:28:49:830] [INFO] -
org.apache.shardingsphere.infra.executor.sql.log.SQLLogger.log(SQLLogger.java:74)
 - Logic SQL: SELECT
         ct.*,
         cemp.name as createEmpName
       FROM card_type ct
       left join shop_employee cemp on (cemp.id = ct.create_employee_id)
       where ct.shop_id = ? LIMIT ?
   [13:28:49:830] [INFO] -
org.apache.shardingsphere.infra.executor.sql.log.SQLLogger.log(SQLLogger.java:74)
 - SQLStatement:
MySQLSelectStatement(limit=Optional[org.apache.shardingsphere.sql.parser.sql.common.segment.dml.pagination.limit.LimitSegment@5e8f0b00],
 lock=Optional.empty)
   [13:28:49:830] [INFO] -
org.apache.shardingsphere.infra.executor.sql.log.SQLLogger.log(SQLLogger.java:74)
 - Actual SQL: princess ::: SELECT
         ct.*,
         cemp.name as createEmpName
       FROM card_type ct
       left join shop_employee cemp on (cemp.id = ct.create_employee_id)
       where ct.shop_id = ? LIMIT ?  ::: [498914881295097857, 10]
   [13:28:49:832] [DEBUG] -
org.apache.ibatis.logging.jdbc.BaseJdbcLogger.debug(BaseJdbcLogger.java:143) -
<==      Total: 7
   ```
   debug

![debug_img_1](https://jzray.oss-cn-shenzhen.aliyuncs.com/temp/debug_img_1.png)

   # case 2, OK
   mybatis mapper.xml
   ```xml
   <select id="fetchCardTypeList" resultType="java.util.Map">
       SELECT
         ct.*
       FROM card_type ct
       left join shop_employee cemp on (cemp.id = ct.create_employee_id)
       where ct.shop_id = #{shopId}
   </select>
   ```

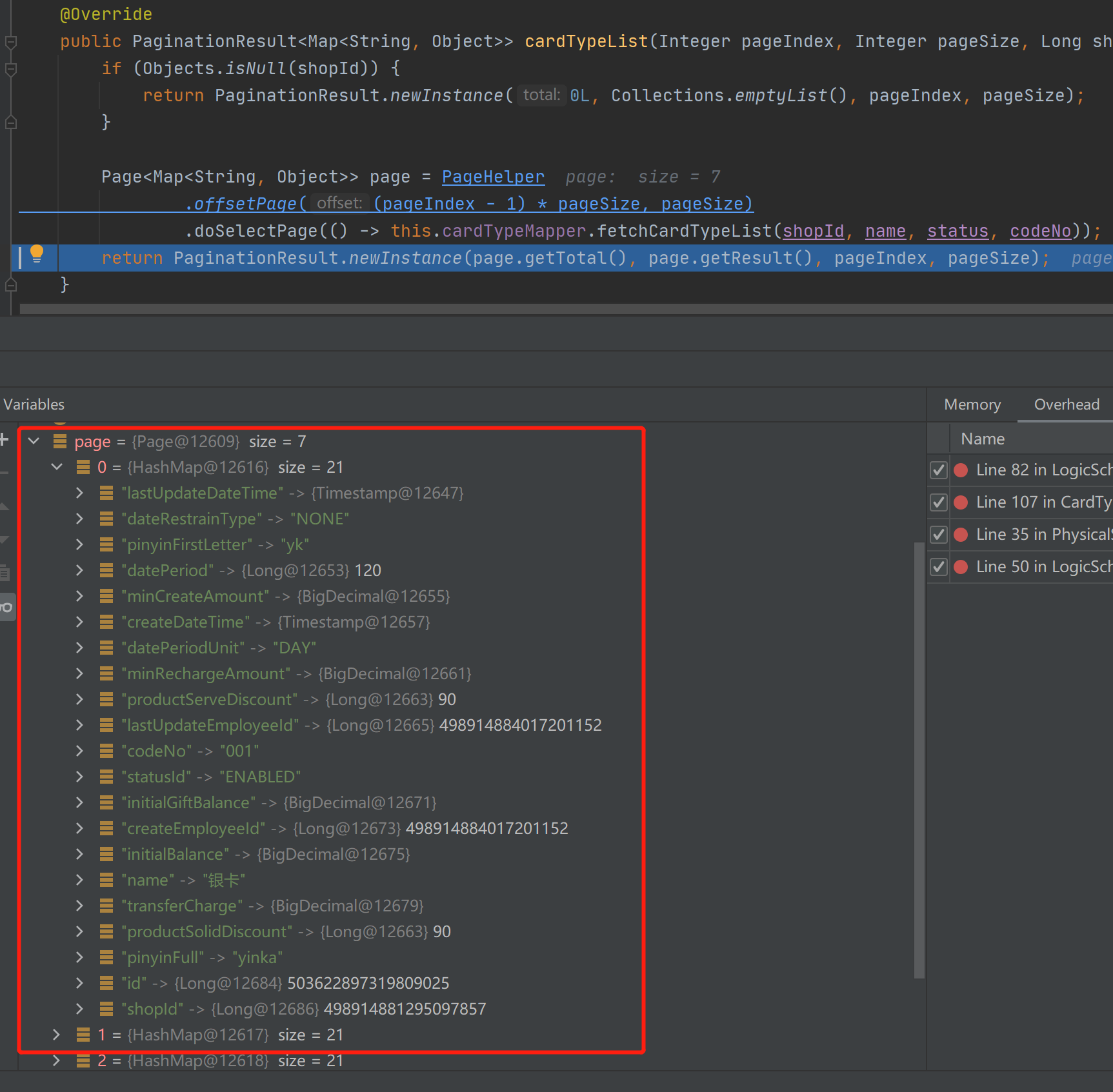

![debug_img_2](https://jzray.oss-cn-shenzhen.aliyuncs.com/temp/debug_img_2.png)

   # case 3, OK
   mybatis mapper.xml
   ```xml
     <select id="fetchCardTypeList" resultType="java.util.Map">
       SELECT
         cemp.*
       FROM card_type ct
       left join shop_employee cemp on (cemp.id = ct.create_employee_id)
       where ct.shop_id = #{shopId}
      </select>
   ```

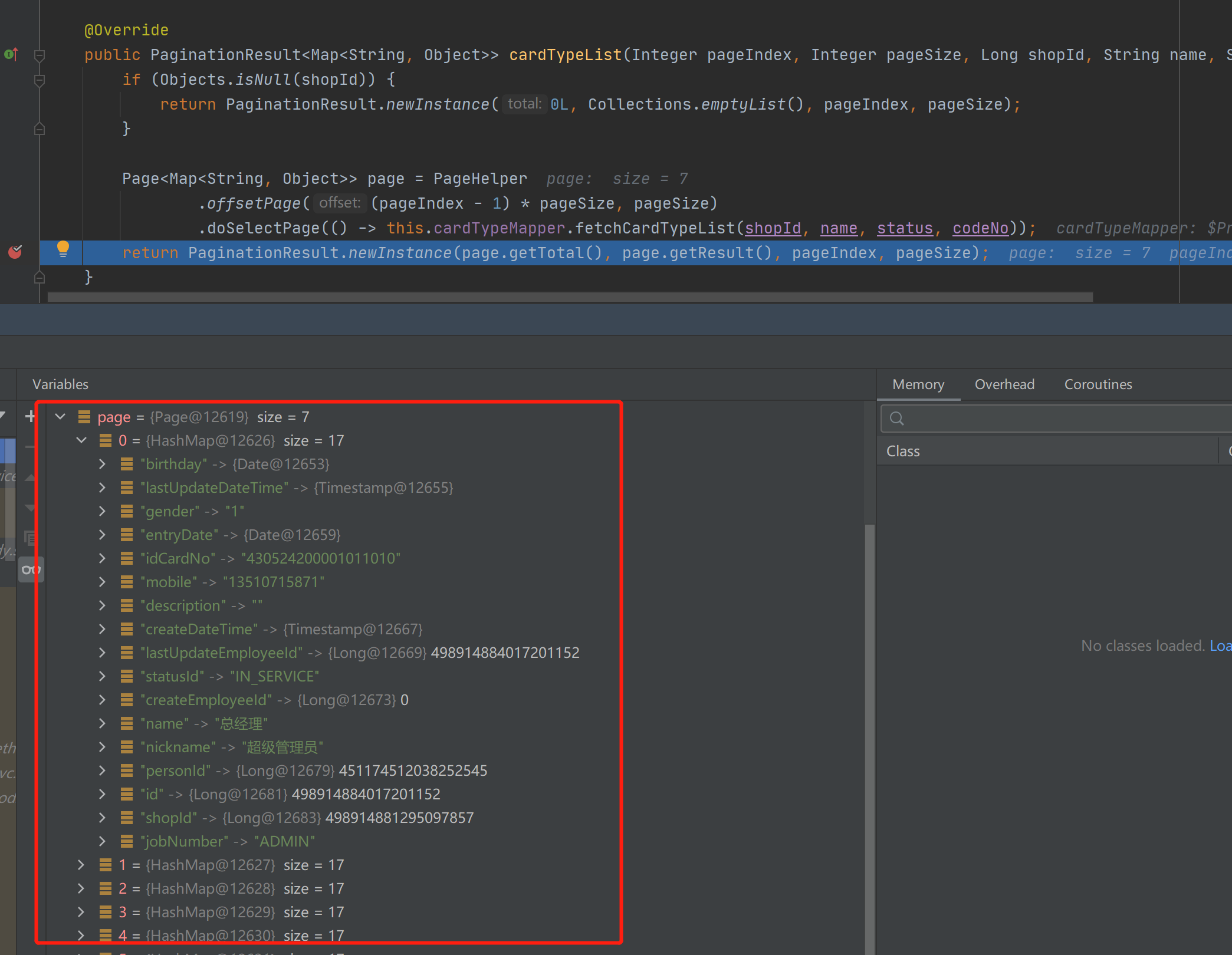

![debug_img_5](https://jzray.oss-cn-shenzhen.aliyuncs.com/temp/debug_img_5.png)

   # case 4, OK
   mybatis mapper.xml
   ```xml
     <select id="fetchCardTypeList" resultType="java.util.Map">
       SELECT
         ct.*,
         cemp.*
       FROM card_type ct
       left join shop_employee cemp on (cemp.id = ct.create_employee_id)
       where ct.shop_id = #{shopId}
      </select>
   ```


----------------------------------------------------------------
