   Hi,this is my ideas.

   **Background**

   1. we assume the sql like:  `create table user(id,user_name,password)`
     and the query Logic SQL : ` select * from user`
   2. feature-encrypt rewrite engine : Scan all of the table columns to find
the encrypt column from logic SQL, and generate the column token. just like
`user.id,user.user_name,user.password`
   3. feature-sharding rewrite engine for sharding table: Scan all of the table
name to find rewrite table name from logic SQL,and generate all of the Table
token.

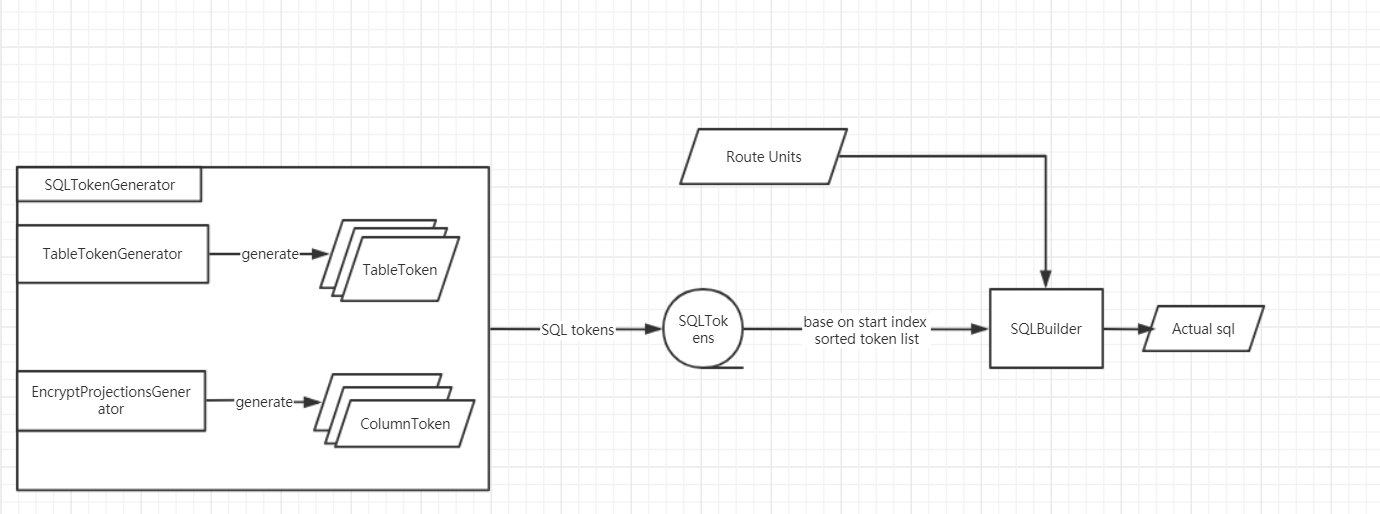

   **Present situation**
   feature-encrypt generate column token contain the `owner ` information and
then it's `owner` name equals the `logic table` name, but the `owner ` doesn’t
dependents on table sharding route unit,so the sql can not rewrite
corrently,just like `select user.id,user.user_name,user.password from user_0`


![image](https://user-images.githubusercontent.com/34728144/114300085-20061f00-9af1-11eb-8fce-31ba08550169.png)

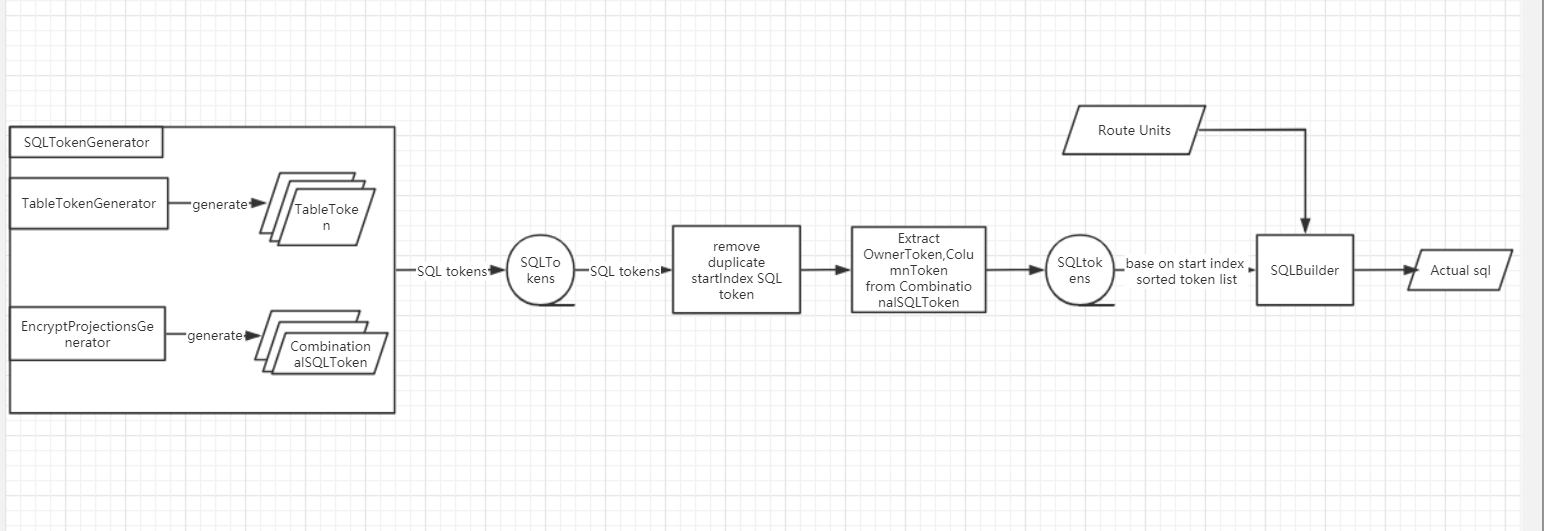

   **Current Solutions**

   1. Defind new structure `OwnerToken` to save the column’s owner, and
`OwnerToken` implements `RouteUnitAware` .
   2. Defind new structure `CombinationalSQLToken` to save the collection of
`SQLToken`.
   3. The encrypt rewrite engine generate `OwnerToken ` and
`SubstitutableColumnNameToken` at the same time, keep them in their generation
order and save to `CombinationalSQLToken ` .


![image](https://user-images.githubusercontent.com/34728144/114300279-074a3900-9af2-11eb-8b3e-0e1242a4f62a.png)



--
