chengh1 opened a new issue #13461:
URL: https://github.com/apache/shardingsphere/issues/13461


   ## Bug Report

   **For English only**, other languages will not accept.

   Before report a bug, make sure you have:

   - Searched open and closed [GitHub
issues](https://github.com/apache/shardingsphere/issues).
   - Read documentation: [ShardingSphere
Doc](https://shardingsphere.apache.org/document/current/en/overview).

   Please pay attention on issues you submitted, because we maybe need more
details.
   If no response anymore and we cannot reproduce it on current information, we
will **close it**.

   Please answer these questions before submitting your issue. Thanks!

   ### Which version of ShardingSphere did you use?
   5.0.0-RC1-SNAPSHOT

   ### Which project did you use? ShardingSphere-JDBC or ShardingSphere-Proxy?
   ShardingSphere-Proxy

   ### Expected behavior
   The proxy is not restarted after modifying the table structure without
proxy,  the all fields of the returned queryheader are from the same column,
and the returned columns are not expected.

   ### Actual behavior
   The proxy is not restarted after modifying the table structure without
proxy,  the all fields of the returned queryheader are not from the same
column, and the returned columns arenot expected.

   ### Reason analyze (If you can)

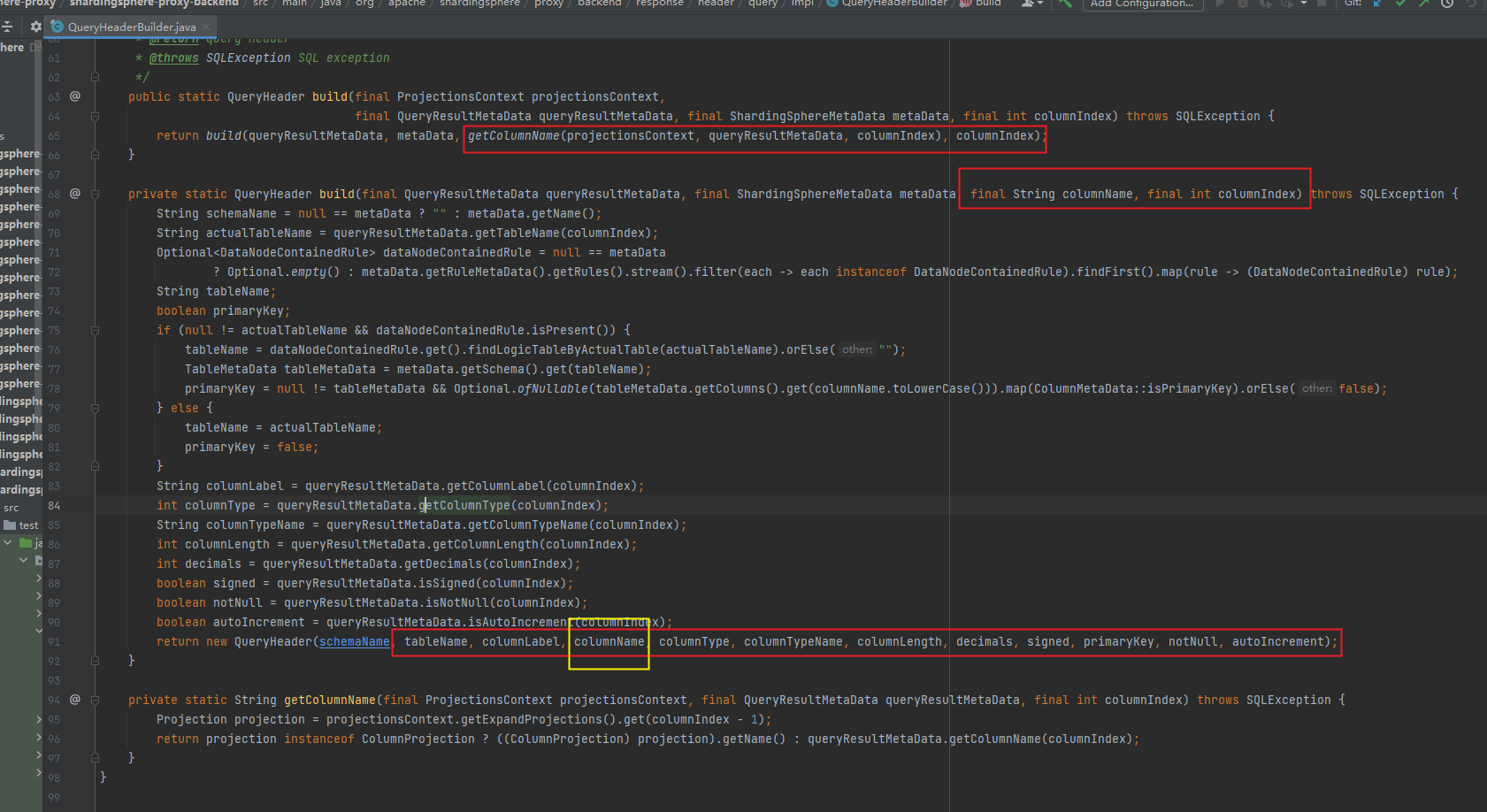

![image](https://user-images.githubusercontent.com/39934378/140273501-e0ccf66a-fcc2-4b2f-bcac-f13cd5e4955b.png)
   The parameter columnName and columnIndex of the build method comes from the
projectionsContext of executionContext, they are all comes from metadata, but
the other fields of the queryheader are all from queryResultMetaData by
columnIndex, so if the field's index in proxy meta and queryresult is
different, then will cause  the all fields of the returned queryheader are not
from the same column, and the returned columns are not expected.

   **If we want to avoid this problem, we should ensure that the columnIndex is
the actual index in the queryresult,this will ensure that all fields of the
queryheader are from the same column, and the returned columns are expected.**

   ### Steps to reproduce the behavior, such as: SQL to execute, sharding rule
configuration, when exception occur etc.
   **There is a single table t_user, it has three fields, they are id, name,
age. Sharding table has the same problem.**

   1. start the proxy.
   2. add a new column birthday after id, then the actual column are id,
birthday, name, age.
   3.  assuming that proxy is not restarted at this time,  execute the sql:
select * from t_user, at this time, there are some problems:

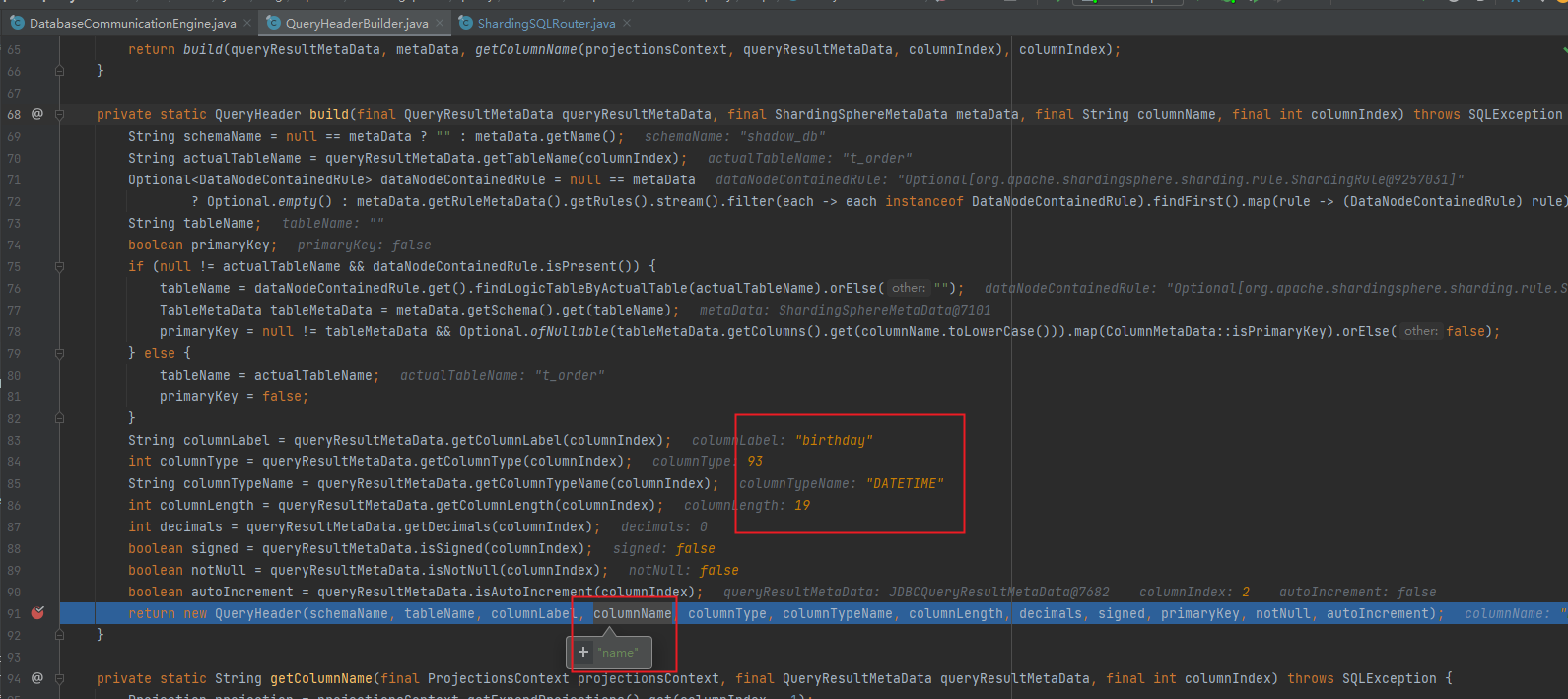

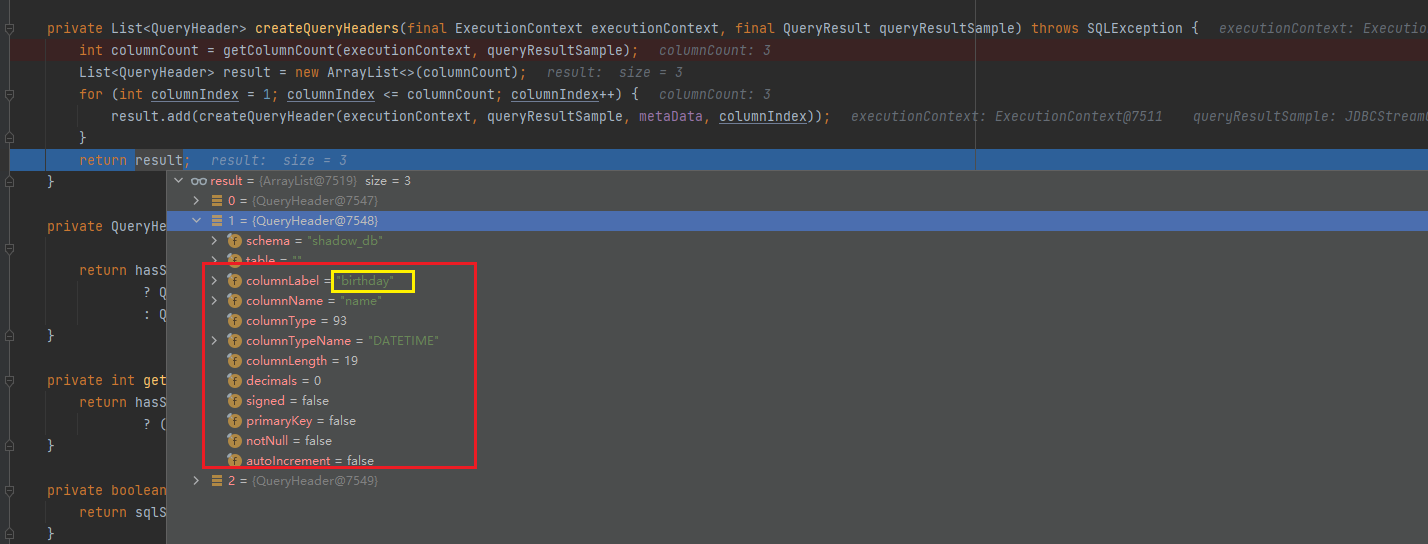

   - the all fields of the returned queryheader are not from the same column

![image](https://user-images.githubusercontent.com/39934378/140282626-a28b3011-ea43-4697-a323-63f3078fd727.png)

![image](https://user-images.githubusercontent.com/39934378/140282024-e65bccd4-c707-4f3a-8abc-5e1f9e435a3a.png)

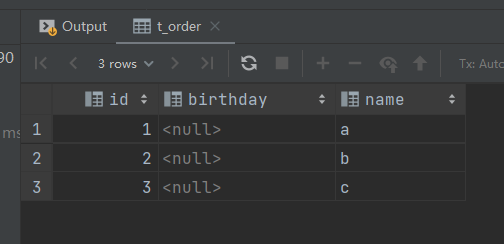

   - the returned columns are not expected

![image](https://user-images.githubusercontent.com/39934378/140285512-0b619787-640d-435e-aea6-59c92ab9568f.png)


   ### Example codes for reproduce this issue (such as a github link).



--
