RaigorJiang opened a new pull request #14692:
URL: https://github.com/apache/shardingsphere/pull/14692


   For #14661,
   support minimal, complete and manual configurations when create sharding
scaling.

   Changes proposed in this pull request:
   - add new scaling configuration definition in DistSQL
   - add test cases for parser
   - add test cases for updater

   ### Example
   #### Minimal
   - DistSQL
   ```sql
   CREATE SHARDING SCALING scaling_name(
   COMPLETION_DETECTOR(TYPE(NAME=IDLE,
PROPERTIES("incremental-task-idle-minute-threshold"=30))),
   DATA_CONSISTENCY_CHECKER(TYPE(NAME=DATA_MATCH,
PROPERTIES("chunk-size"=1000)))
   );
   ```

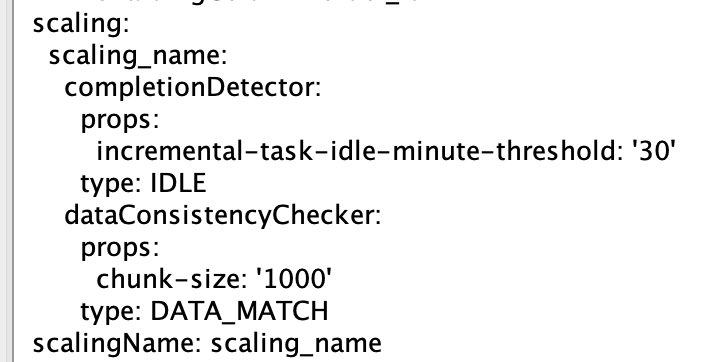

   - MetaData

![image](https://user-images.githubusercontent.com/5668787/148933042-82dbac91-8084-405f-8be0-d0b529423fce.png)

   #### Complete
   - DistSQL
   ```sql
   CREATE SHARDING SCALING scaling_name(
   INPUT(
     WORKER_THREAD=40,
     BATCH_SIZE=1000,
     RATE_LIMITER(TYPE(NAME=QPS, PROPERTIES("qps"=50)))
   ),
   OUTPUT(
     WORKER_THREAD=40,
     BATCH_SIZE=1000,
     RATE_LIMITER(TYPE(NAME=TPS, PROPERTIES("tps"=2000)))
   ),
   STREAM_CHANNEL(TYPE(NAME=MEMORY, PROPERTIES("block-queue-size"=10000))),
   COMPLETION_DETECTOR(TYPE(NAME=IDLE,
PROPERTIES("incremental-task-idle-minute-threshold"=30))),
   DATA_CONSISTENCY_CHECKER(TYPE(NAME=DATA_MATCH,
PROPERTIES("chunk-size"=1000)))
   );
   ```

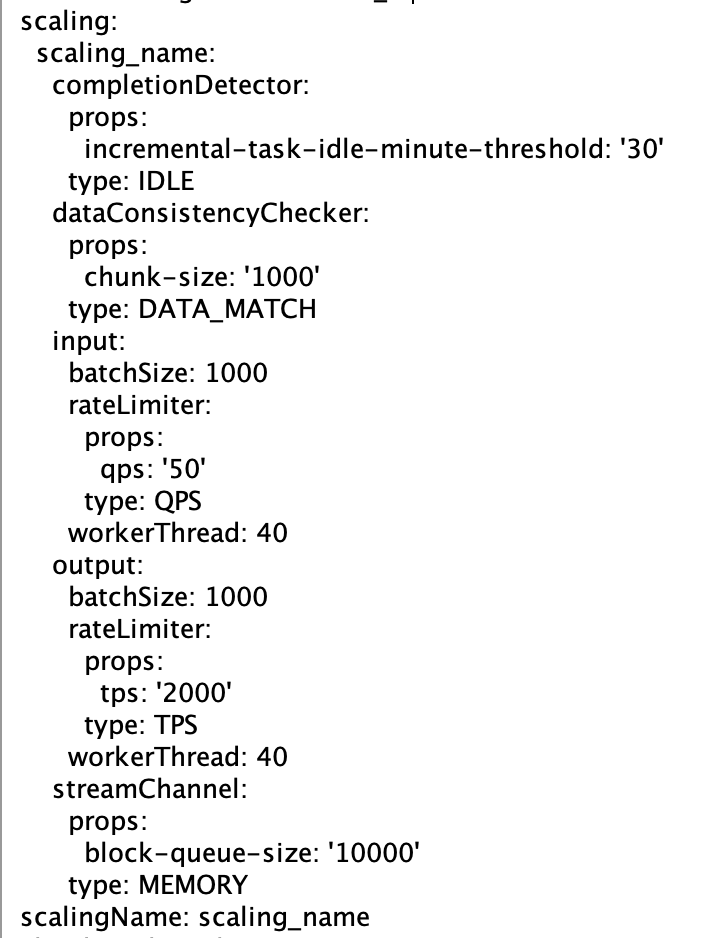

   - MetaData

![image](https://user-images.githubusercontent.com/5668787/148933176-a536ef1e-c4bc-4fad-b7d5-0bfa673057bb.png)

   #### Manual
   - DistSQL
   ```sql
   CREATE SHARDING SCALING scaling_name(
   INPUT(
     WORKER_THREAD=40,
     BATCH_SIZE=1000,
     RATE_LIMITER(TYPE(NAME=QPS, PROPERTIES("qps"=50)))
   ),
   OUTPUT(
     WORKER_THREAD=40,
     BATCH_SIZE=1000,
     RATE_LIMITER(TYPE(NAME=TPS, PROPERTIES("tps"=2000)))
   ),
   STREAM_CHANNEL(TYPE(NAME=MEMORY, PROPERTIES("block-queue-size"=10000)))
   );
   ```

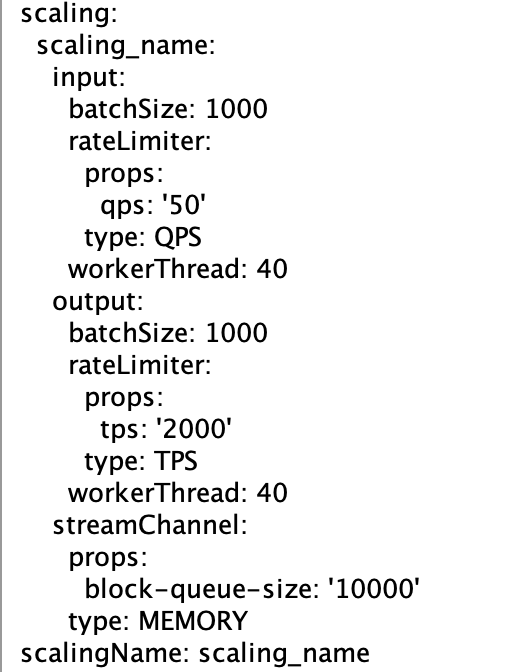

   - MetaData

![image](https://user-images.githubusercontent.com/5668787/148933263-d2e2382c-4646-4def-bc0b-02641cd5e791.png)



--
