zjcnb opened a new issue, #18445:
URL: https://github.com/apache/shardingsphere/issues/18445

   Hi community,

   I think `MySQLNormalReplicationDatabaseDiscoveryProviderAlgorithm` need
enhancement. Currently it only supports `master-slave` cluster mode, but not
support `CASCADE` cluster mode. The reason to support it some users can connect
a `standby database` on the `slave` node to achieve the purpose of backing up
data.

   ```
       public void checkEnvironment(final String databaseName, final
Collection<DataSource> dataSources) {
           ExecutorService executorService =
ExecutorEngine.createExecutorEngineWithCPUAndResources(dataSources.size()).getExecutorServiceManager().getExecutorService();
           Collection<CompletableFuture<Collection<String>>> completableFutures
= new LinkedList<>();
           for (DataSource dataSource : dataSources) {
               completableFutures.add(supplyAsyncCheckEnvironment(dataSource,
executorService));
           }
           CompletableFuture.allOf(completableFutures.toArray(new
CompletableFuture[0]));
           Iterator<CompletableFuture<Collection<String>>>
replicationInstancesFuture = completableFutures.stream().iterator();
           int replicationGroupCount = 0;
           while (replicationInstancesFuture.hasNext()) {
               if (!replicationInstancesFuture.next().join().isEmpty()) {
                   replicationGroupCount++;
               }
           }
           Preconditions.checkState(1 == replicationGroupCount, "Check
Environment are failed in database `%s`.", databaseName);
       }
   ```

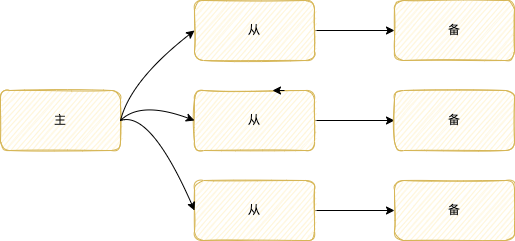

   `Mster-slave mode : `


![image](https://user-images.githubusercontent.com/33742097/174548442-8af27e7f-571f-45cb-85e1-af6db3fa6874.png)

   `cascade mode : `

   ![Uploading image.png…]()

   - [ ] Adjustment checkEnvironment method.
   - [ ] Adjustment find primary replica relation logic.





--
