candyleer opened a new issue #1055: log toolkit may do not take effect in some
case
URL: https://github.com/apache/incubator-skywalking/issues/1055


   Please answer these questions before submitting your issue.

   - Why do you submit this issue?
   - [ ] Question or discussion
   - [x] Bug
   - [ ] Requirement
   - [ ] Feature or performance improvement

   ___
   ### Question
   - What do you want to know?

   ___
   ### Bug
   - Which version of SkyWalking, OS and JRE?

   - Which company or project?

   - What happen?
   #### Question
    when i start an app (called `test_app`) in IDE,i configure the logback file
by following this
[instruction](https://github.com/apache/incubator-skywalking/blob/master/docs/en/Application-toolkit-logback-1.x.md),but
 i found it didn't take effect.
   i debug this question step by step in `agent` jar. i found the class
`org.apache.skywalking.apm.toolkit.log.logback.v1.x.TraceIdPatternLogbackLayout`
 didn't been transformed.this seems to be strange.what is it happened?

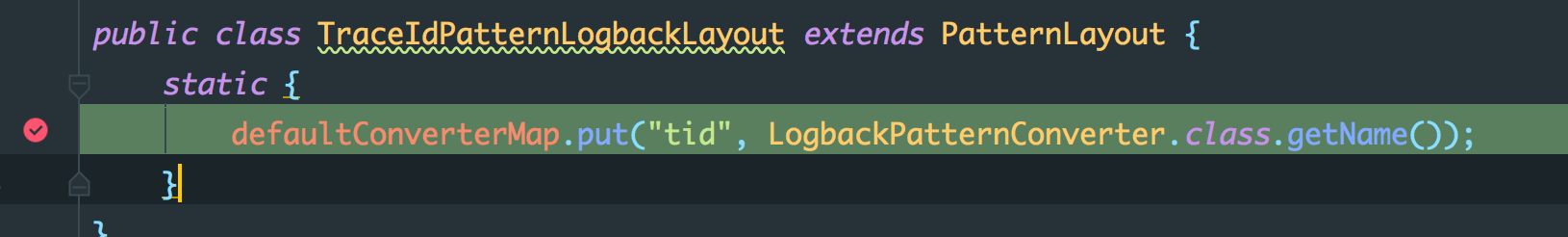

   then  i put an `break point` in this place,

![image](https://user-images.githubusercontent.com/11530760/38506954-e09e8a0a-3c4d-11e8-9694-b6bcee17320b.png)
   and see the `debug` stack trace in ide ,Suddenly I understand.

![image](https://user-images.githubusercontent.com/11530760/38507096-246a5dae-3c4e-11e8-98a0-76d6dd81edc8.png)
   from this picture, we can see that the `TraceIdPatternLogbackLayout` class
was loaded in `premain` method,and invoke by `boot` method.but at that time,the
`byte buddy instrument` didn't work.because the code is
   ```
   ...
    ServiceManager.INSTANCE.boot();
   ...
    new AgentBuilder.Default()...
   .installOn(instrumentation);
   ```
   that is the class `TraceIdPatternLogbackLayout` loaded is before
`instrumentation`.
   **this only happens when application code is loaded by
`AppClassLoader`,because the `logback.xml` in this classpath.**

   in other cases,this code work fine cause their classloader is redefined like
`spring boot` or `tomcat` etc. in this cases,the class
`TraceIdPatternLogbackLayout` will be loaded only by app code invoke `logger`
,when `agent` started by `AppClassLoader`,it can not see the `logback.xml`
config file thus he dont know the class `TraceIdPatternLogbackLayout`,

   #### Solution
   To resolve this problem ,the simplest way is to change the order of
   ```
   ...
    ServiceManager.INSTANCE.boot();
   ...
    new AgentBuilder.Default()...
   .installOn(instrumentation);
   ```
   to
   ```
   ...
    new AgentBuilder.Default()...
   .installOn(instrumentation);
   ...
    ServiceManager.INSTANCE.boot();
   ```
   that is first invoke `instrumentation` then boot all service in case of the
boot service contains some method need to be enhanced.
   but i dont know if there has some other problem will be caused?
   so please check
   ___
   ### Requirement or improvement
   - Please describe about your requirements or improvement suggestions.

----------------------------------------------------------------
