ywf4026 edited a comment on issue #2132:  Does Motan plugin support
cross-thread call?
URL:
https://github.com/apache/incubator-skywalking/issues/2132#issuecomment-454689934


   > > But I found another problem, if thread A call thread B and thread B call
thread C, I can not find the span of B called C.
   >
   > This plugin only works if thread c created in thread b. If you are using a
thread pool, you have to understand the Context#capture and Context#continued
in our plugin APIs. Then make the context propagates across thread b-c

   @wu-sheng I got a question.

   I use skywalking 6.0.0.beta, mysql as storage, standalone

   My code like this:

   `@TraceCrossThread
   Class GetPartScore implements Callable;

   Class GetMidFeature implements Callable{
       public void call(){
               featureServiceMotan.getMidsFeaturesWithRequestId();
       }
   }

   Thread A:
   ExecutorService executorService = Executors.newFixedThreadPool(1);
   executorService. submit(new GetPartScore());

   Thread B:
   ExecutorService executorService = Executors.newFixedThreadPool(1);
       executorService.submit(CallableWrapper.of(new GetMidFeature()));

   Thread C:
   execute GetMidFeature task

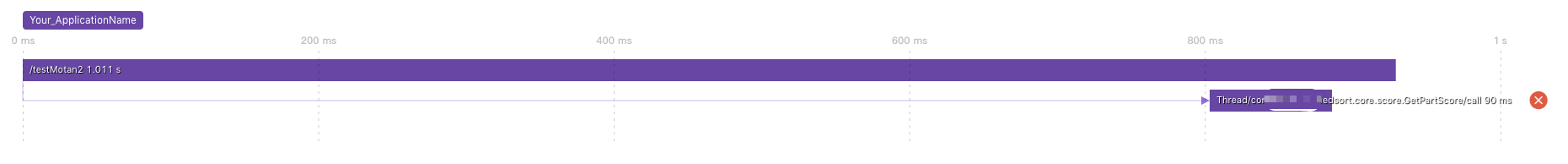

   The trace graph is:

![image](https://user-images.githubusercontent.com/3722641/51233800-d972fa00-19a5-11e9-9f19-9e5c334f914d.png)

   table segment adds two records

![image](https://user-images.githubusercontent.com/3722641/51233963-57370580-19a6-11e9-939d-29d821f3747a.png)

   table endpoint_inventory adds four records

![image](https://user-images.githubusercontent.com/3722641/51234583-14762d00-19a8-11e9-8eee-00a2e1196f94.png)



   The trace graph is not correct, I think it should be:

![image](https://user-images.githubusercontent.com/3722641/51234073-a846f980-19a6-11e9-977e-160b9fff1f58.png)

   I  debug , the problem may be in the preBuild step :

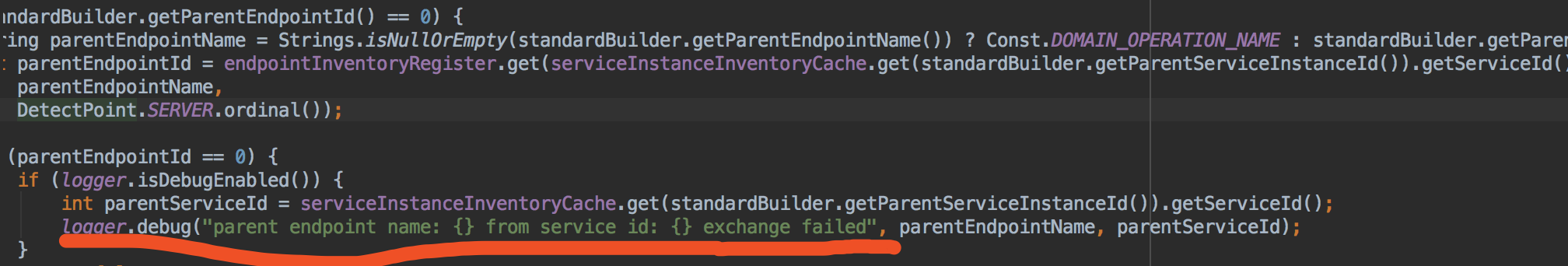

   ReferenceIdExchanger class#line 75:

![image](https://user-images.githubusercontent.com/3722641/51234268-3ae79880-19a7-11e9-9ab3-f4c651a6dd5a.png)

   In table endpoint_inventory, the GetPartScore endpoint's detect_point is 3,
but above code uses DetectPoint.SERVER.ordinal(), that is 0, So the
parentEndpointId(=GetPartScore) can't be found, then the last sement parse fail.

   If I change the value of the detect_point of the GetPartScore endpoint to 0,
then the trace graph is right:

![image](https://user-images.githubusercontent.com/3722641/51234073-a846f980-19a6-11e9-977e-160b9fff1f58.png)


   Is this my  code problem?

   Thanks for your help










----------------------------------------------------------------
