kezhenxu94 commented on issue #2714: [WIP]Seata Agent
URL: https://github.com/apache/skywalking/pull/2714#issuecomment-498004526


   > @kezhenxu94 The rollback trace is not very clear to me. Could you explain
more? In your scenario, which service triggers the rollback? I expect you could
show the trace, one service fails, then TM/TC works together to make other
services rollback too.

   yes I'll elaborate more on this, in this example:

   ```java
       @Override
       @GlobalTransactional(timeoutMills = 300000, name = "dubbo-demo-tx")
       public void purchase(String userId, String commodityCode, int
orderCount) {
           LOGGER.info("purchase begin ... xid: " + RootContext.getXID());
           storageService.deduct(commodityCode, orderCount);
           if (orderCount % 2 == 0) {
               throw new IllegalArgumentException("xxx");
           }
       }
   ```

   - the `business.purchase` throws exception after calling
`storageService.deduct` but before finished the global transaction

   - the exception triggers the `TransactionManager` (TM) to request (from TC)
a rollback

   - the `TransactionCoordinator` (TC) requests all the `ResourceManager`s to
roll back

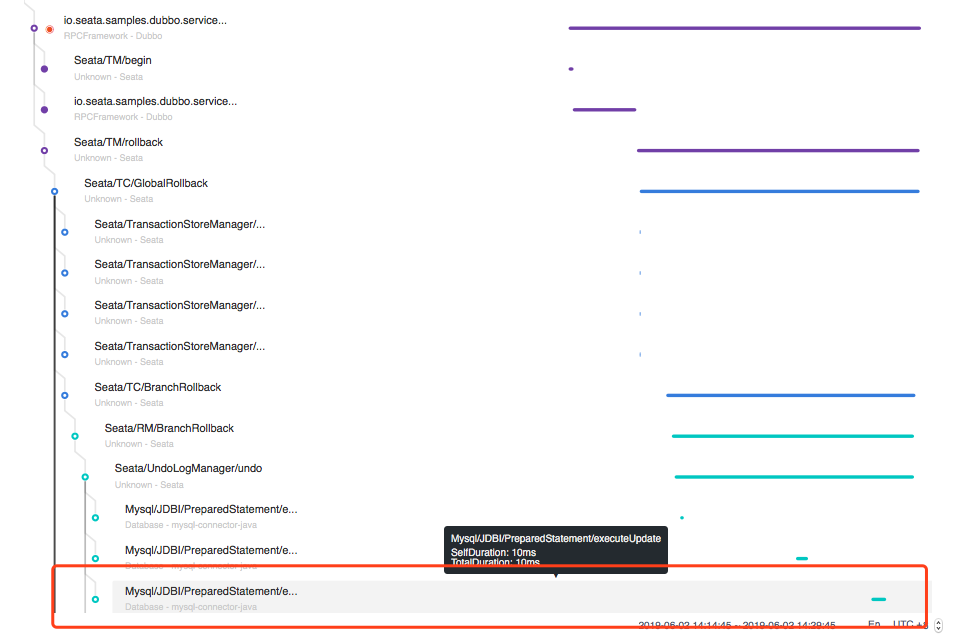

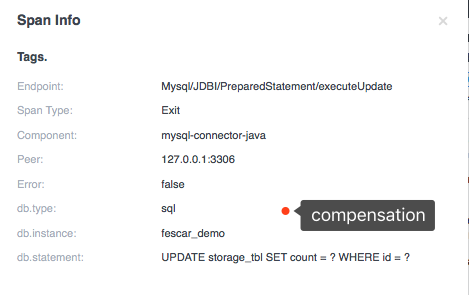

   below the highlighted span is where the `RM` does the rollback operation (by
doing some compensative operations) as the `TC` demanded


![image](https://user-images.githubusercontent.com/15965696/58757719-c66f5980-8543-11e9-9603-2ae9b64953c7.png)

![image](https://user-images.githubusercontent.com/15965696/58757726-ea329f80-8543-11e9-887e-feb3d98e9e03.png)

----------------------------------------------------------------
