wu-sheng commented on issue #3829: Service instance dependency and metrics of
them
URL: https://github.com/apache/skywalking/issues/3829#issuecomment-563026854


   @Fine0830 We have merged the backend PR. We will redeploy the latest codes
to the demo env.

   The UI changes should be like this,

![image](https://user-images.githubusercontent.com/5441976/70399968-0b2ffc00-1a63-11ea-8b62-9eef0200ec78.png)

   After user clicks the new button, it should a box showing up, the [new topo
query
API](https://github.com/apache/skywalking-query-protocol/blob/master/topology.graphqls#L90)
 should be used for this.

   You should be able to get client id and server id from the original topology
map.

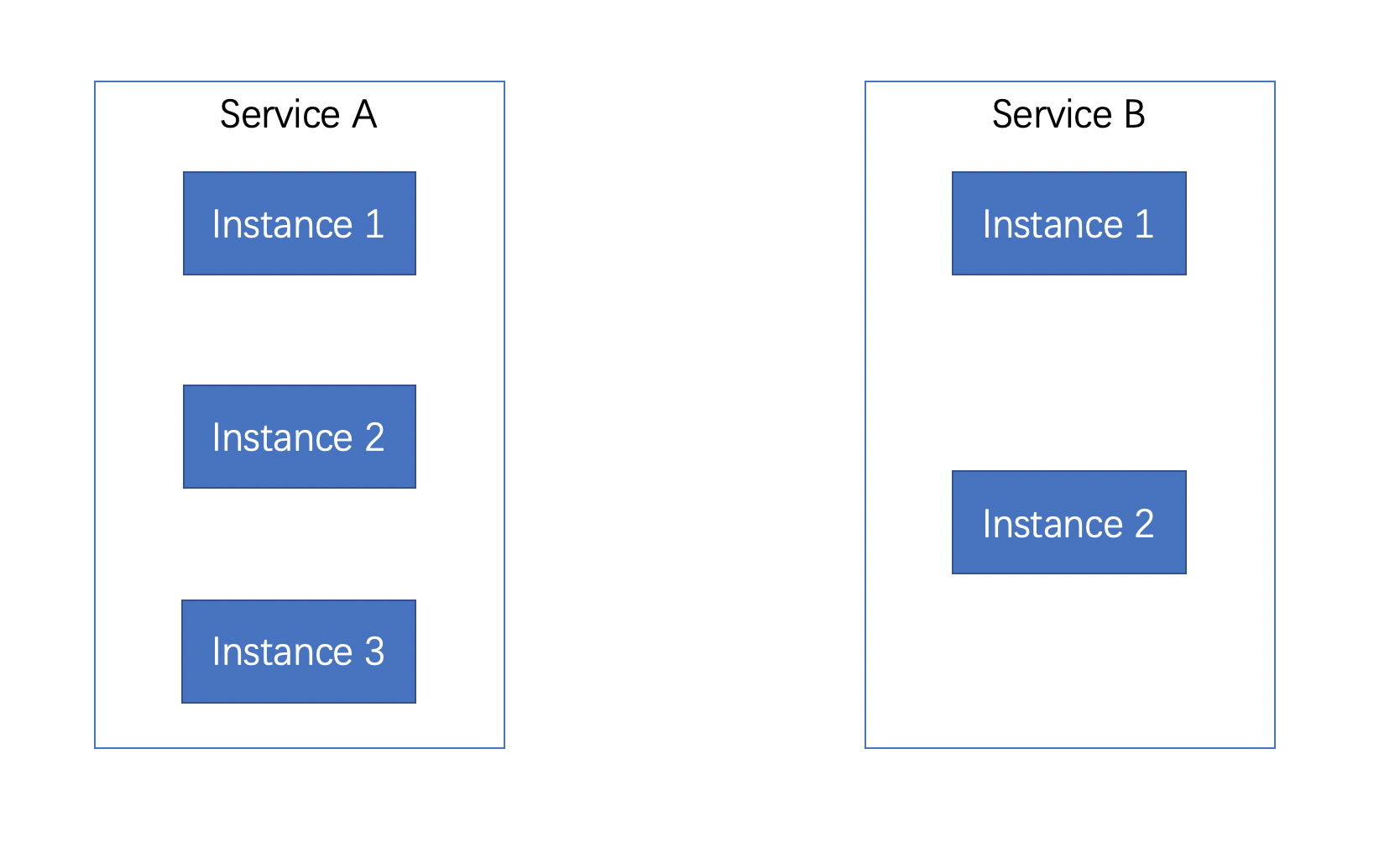

   In the new box, in default, we should show all instances of client and
server, like this

![image](https://user-images.githubusercontent.com/5441976/70400672-05d4b080-1a67-11ea-8e04-fd9870929e37.png)

   Then we could click the any client instance and get the dependency server
instance relationship. The line could be clicked like service topology line,

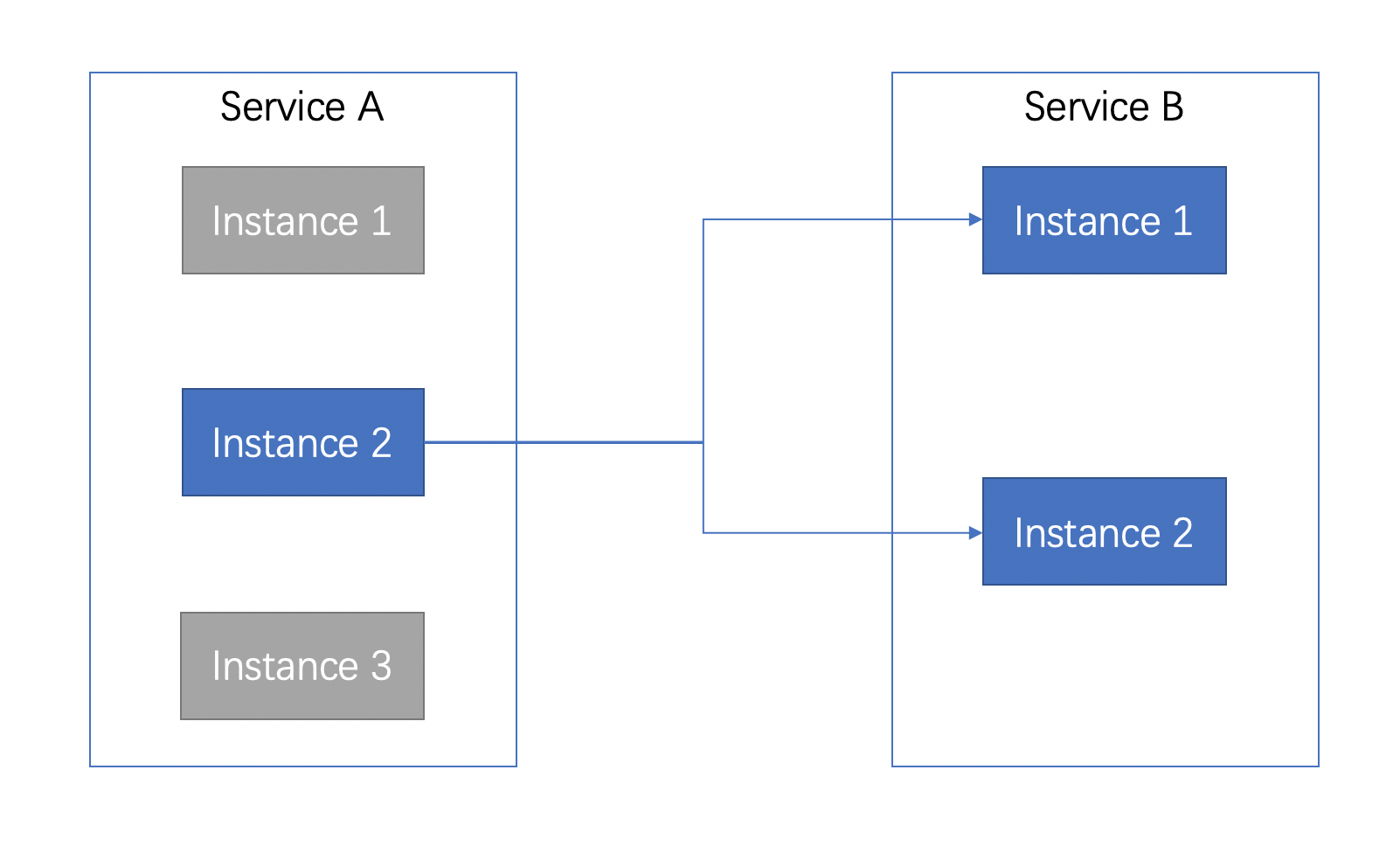

and get following metrics of them

![image](https://user-images.githubusercontent.com/5441976/70400691-200e8e80-1a67-11ea-9aa0-f24edbe79fd8.png)

   OAL of metrics, nearly as same as relationship metrics of service level. You
should provide client/server side switch too.
   ```
   service_instance_relation_client_cpm =
from(ServiceInstanceRelation.*).filter(detectPoint == DetectPoint.CLIENT).cpm();
   service_instance_relation_server_cpm =
from(ServiceInstanceRelation.*).filter(detectPoint == DetectPoint.SERVER).cpm();
   service_instance_relation_client_call_sla =
from(ServiceInstanceRelation.*).filter(detectPoint ==
DetectPoint.CLIENT).percent(status == true);
   service_instance_relation_server_call_sla =
from(ServiceInstanceRelation.*).filter(detectPoint ==
DetectPoint.SERVER).percent(status == true);
   service_instance_relation_client_resp_time =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.CLIENT).longAvg();
   service_instance_relation_server_resp_time =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.SERVER).longAvg();
   service_instance_relation_client_p99 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.CLIENT).p99(10);
   service_instance_relation_server_p99 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.SERVER).p99(10);
   service_instance_relation_client_p95 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.CLIENT).p95(10);
   service_instance_relation_server_p95 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.SERVER).p95(10);
   service_instance_relation_client_p90 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.CLIENT).p90(10);
   service_instance_relation_server_p90 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.SERVER).p90(10);
   service_instance_relation_client_p75 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.CLIENT).p75(10);
   service_instance_relation_server_p75 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.SERVER).p75(10);
   service_instance_relation_client_p50 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.CLIENT).p50(10);
   service_instance_relation_server_p50 =
from(ServiceInstanceRelation.latency).filter(detectPoint ==
DetectPoint.SERVER).p50(10);
   ```

   And also you could click server side instance.

![image](https://user-images.githubusercontent.com/5441976/70400772-83002580-1a67-11ea-8a05-fe8473f7c017.png)



----------------------------------------------------------------
