hanahmily commented on issue #4877:
URL: https://github.com/apache/skywalking/issues/4877#issuecomment-641320435

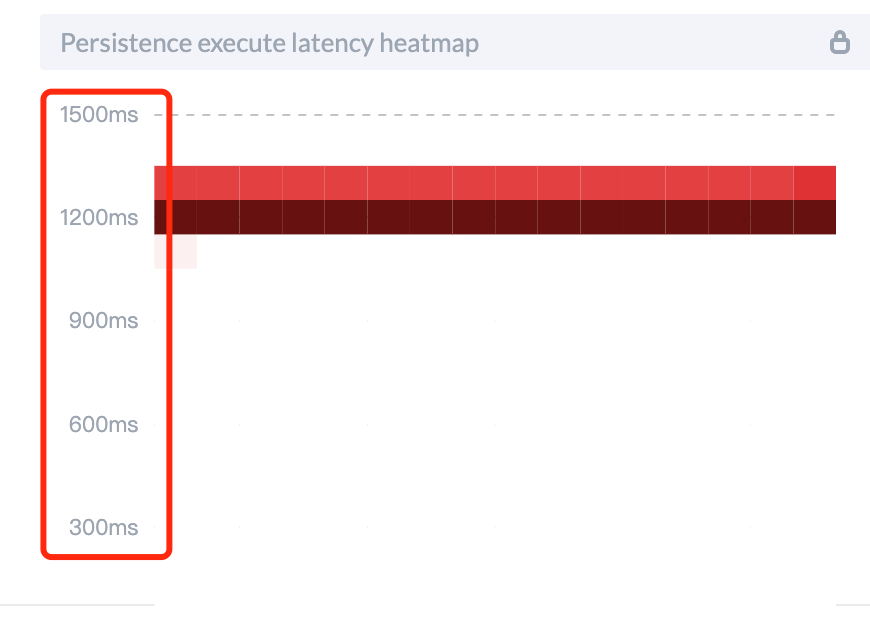

The Heatmap chart
> What I heart from @hanahmily there are two bugs.
>
> 1. UI doesn't match the Labeled in the labeled value query, it is likely
referring the order, which is not right. Please recheck. The order of response
value may not be as same as the request. In response dataset, it includes the
labels.
It's a bug from OAP graphql service.
> 2. Heatmap doesn't use the bucket `min` and `max` to indicate its range,
it is likely using the `index * 100`?(guessing). Please recheck and correct
this.
The data from OAP
```json
{"data":{"readHeatMap":{"values":[{"id":"202006091345_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,1,20,10,0]},{"id":"202006091346_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091347_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091348_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091349_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091350_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091351_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091352_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091353_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091354_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091355_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091356_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091357_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091358_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091359_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,10,0]},{"id":"202006091400_b2FwLXNlcnZlcg==.1_bG9jYWxob3N0OjEyMzQ=","values":[0,0,0,0,0,0,0,0,0,0,0,0,21,11,0]}],"buckets":[{"min":"0","max":"5"},{"min":"5","max":"10"},{"min":"10","max":"25"},{"min":"25","max":"50"},{"min":"50","max":"75"},{"min":"75","max":"100"},{"min":"100","max":"250"},{"min":"250","max":"500"},{"min":"500","max":"750"},{"min":"750","max":"1000"},{"min":"1000","max":"2500"},{"min":"2500","max":"5000"},{"min":"5000","max":"7500"},{"min":"7500","max":"10000"},{"min":"10000","max":"infinite+"}]}}}
```
----------------------------------------------------------------
