janecms opened a new issue #5307:
URL: https://github.com/apache/skywalking/issues/5307
Please answer these questions before submitting your issue.
- Why do you submit this issue?
- [ ] Question or discussion
- - [✔️ ] Bug
- [ ] Requirement
- [ ] Feature or performance improvement
___
### Bug
- Which version of SkyWalking, OS and JRE?
1.spring-cloud-starter-gateway-2.1.5.RELEASE
2.java version "1.8.0_141"
3.skywalking 8.1.0
- What happened?
Use an interface'/user-center/query' of the jmeter pressure measurement
gateway, and the function is provided by the service'user-center'.
Stress test effect: 8 times of ‘More than 300 spans required to create’
error occurred at 10,000 times. As an additional note, the abnormal rate
reached 89% due to too frequent calls.
jmeter report:
**The Error stack detail :**
`WARN 2020-08-13 11:13:12:730 reactor-http-nio-5 TracingContext : More than
300 spans required to create
java.lang.RuntimeException: Shadow tracing context. Thread dump
at
org.apache.skywalking.apm.agent.core.context.TracingContext.isLimitMechanismWorking(TracingContext.java:562)
at
org.apache.skywalking.apm.agent.core.context.TracingContext.createLocalSpan(TracingContext.java:297)
at
org.apache.skywalking.apm.agent.core.context.ContextManager.createLocalSpan(ContextManager.java:102)
at
org.apache.skywalking.apm.plugin.spring.cloud.gateway.v21x.NettyRoutingFilterInterceptor.beforeMethod(NettyRoutingFilterInterceptor.java:40)
at
org.apache.skywalking.apm.agent.core.plugin.interceptor.enhance.InstMethodsInterWithOverrideArgs.intercept(InstMethodsInterWithOverrideArgs.java:75)
at
org.springframework.cloud.gateway.filter.NettyRoutingFilter.filter(NettyRoutingFilter.java)
at
org.springframework.cloud.gateway.handler.FilteringWebHandler$GatewayFilterAdapter.filter(FilteringWebHandler.java:138)
at
org.springframework.cloud.gateway.filter.OrderedGatewayFilter.filter(OrderedGatewayFilter.java:44)
at
org.springframework.cloud.gateway.handler.FilteringWebHandler$DefaultGatewayFilterChain.lambda$filter$0(FilteringWebHandler.java:118)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:44)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at
reactor.core.publisher.MonoPeekTerminal.subscribe(MonoPeekTerminal.java:61)
at reactor.core.publisher.Mono.subscribe(Mono.java:3879)
at reactor.core.publisher.FluxRetryWhen.subscribe(FluxRetryWhen.java:86)
at reactor.core.publisher.MonoRetryWhen.subscribe(MonoRetryWhen.java:50)
at
reactor.core.publisher.MonoRepeatWhen.subscribe(MonoRepeatWhen.java:79)
at
reactor.core.publisher.MonoSourceFlux.subscribe(MonoSourceFlux.java:47)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at
reactor.core.publisher.MonoPeekTerminal.subscribe(MonoPeekTerminal.java:61)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.Mono.subscribe(Mono.java:3879)
at
reactor.core.publisher.MonoIgnoreThen$ThenIgnoreMain.drain(MonoIgnoreThen.java:172)
at
reactor.core.publisher.MonoIgnoreThen.subscribe(MonoIgnoreThen.java:56)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoPeek.subscribe(MonoPeek.java:71)
at reactor.core.publisher.Mono.subscribe(Mono.java:3879)
at
reactor.core.publisher.MonoIgnoreThen$ThenIgnoreMain.drain(MonoIgnoreThen.java:172)
at
reactor.core.publisher.MonoIgnoreThen.subscribe(MonoIgnoreThen.java:56)
at
reactor.core.publisher.MonoPeekFuseable.subscribe(MonoPeekFuseable.java:74)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at
reactor.core.publisher.MonoIgnoreThen$ThenIgnoreMain.drain(MonoIgnoreThen.java:153)
at
reactor.core.publisher.MonoIgnoreThen.subscribe(MonoIgnoreThen.java:56)
at reactor.core.publisher.MonoDefer.subscribe(MonoDefer.java:52)
at
reactor.core.publisher.MonoFlatMap$FlatMapMain.onNext(MonoFlatMap.java:150)
at
reactor.core.publisher.FluxSwitchIfEmpty$SwitchIfEmptySubscriber.onNext(FluxSwitchIfEmpty.java:67)
at
reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onNext(FluxMapFuseable.java:121)
at
reactor.core.publisher.FluxContextStart$ContextStartSubscriber.onNext(FluxContextStart.java:103)
at
reactor.core.publisher.FluxContextStart$ContextStartSubscriber.onNext(FluxContextStart.java:103)
at
reactor.core.publisher.FluxMapFuseable$MapFuseableConditionalSubscriber.onNext(FluxMapFuseable.java:287)
at
reactor.core.publisher.FluxFilterFuseable$FilterFuseableConditionalSubscriber.onNext(FluxFilterFuseable.java:331)
at
reactor.core.publisher.Operators$MonoSubscriber.complete(Operators.java:1623)
at
reactor.core.publisher.MonoCollect$CollectSubscriber.onComplete(MonoCollect.java:160)
at
reactor.core.publisher.FluxMap$MapSubscriber.onComplete(FluxMap.java:136)
at
reactor.core.publisher.FluxPeek$PeekSubscriber.onComplete(FluxPeek.java:252)
at
reactor.core.publisher.FluxMap$MapSubscriber.onComplete(FluxMap.java:136)
at
reactor.netty.channel.FluxReceive.terminateReceiver(FluxReceive.java:427)
at reactor.netty.channel.FluxReceive.drainReceiver(FluxReceive.java:211)
at
reactor.netty.channel.FluxReceive.onInboundComplete(FluxReceive.java:369)
at
reactor.netty.channel.ChannelOperations.onInboundComplete(ChannelOperations.java:369)
at
reactor.netty.http.server.HttpServerOperations.onInboundNext(HttpServerOperations.java:496)
at
reactor.netty.channel.ChannelOperationsHandler.channelRead(ChannelOperationsHandler.java:92)
at
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:379)
at
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:365)
at
io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:357)
at
reactor.netty.http.server.HttpTrafficHandler.channelRead(HttpTrafficHandler.java:214)
at
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:379)
at
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:365)
at
io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:357)
at
io.netty.channel.CombinedChannelDuplexHandler$DelegatingChannelHandlerContext.fireChannelRead(CombinedChannelDuplexHandler.java:436)
at
io.netty.handler.codec.ByteToMessageDecoder.fireChannelRead(ByteToMessageDecoder.java:324)
at
io.netty.handler.codec.ByteToMessageDecoder.channelRead(ByteToMessageDecoder.java:296)
at
io.netty.channel.CombinedChannelDuplexHandler.channelRead(CombinedChannelDuplexHandler.java:251)
at
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:379)
at
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:365)
at
io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:357)
at
io.netty.channel.DefaultChannelPipeline$HeadContext.channelRead(DefaultChannelPipeline.java:1410)
at
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:379)
at
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:365)
at
io.netty.channel.DefaultChannelPipeline.fireChannelRead(DefaultChannelPipeline.java:919)
at
io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:163)
at
io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:714)
at
io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:650)
at
io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:576)
at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:493)
at
io.netty.util.concurrent.SingleThreadEventExecutor$4.run(SingleThreadEventExecutor.java:989)
at
io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)
at
io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
at java.lang.Thread.run(Unknown Source)`

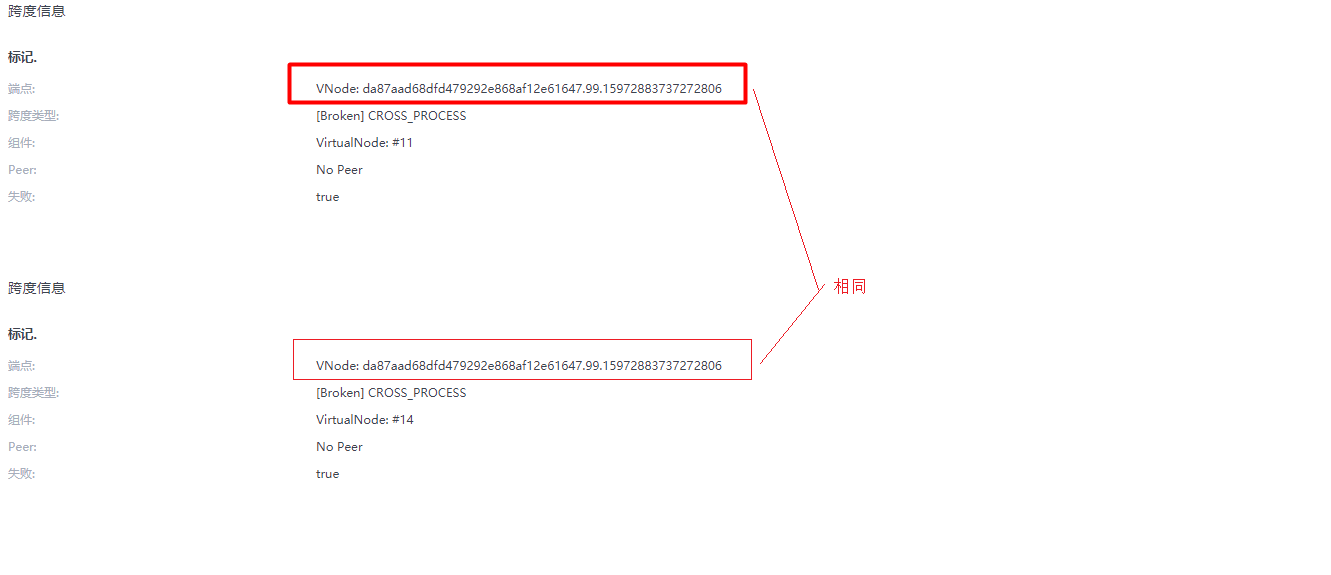

Checked the ui trace, it feels a bit strange。
Comparing several red entries, we found:
The endpoint information is consistent: "VNode:
da87aad68dfd479292e868af12e61647.99.15972883737272806";
The component information is different. As shown
----------------------------------------------------------------
