### SUMMARY
Funnel Chart segment labels currently apply a 1px white `textBorder`, added
by #31590 (Ant Design v5 overhaul) when the label color moved from
`theme.colors.grayscale.dark2` to `theme.colorText`. On lighter segments the
white outline overwhelms the thin dark text and labels are nearly illegible.
This PR drops the `textBorder` so the theme-provided text color stands on its
own against the segment fill.
```diff
const defaultLabel = {
formatter,
show: showLabels,
color: theme.colorText,
- textBorderColor: theme.colorBgBase,
- textBorderWidth: 1,
};
```
Pixel-sampled the rendered canvas to confirm the perceived "white" labels
are actually dark text (`rgba(0,0,0,0.88)`) surrounded by a white 1px outline
that wins the local contrast on yellow / light segments.

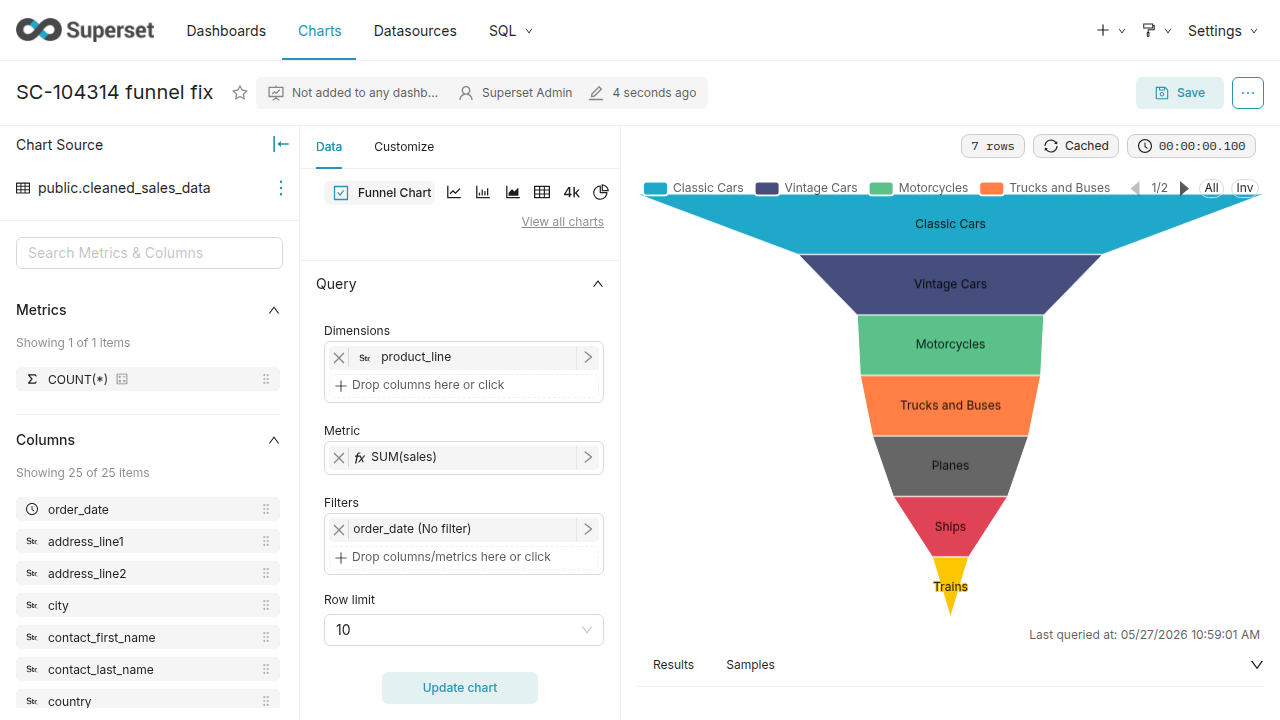

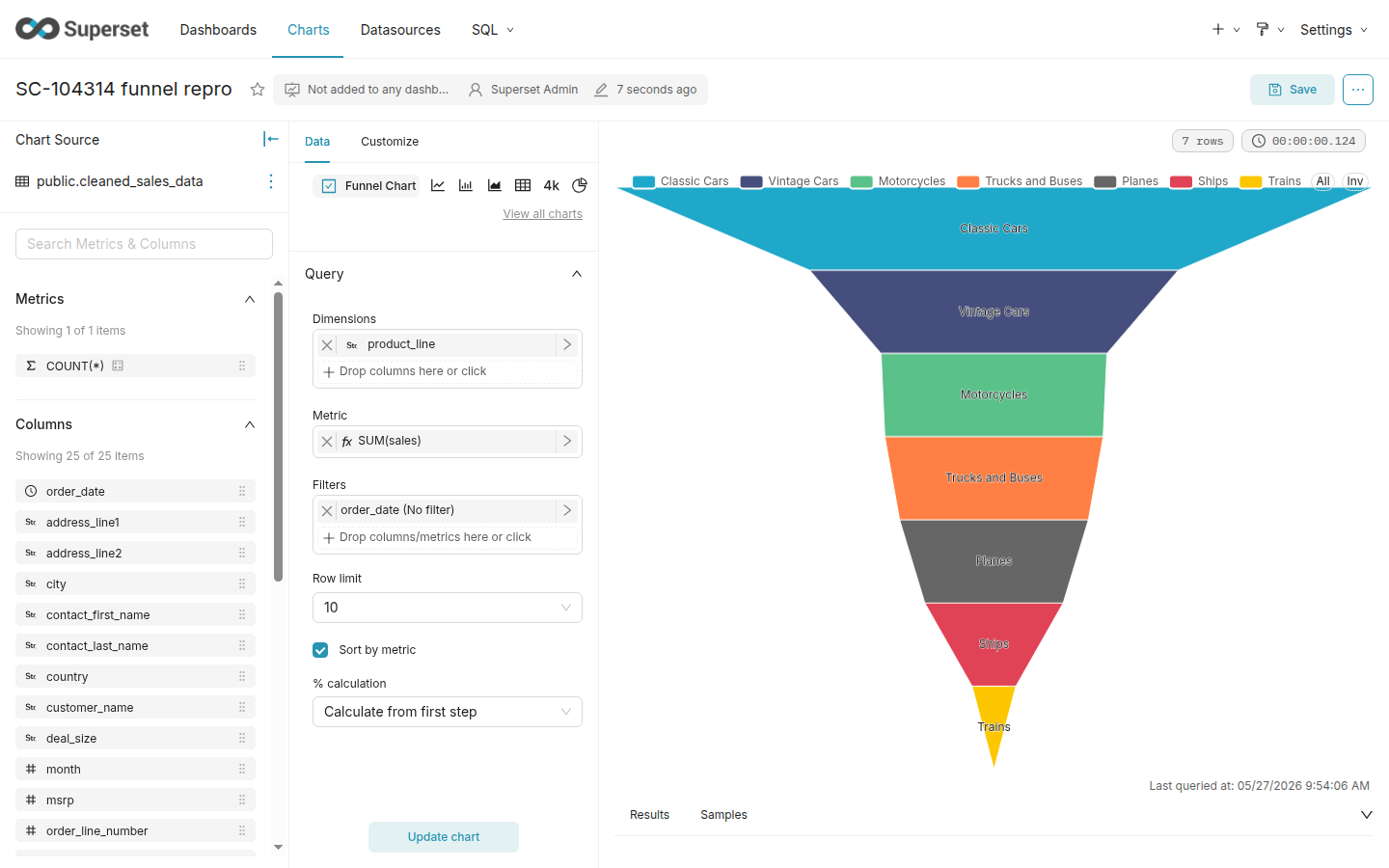

### BEFORE/AFTER SCREENSHOTS OR ANIMATED GIF
Funnel Chart on `cleaned_sales_data` with `product_line` + `SUM(sales)`, row
limit 10.
| Before | After |
|---|---|
|  |
 |
### TESTING INSTRUCTIONS
1. Open a Funnel Chart in Explore with a string dimension and a numeric
metric (e.g. `product_line` + `SUM(sales)` on `cleaned_sales_data`).
2. Configure categories that produce a mix of light- and dark-colored
segments.
3. Verify each segment label is readable against its background, including
yellow / light-colored segments.
Unit coverage:
`plugins/plugin-chart-echarts/test/Funnel/transformProps.test.ts` adds a test
asserting `defaultLabel` does not set `textBorderColor` / `textBorderWidth`.
### ADDITIONAL INFORMATION
- [ ] Has associated issue:
- [ ] Required feature flags:
- [x] Changes UI
- [ ] Includes DB Migration (follow approval process in
[SIP-59](https://github.com/apache/superset/issues/13351))
- [ ] Introduces new feature or API
- [ ] Removes existing feature or API
--
