deepujain opened a new pull request, #44557: URL: https://github.com/apache/superset/pull/44557

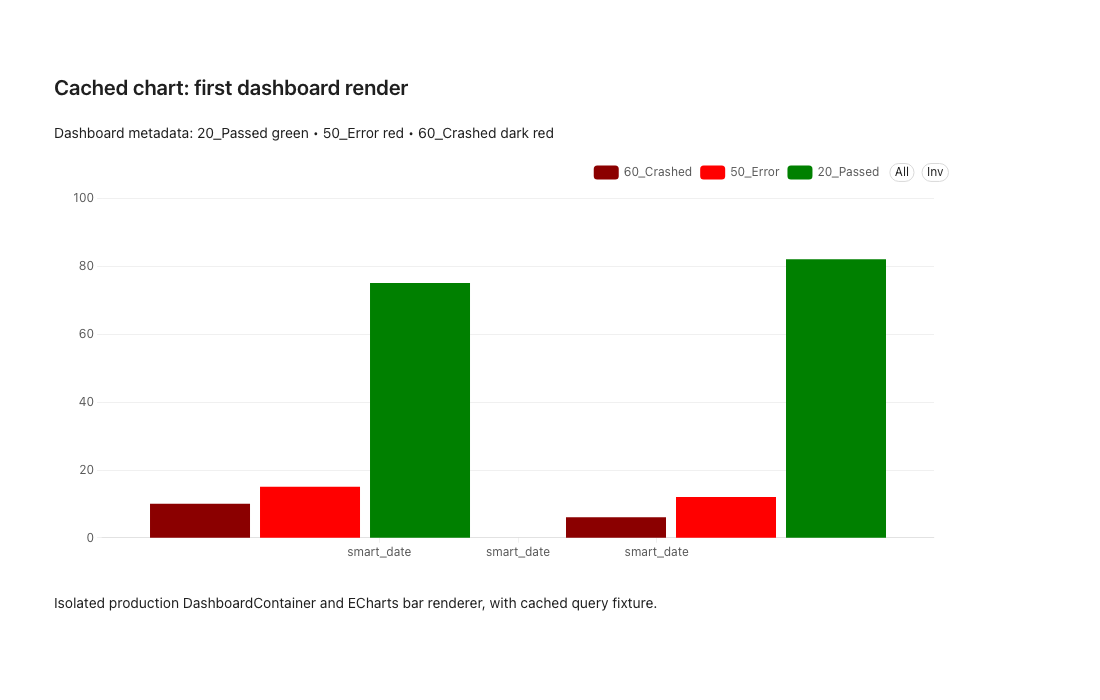

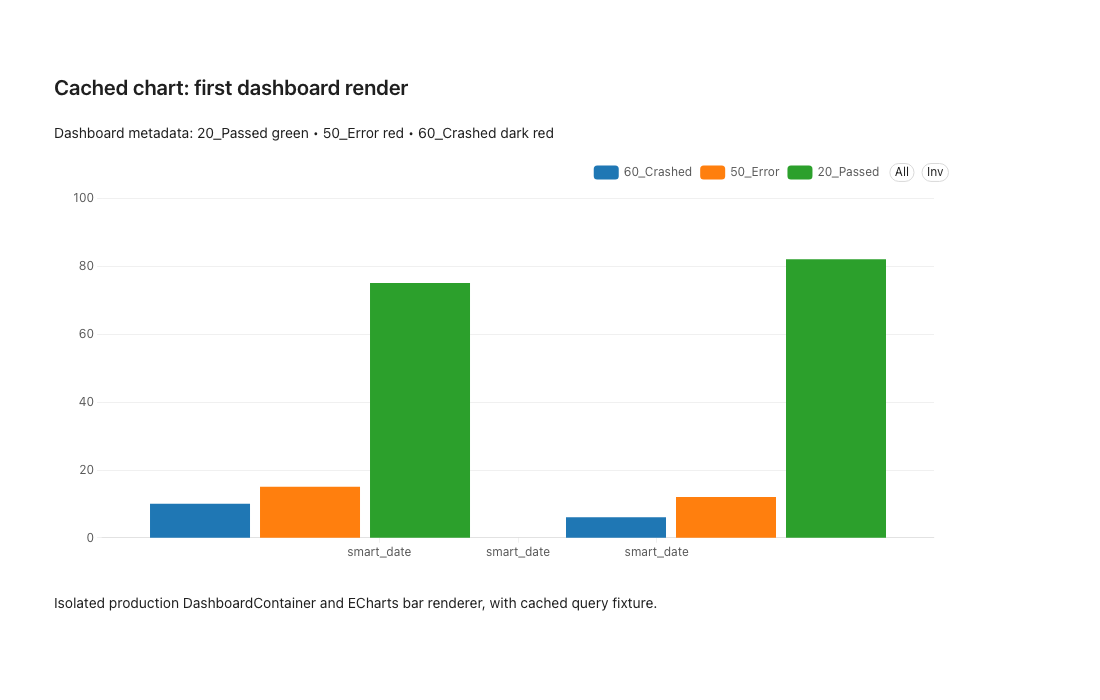

### SUMMARY A chart with cached data can create its color scale during the dashboard's first render, before the dashboard effect installs `label_colors`. Its initial output then keeps palette colors even though the metadata specifies custom colors. Keep the grid unmounted until that dashboard's color initialization has run. Track the initialized dashboard ID so navigating to another dashboard also waits for its colors. The existing color-selection and synchronization algorithms stay unchanged. Fixes #40708. ### BEFORE/AFTER SCREENSHOTS OR ANIMATED GIF The screenshots use the production `DashboardContainer`, ECharts Timeseries transform, and ECharts renderer in an isolated Storybook fixture with an already-cached query. They demonstrate initial rendering, not the reporter's authenticated deployment. The metadata requests dark red for `60_Crashed`, red for `50_Error`, and `#008000` for `20_Passed`. Before: the first render uses palette colors.  After: the same fixture uses the metadata colors on its first render.  [Fixture and recorded browser series colors](https://github.com/deepujain/superset/tree/evidence-40708-initial-colors-20260923). ### TESTING INSTRUCTIONS Run the component and dashboard action suites: ```bash cd superset-frontend npm run test -- --maxWorkers=2 src/dashboard/components/DashboardBuilder/DashboardContainer.test.tsx src/dashboard/actions/dashboardState.test.ts ``` 59 tests pass. Four regression cases fail on unmodified `61fffbe0c0`: first color consumption with and without StrictMode, plus navigation that reuses or changes the color namespace. The tests use the real color initialization action and namespace. `npm run plugins:build` and staged-file `pre-commit run` also pass, including frontend type checking. For browser reproduction, follow the linked fixture README and open a fresh page for each version. The baseline's ECharts series colors are `#1f77b4`, `#ff7f0e`, and `#2ca02c`; the patched version produces `#8b0000`, `#ff0000`, and `#008000` without a legend click or refresh. The grid now mounts one effect later; this does not add a network wait. Full application E2E coverage was not run. ### ADDITIONAL INFORMATION - [x] Has associated issue: #40708 - [ ] Required feature flags: - [x] Changes UI - [ ] Includes DB Migration (follow approval process in [SIP-59](https://github.com/apache/superset/issues/13351)) - [ ] Migration is atomic, supports rollback & is backwards-compatible - [ ] Confirm DB migration upgrade and downgrade tested - [ ] Runtime estimates and downtime expectations provided - [ ] Introduces new feature or API - [ ] Removes existing feature or API -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected] --------------------------------------------------------------------- To unsubscribe, e-mail: [email protected] For additional commands, e-mail: [email protected]
