"Roberto Spadim" <[email protected]> wrote in message news:CABYL=trm5bofn+uoz-zppds9pf7ltdwdw5cdeebulfc2hxa...@mail.gmail.com... > uhmm, could you send a serial dump ? or something to explain in bytes > what´s happening?

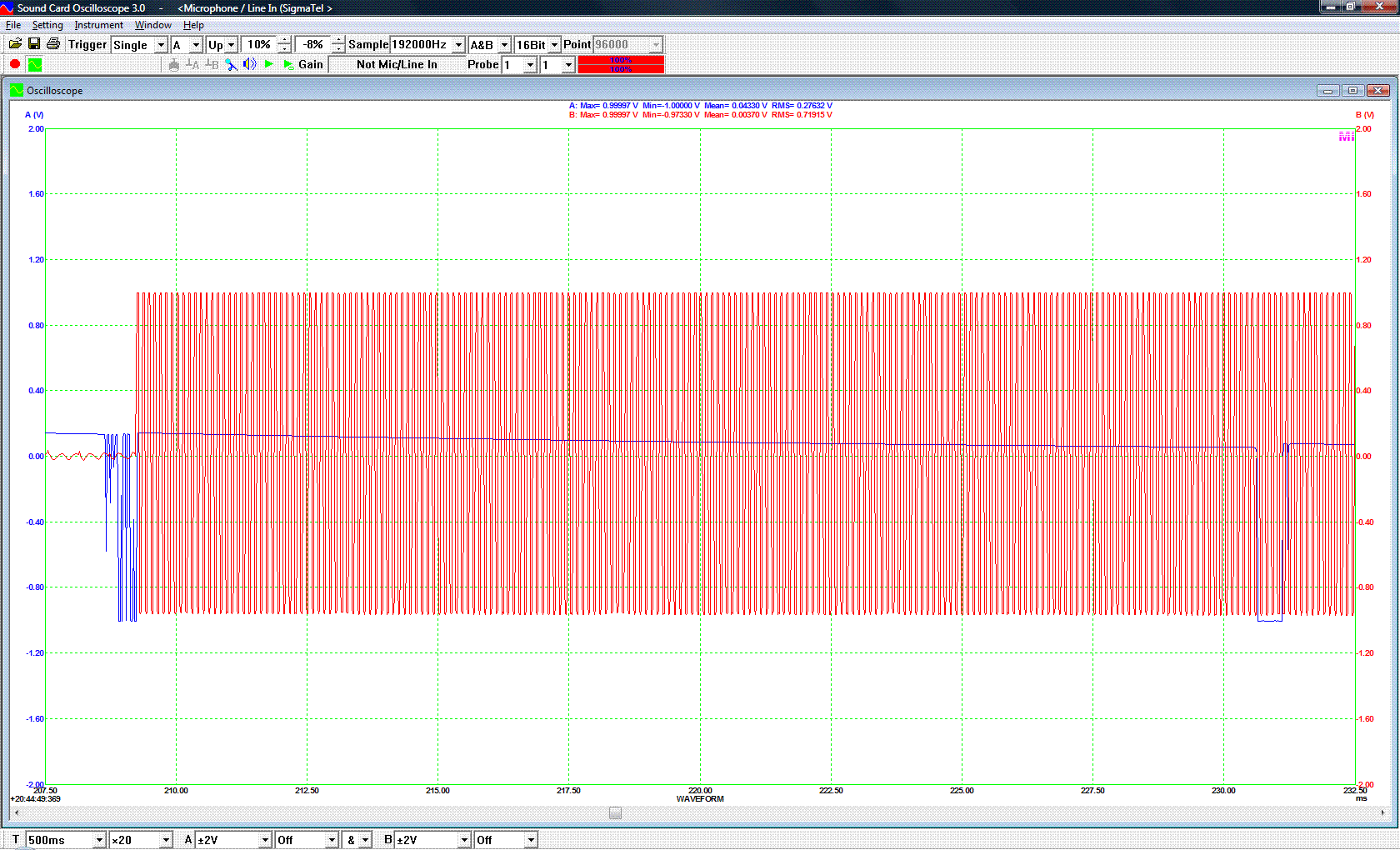

Thanks for the quick replies. I think that Eloy confirmed what I was seeing from him looking at the code. Anyway I uploaded a picture from using some scope software that shows the behaviour (just ordered a Saleae analyzer from Microchip which will be rather better). http://www.ioncube.com/images/ds2431.png The blue trace activity to the left shows the last data byte of the write scratchpad command received from the master, and later the reset pulse from the master that precedes the following read scratchpad command. The red trace activity is my slave toggling a pin just as an indicator for the scope after it read the last data byte of the write command, and where it was expecting to receive read timeslots so that it could send back the ~CRC16. The flowcharts on the datasheet show nicely what the device is supposed to receive and send back. Nick ------------------------------------------------------------------------------ All the data continuously generated in your IT infrastructure contains a definitive record of customers, application performance, security threats, fraudulent activity, and more. Splunk takes this data and makes sense of it. IT sense. And common sense. http://p.sf.net/sfu/splunk-novd2d _______________________________________________ Owfs-developers mailing list [email protected] https://lists.sourceforge.net/lists/listinfo/owfs-developers
