Hello Prom experts,
I am trying to use Prometheus sharding feature.
But I cannot query metrics in all of the leaf Proms. Is this a bug or
configuration issue?
Could you please help explain? Thanks a lot in advance!
Prom image is prom/prometheus:v2.13.1
The diagram is as below:
4 containers are running in a single host, with 3 leaf Proms listening on
9090, 9091, 9092 respectively, and one federated prom listening on 19090.
I meant the data of node exporter(localhost:9100/metrics) are split into
three shards, which are scraped by Prom1, Prom2, Prom3, and then all the
metrics are federated in FederatedProm container. This is a very typical
use case for Prom sharding.
Prom1(localhost:9090) ----->
Prom2(localhost:9091)----- > FederatedProm(localhost:19090)
Prom3(localhost:9092) ----->
And a node exporter is listening on localhost:9100 as metric data source.
Each leaf Prom's configurations are as below:
Prom1:
global:
scrape_interval: 1m
scrape_timeout: 10s
evaluation_interval: 10s
external_labels:
slave: 0
scrape_configs:
- job_name: 'local_prometheus'
static_configs:
- targets: ['localhost:9090']
- job_name: 'node_exporter'
# metrics_path defaults to '/metrics'
# scheme defaults to 'http'.
static_configs:
- targets: ['localhost:9100']
relabel_configs:
- source_labels: [__address__]
modulus: 3 # 3 slaves
target_label: __tmp_hash
action: hashmod
- source_labels: [__tmp_hash]
regex: ^0$ # This is the 1st slave
action: keep
Prom2:
global:
scrape_interval: 1m
scrape_timeout: 10s
evaluation_interval: 10s
external_labels:
slave: 1
scrape_configs:
- job_name: 'local_prometheus'
static_configs:
- targets: ['localhost:9090']
- job_name: 'node_exporter'
# metrics_path defaults to '/metrics'
# scheme defaults to 'http'.
static_configs:
- targets: ['localhost:9100']
relabel_configs:
- source_labels: [__address__]
modulus: 3 # 3 slaves
target_label: __tmp_hash
action: hashmod
- source_labels: [__tmp_hash]
regex: ^1$ # This is the 2nd slave
action: keep
Prom3 config:
global:
scrape_interval: 1m
scrape_timeout: 10s
evaluation_interval: 10s
external_labels:
slave: 2
scrape_configs:
- job_name: 'local_prometheus'
static_configs:
- targets: ['localhost:9090']
- job_name: 'node_exporter'
# metrics_path defaults to '/metrics'
# scheme defaults to 'http'.
static_configs:
- targets: ['localhost:9100']
relabel_configs:
- source_labels: [__address__]
modulus: 3 # 3 slaves
target_label: __tmp_hash
action: hashmod
- source_labels: [__tmp_hash]
regex: ^2$ # This is the third slave
action: keep
=================================

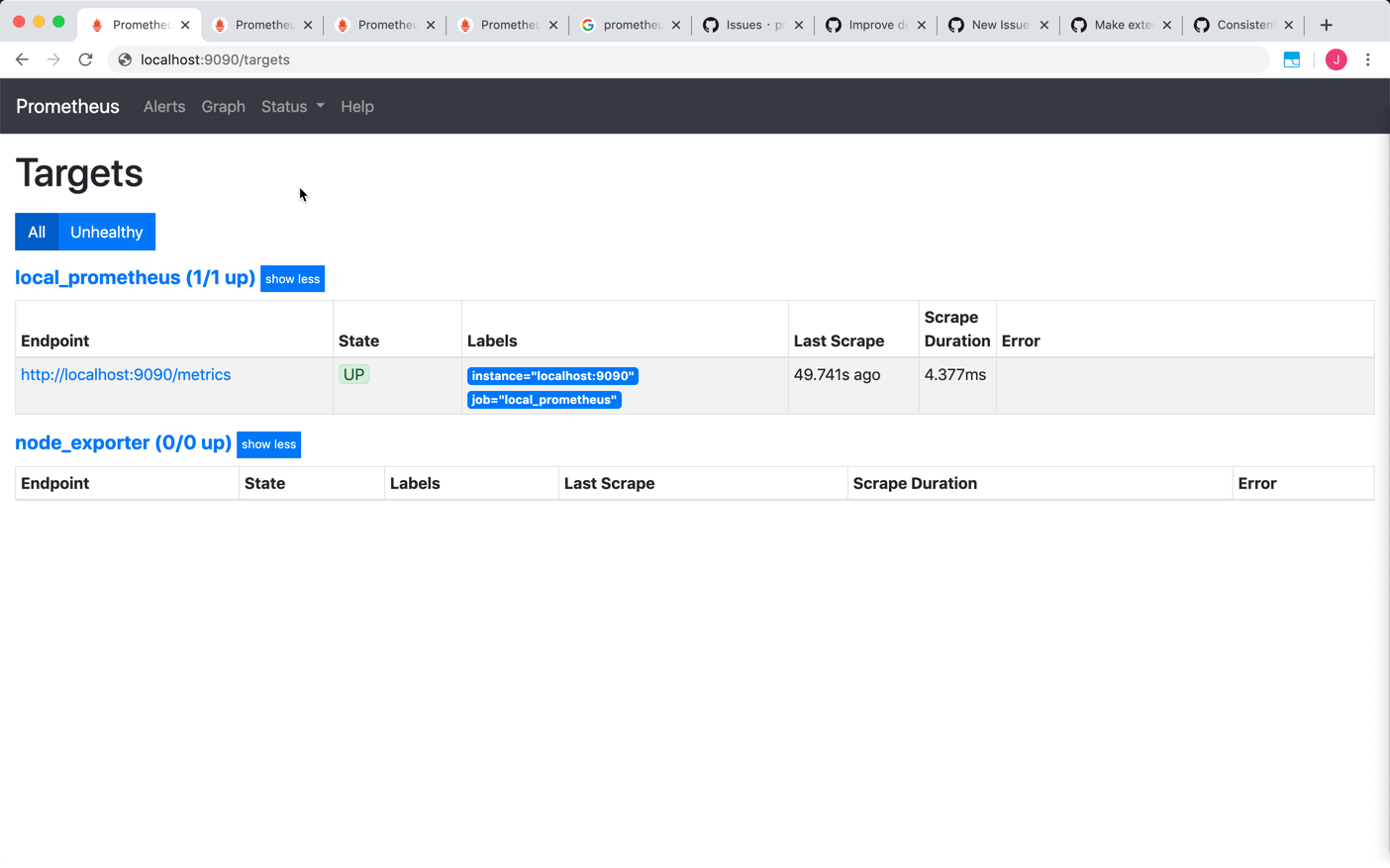

Prom1's console:
[image: image]
<https://user-images.githubusercontent.com/6135084/76645515-1af43a80-6594-11ea-9145-56c3483ee575.png>
[image: image]
<https://user-images.githubusercontent.com/6135084/76646562-27799280-6596-11ea-8d94-ca69eb045d91.png>
See the "Dropped", it is very confusing...
Prom2's console:
[image: image]
<https://user-images.githubusercontent.com/6135084/76645563-37907280-6594-11ea-9bc5-020376a51815.png>

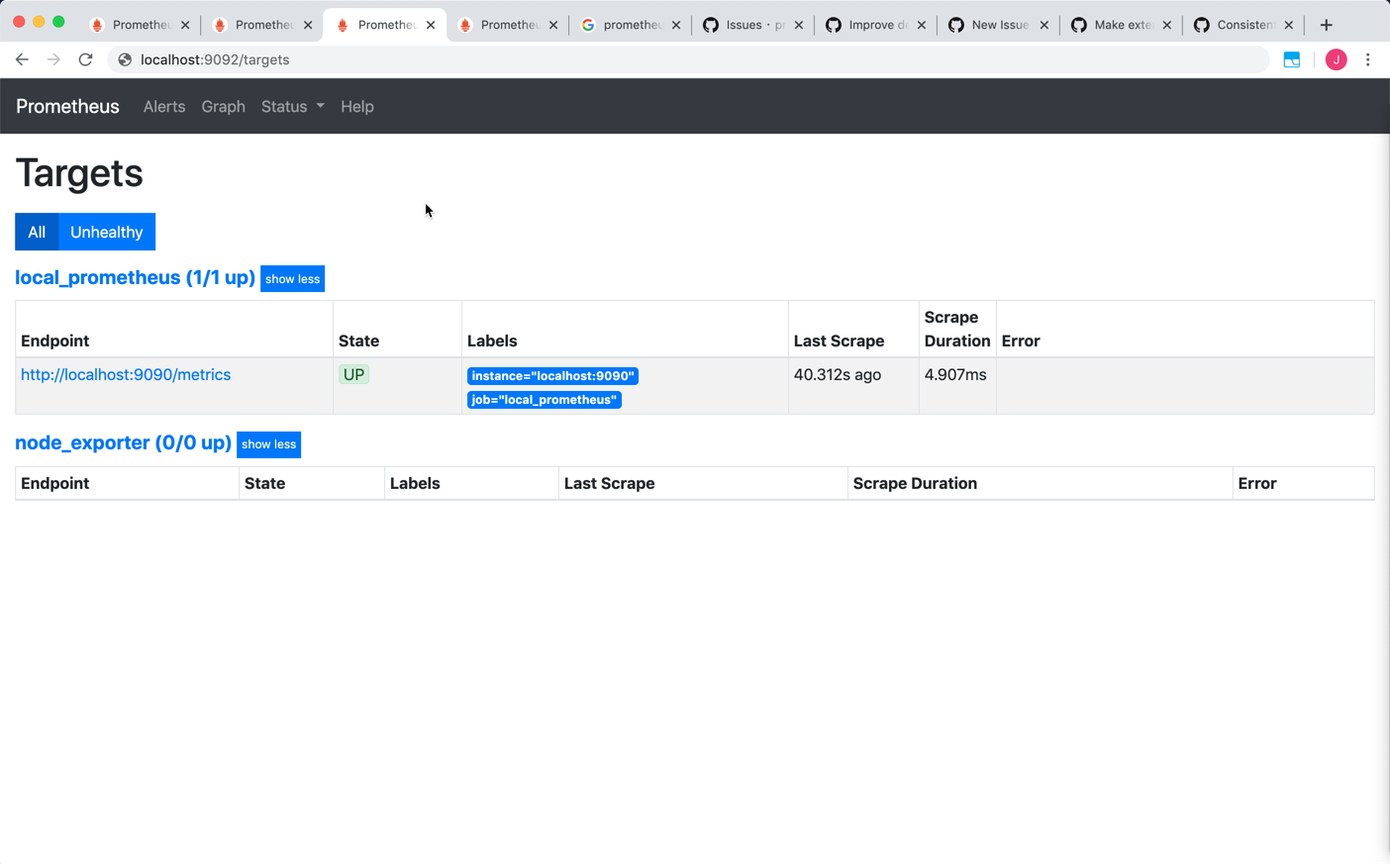

Prom3's console:
[image: image]
<https://user-images.githubusercontent.com/6135084/76645633-5989f500-6594-11ea-8e2a-022f37ea5067.png>
So my question is: why can I find ONLY active target for node-exporter job
data in console of Prom2, but find there is no active target for
node-exporter job in console of Prom1 and Prom3?
My federated Prom's config is as below:
global:
scrape_interval: 1m
scrape_timeout: 10s
evaluation_interval: 10s
scrape_configs:
- job_name: 'federated_node_exporter'
# metrics_path defaults to '/metrics'
metrics_path: /federate
# scheme defaults to 'http'.
honor_labels: true
honor_timestamps: true
params:
match[]:
- node_disk_reads_completed_total
- node_cpu_seconds_total
static_configs:
- targets:
- 'localhost:9090'
- 'localhost:9091'
- 'localhost:9092'

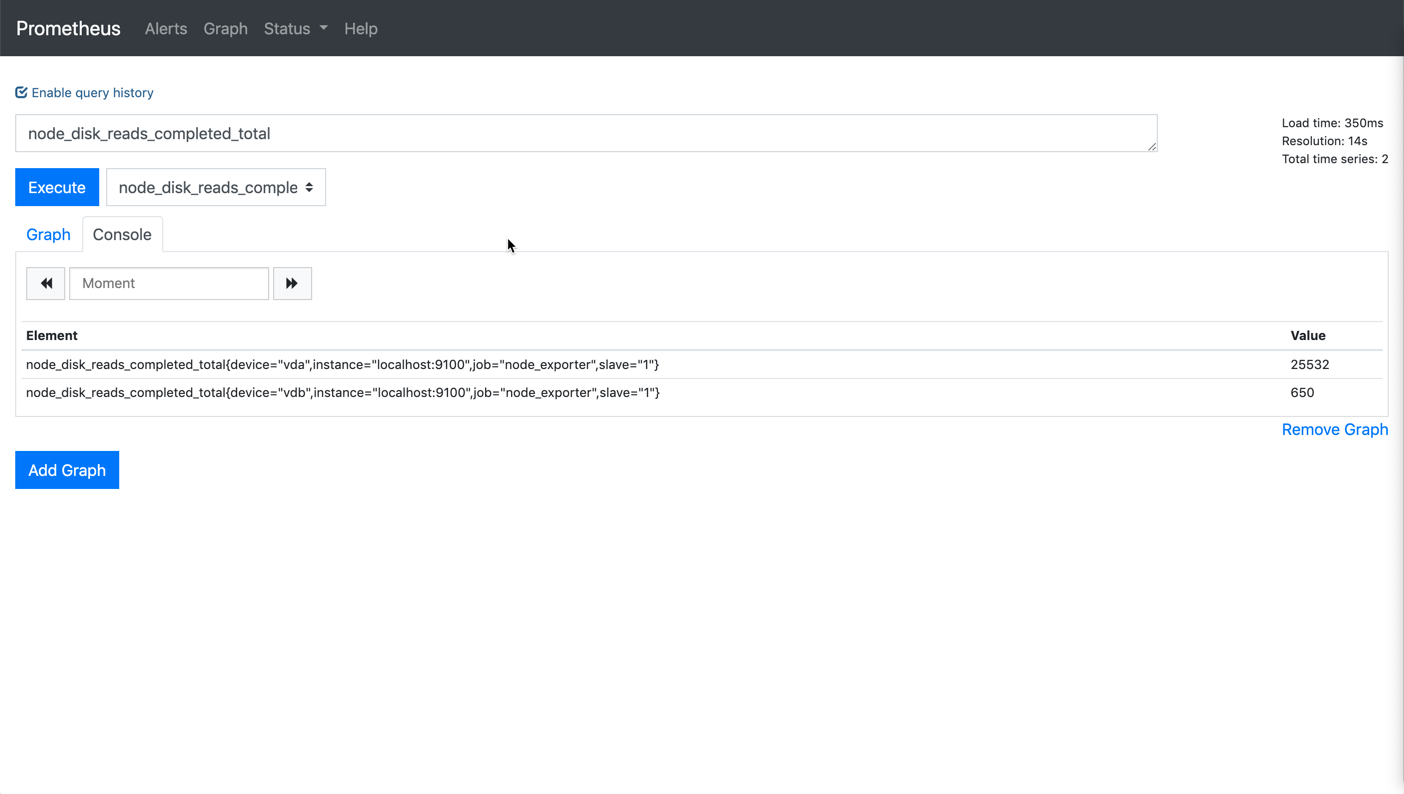

And why do I see metrics from ONLY Prom2, but NO metrics from Prom1 and
Prom3?
[image: image]
<https://user-images.githubusercontent.com/6135084/76646274-a7532d00-6595-11ea-9a4e-83b35c40bde2.png>
Thanks a lot in advance!
Nice Regards
Casper Liu
--
