Thanks Luke,

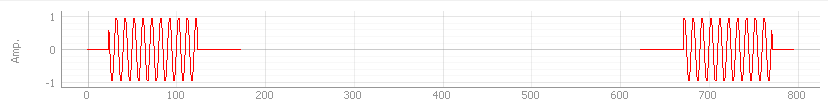

I thought the same way. But, it doesn't seem right, the reason is if user drag one of the view box, then range of individual x axis will change. Also, what if I have n number of waveform. So, I come up with idea for instance, instead of giving just data of y-axis here I also provide x-axis data as well. In additional, I reduce the sample for delay, e.g if I have 500 points for delay, instead of using all I usage just 150 points where I give value of 25 points from start, 25 points from end and 100 points for NaN value (for showing gap on graph). However, it doesn’t create any effect on pyqtgraph, and plot it in same scale. After that I exported the .csv file and plot it in excel, and guess what I got exact same plot which I expected. Here, I attached my .csv file and snippets of pyqtgraph and excel output graph. Now, please suggest me how can I get plot which just show data points from my array and ignore remaining points? Also, can you tell me how can I set interval between x - axis points? <https://lh3.googleusercontent.com/-FS1T4uya4KQ/WSijPCNFaQI/AAAAAAAAAaY/lyBMG-InVbA2zrRHHBb0bg8NIXlZ7PfMQCLcB/s1600/Captureg1.PNG> *Sample of PYQTGRAPH * <https://lh3.googleusercontent.com/-Ognr6A-2THI/WSijSYesv6I/AAAAAAAAAac/aTbX4PjT8tEsVB-zAXrE3D3M52qOwJsHgCLcB/s1600/Captureg2.PNG> *Sample of Excel Plot 1* <https://lh3.googleusercontent.com/-mqAyKKp4a1Y/WSijXHmoY5I/AAAAAAAAAag/ph5cbEyINwQifqQA53_kfl0uMeseHV2NgCLcB/s1600/Captureg3.PNG> *Sample of Excel Plot 2 * On Friday, 26 May 2017 17:00:34 UTC-4, Luke Campagnola wrote: > > Interesting! > The first thing that comes to mind is to use two separate viewboxes, like: > > import pyqtgraph as pg > pg.mkQApp() > w = pg.GraphicsLayoutWidget() > w.show() > v1 = w.addPlot() > v2 = w.addPlot() > v2.hideAxis('left') > v2.setYLink(v1) > > offset = 450 > def updateRange(): > xrange1 = v1.vb.viewRange()[0] > xscale = (xrange1[1] - xrange1[0]) / v1.vb.rect().width() > xrange2 = xscale * v2.vb.rect().width() > v2.setXRange(offset, offset+xrange2, padding=0) > > v1.sigXRangeChanged.connect(updateRange) > > d = pg.np.random.normal(size=600) > d[100:500] = 0 > v1.plot(d) > v2.plot(d) > v1.setXRange(0, 200) > > It would take a bit more work to make that look like a seamless plot, > though. > > On Thu, May 25, 2017 at 5:11 PM, raval ishit <[email protected] > <javascript:>> wrote: > >> Hi, >> >> >> I have a question regrading to data plot. I implemented graph same as >> below (Sample graph 1), in which I plotted 2 sine way and delay. I want to >> squeeze the graph now by ignoring delay and represent as dotted line same >> as second graph (Sample graph 2) or I want to change scale of particular >> section of the graph. Is it possible with pyqtgraph? If yes, can you >> suggest me how to doing this? >> >> >> >> >> <https://lh3.googleusercontent.com/-8yRSp8UULvI/WSdyJRiK7nI/AAAAAAAAAZ4/_3pxApPfvJ0JsvMs-dIRhAVC-D2P_tGAwCLcB/s1600/Graph.png> >> >> *Sample Graph 1* >> >> >> <https://lh3.googleusercontent.com/-mmq1QWJLOQk/WSdyMCO3X8I/AAAAAAAAAZ8/i9zySkjmlygO7BfMhK7F4ezrh8Xaq8-0wCLcB/s1600/Graph2.png> >> >> *Sample Graph 2* >> >> -- >> You received this message because you are subscribed to the Google Groups >> "pyqtgraph" group. >> To unsubscribe from this group and stop receiving emails from it, send an >> email to [email protected] <javascript:>. >> To view this discussion on the web visit >> https://groups.google.com/d/msgid/pyqtgraph/68a0303b-8e30-470a-a1b2-7ff445709c36%40googlegroups.com >> >> <https://groups.google.com/d/msgid/pyqtgraph/68a0303b-8e30-470a-a1b2-7ff445709c36%40googlegroups.com?utm_medium=email&utm_source=footer> >> . >> For more options, visit https://groups.google.com/d/optout. >> > > -- You received this message because you are subscribed to the Google Groups "pyqtgraph" group. To unsubscribe from this group and stop receiving emails from it, send an email to [email protected]. To view this discussion on the web visit https://groups.google.com/d/msgid/pyqtgraph/8d9cc493-af88-431c-b484-5200ca25093c%40googlegroups.com. For more options, visit https://groups.google.com/d/optout.
x0000,y0000 0,0 1,0 2,0 3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0 15,0 16,0 17,0 18,0 19,0 20,0 21,0 22,0 23,0 24,0.587785252 25,6.12E-16 26,-0.587785252 27,-0.951056516 28,-0.951056516 29,-0.587785252 30,-7.35E-16 31,0.587785252 32,0.951056516 33,0.951056516 34,0.587785252 35,8.57E-16 36,-0.587785252 37,-0.951056516 38,-0.951056516 39,-0.587785252 40,-9.80E-16 41,0.587785252 42,0.951056516 43,0.951056516 44,0.587785252 45,1.10E-15 46,-0.587785252 47,-0.951056516 48,-0.951056516 49,-0.587785252 50,-1.22E-15 51,0.587785252 52,0.951056516 53,0.951056516 54,0.587785252 55,-2.21E-15 56,-0.587785252 57,-0.951056516 58,-0.951056516 59,-0.587785252 60,-1.47E-15 61,0.587785252 62,0.951056516 63,0.951056516 64,0.587785252 65,5.14E-15 66,-0.587785252 67,-0.951056516 68,-0.951056516 69,-0.587785252 70,-1.71E-15 71,0.587785252 72,0.951056516 73,0.951056516 74,0.587785252 75,5.39E-15 76,-0.587785252 77,-0.951056516 78,-0.951056516 79,-0.587785252 80,-1.96E-15 81,0.587785252 82,0.951056516 83,0.951056516 84,0.587785252 85,-1.47E-15 86,-0.587785252 87,-0.951056516 88,-0.951056516 89,-0.587785252 90,-2.20E-15 91,0.587785252 92,0.951056516 93,0.951056516 94,0.587785252 95,5.88E-15 96,-0.587785252 97,-0.951056516 98,-0.951056516 99,-0.587785252 100,-2.45E-15 101,0.587785252 102,0.951056516 103,0.951056516 104,0.587785252 105,-9.81E-16 106,-0.587785252 107,-0.951056516 108,-0.951056516 109,-0.587785252 110,4.41E-15 111,0.587785252 112,0.951056516 113,0.951056516 114,0.587785252 115,6.37E-15 116,-0.587785252 117,-0.951056516 118,-0.951056516 119,-0.587785252 120,-2.94E-15 121,0.587785252 122,0.951056516 123,0.951056516 124,0 125,0 126,0 127,0 128,0 129,0 130,0 131,0 132,0 133,0 134,0 135,0 136,0 137,0 138,0 139,0 140,0 141,0 142,0 143,0 144,0 145,0 146,0 147,0 148,0 149,0 150,0 151,0 152,0 153,0 154,0 155,0 156,0 157,0 158,0 159,0 160,0 161,0 162,0 163,0 164,0 165,0 166,0 167,0 168,0 169,0 170,0 171,0 172,0 173,nan 174,nan 175,nan 176,nan 177,nan 178,nan 179,nan 180,nan 181,nan 182,nan 183,nan 184,nan 185,nan 186,nan 187,nan 188,nan 189,nan 190,nan 191,nan 192,nan 193,nan 194,nan 195,nan 196,nan 197,nan 198,nan 199,nan 200,nan 201,nan 202,nan 203,nan 204,nan 205,nan 206,nan 207,nan 208,nan 209,nan 210,nan 211,nan 212,nan 213,nan 214,nan 215,nan 216,nan 217,nan 218,nan 219,nan 220,nan 221,nan 222,nan 223,nan 224,nan 225,nan 226,nan 227,nan 228,nan 229,nan 230,nan 231,nan 232,nan 233,nan 234,nan 235,nan 236,nan 237,nan 238,nan 239,nan 240,nan 241,nan 242,nan 243,nan 244,nan 245,nan 246,nan 247,nan 248,nan 249,nan 250,nan 251,nan 252,nan 253,nan 254,nan 255,nan 256,nan 257,nan 258,nan 259,nan 260,nan 261,nan 262,nan 263,nan 264,nan 265,nan 266,nan 267,nan 268,nan 269,nan 270,nan 271,nan 272,nan 623,0 624,0 625,0 626,0 627,0 628,0 629,0 630,0 631,0 632,0 633,0 634,0 635,0 636,0 637,0 638,0 639,0 640,0 641,0 642,0 643,0 644,0 645,0 646,0 647,0 648,0 649,0 650,0 651,0 652,0 653,0 654,0 655,0 656,0 657,0 658,0 659,0 660,0 661,0 662,0 663,0 664,0 665,0 666,0 667,0 668,0 669,0 670,0 671,0 672,0.951056516 673,0.951056516 674,0.587785252 675,3.43E-14 676,-0.587785252 677,-0.951056516 678,-0.951056516 679,-0.587785252 680,1.18E-14 681,0.587785252 682,0.951056516 683,0.951056516 684,0.587785252 685,-9.86E-16 686,-0.587785252 687,-0.951056516 688,-0.951056516 689,-0.587785252 690,-9.79E-15 691,0.587785252 692,0.951056516 693,0.951056516 694,0.587785252 695,2.06E-14 696,-0.587785252 697,-0.951056516 698,-0.951056516 699,-0.587785252 700,-3.14E-14 701,0.587785252 702,0.951056516 703,0.951056516 704,0.587785252 705,4.21E-14 706,-0.587785252 707,-0.951056516 708,-0.951056516 709,-0.587785252 710,3.93E-15 711,0.587785252 712,0.951056516 713,0.951056516 714,0.587785252 715,6.85E-15 716,-0.587785252 717,-0.951056516 718,-0.951056516 719,-0.587785252 720,-1.76E-14 721,0.587785252 722,0.951056516 723,0.951056516 724,0.587785252 725,2.84E-14 726,-0.587785252 727,-0.951056516 728,-0.951056516 729,-0.587785252 730,-3.92E-14 731,0.587785252 732,0.951056516 733,0.951056516 734,0.587785252 735,5.00E-14 736,-0.587785252 737,-0.951056516 738,-0.951056516 739,-0.587785252 740,-3.91E-15 741,0.587785252 742,0.951056516 743,0.951056516 744,0.587785252 745,1.47E-14 746,-0.587785252 747,-0.951056516 748,-0.951056516 749,-0.587785252 750,-2.55E-14 751,0.587785252 752,0.951056516 753,0.951056516 754,0.587785252 755,3.63E-14 756,-0.587785252 757,-0.951056516 758,-0.951056516 759,-0.587785252 760,-4.70E-14 761,0.587785252 762,0.951056516 763,0.951056516 764,0.587785252 765,5.78E-14 766,-0.587785252 767,-0.951056516 768,-0.951056516 769,-0.587785252 770,-1.18E-14 771,0.587785252 772,0 773,0 774,0 775,0 776,0 777,0 778,0 779,0 780,0 781,0 782,0 783,0 784,0 785,0 786,0 787,0 788,0 789,0 790,0 791,0 792,0 793,0 794,0 795,0
