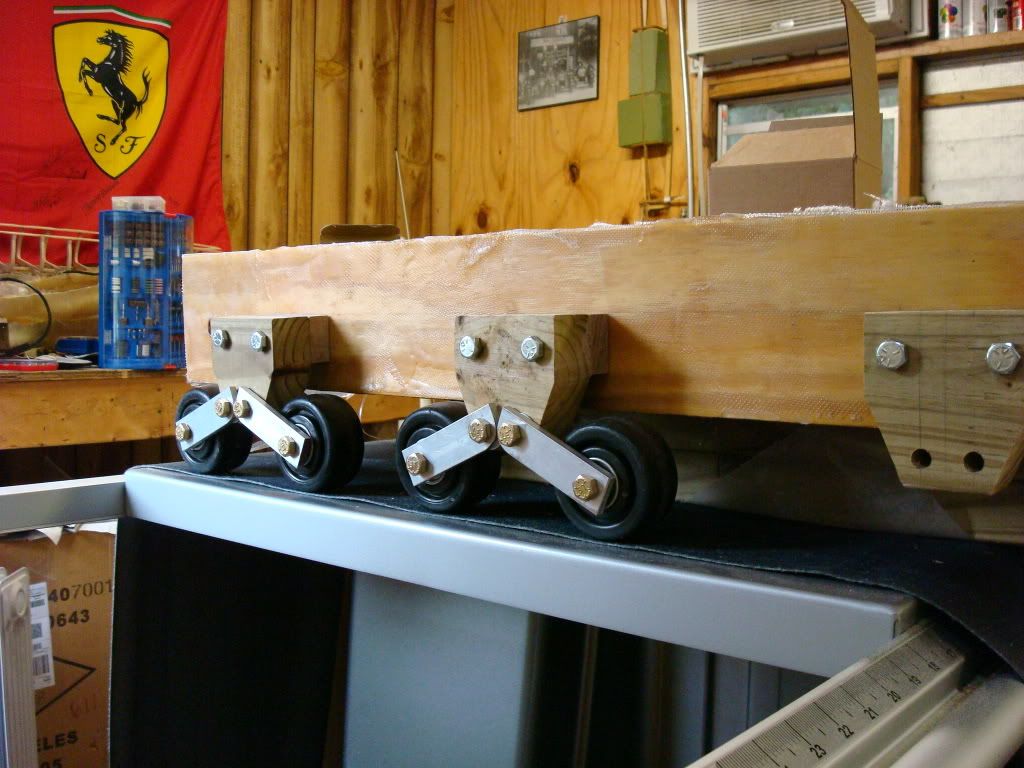

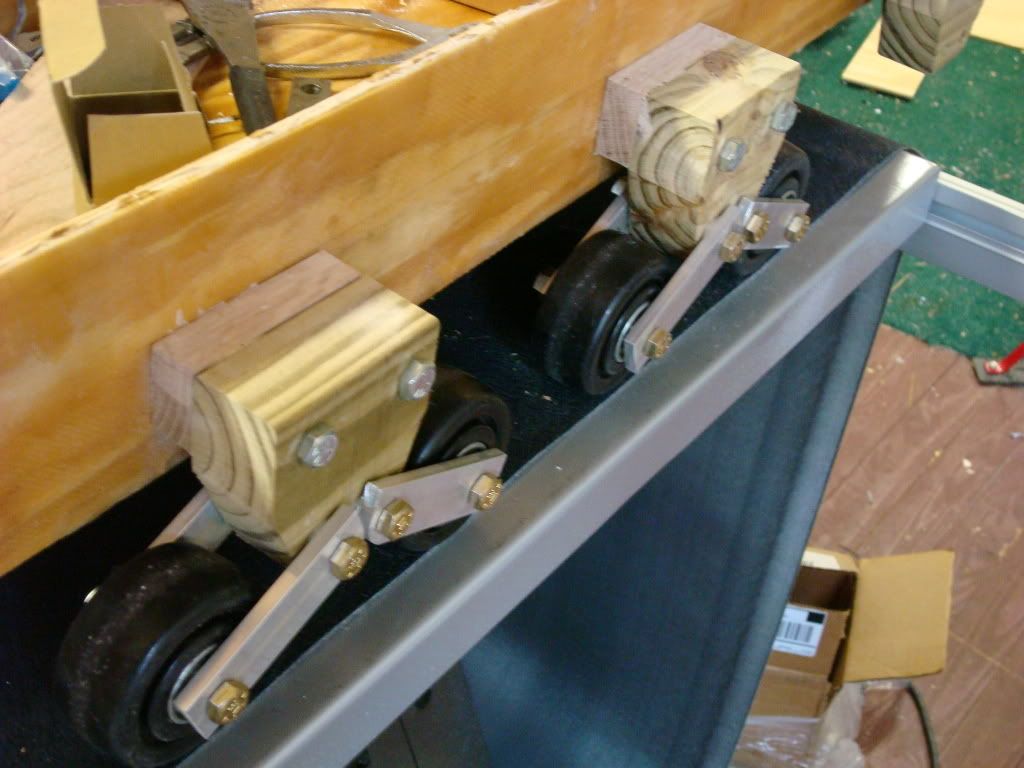

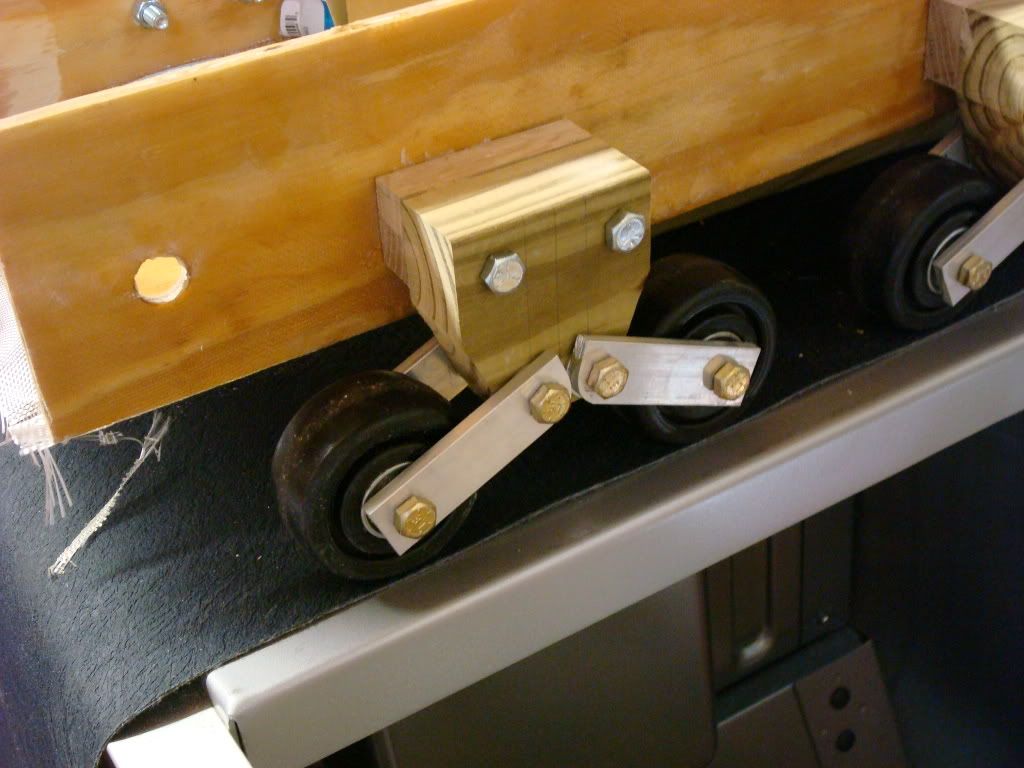

I had a minor "failure to measure twice, cut once" incident, resulting in 24 pieces of tool steel that were 1/2" too short in a critical dimension. These will be saved for 1)another project and 2) a reminder of said incident. I substituted in a larger section aluminum bar for the suspension arms, measured thrice and cut once. It works well and is a heck of a lot easier to work with than tool steel... I have 1/3 of my suspension done, minus the spring mounts. The linked pics show the two forward port-side stations. The black material the tank is on is the treadmill belt that will soon be cut...
http://i169.photobucket.com/albums/u224/tugboat706/Susp01.jpg http://i169.photobucket.com/albums/u224/tugboat706/Susp03.jpg http://i169.photobucket.com/albums/u224/tugboat706/Susp02.jpg -- Clark in Georgia M4 Sherman --~--~---------~--~----~------------~-------~--~----~ You are currently subscribed to the "R/C Tank Combat" group. To post a message, send email to [email protected] To unsubscribe, send email to [email protected] Visit the group at http://groups.google.com/group/rctankcombat -~----------~----~----~----~------~----~------~--~---
