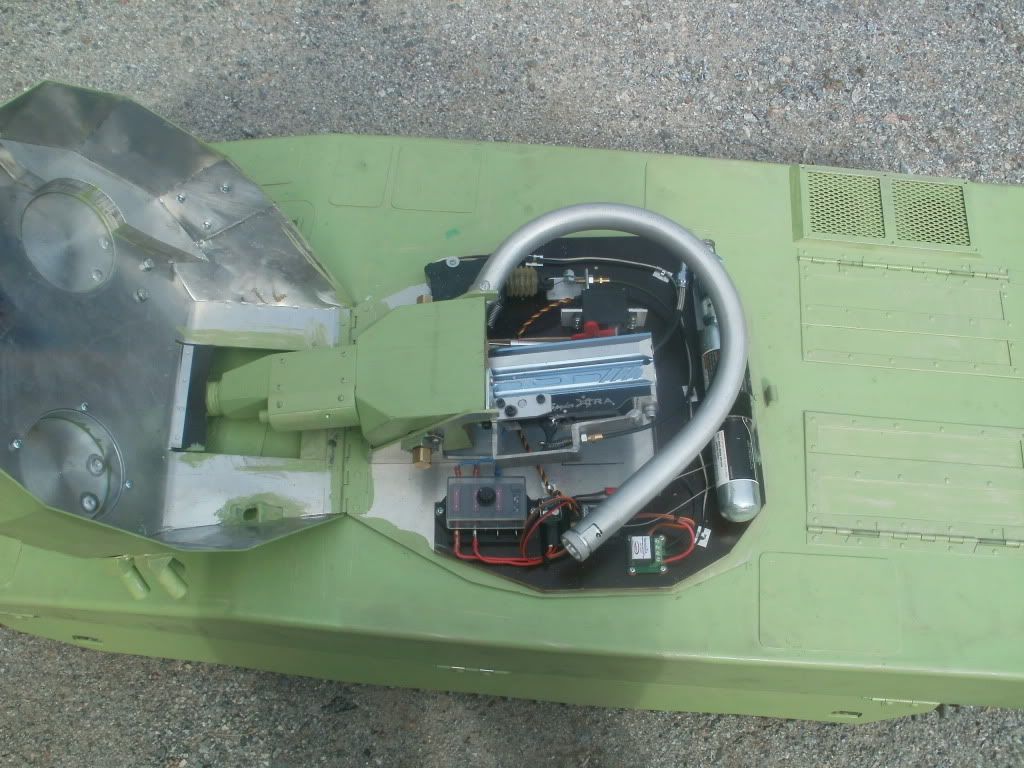

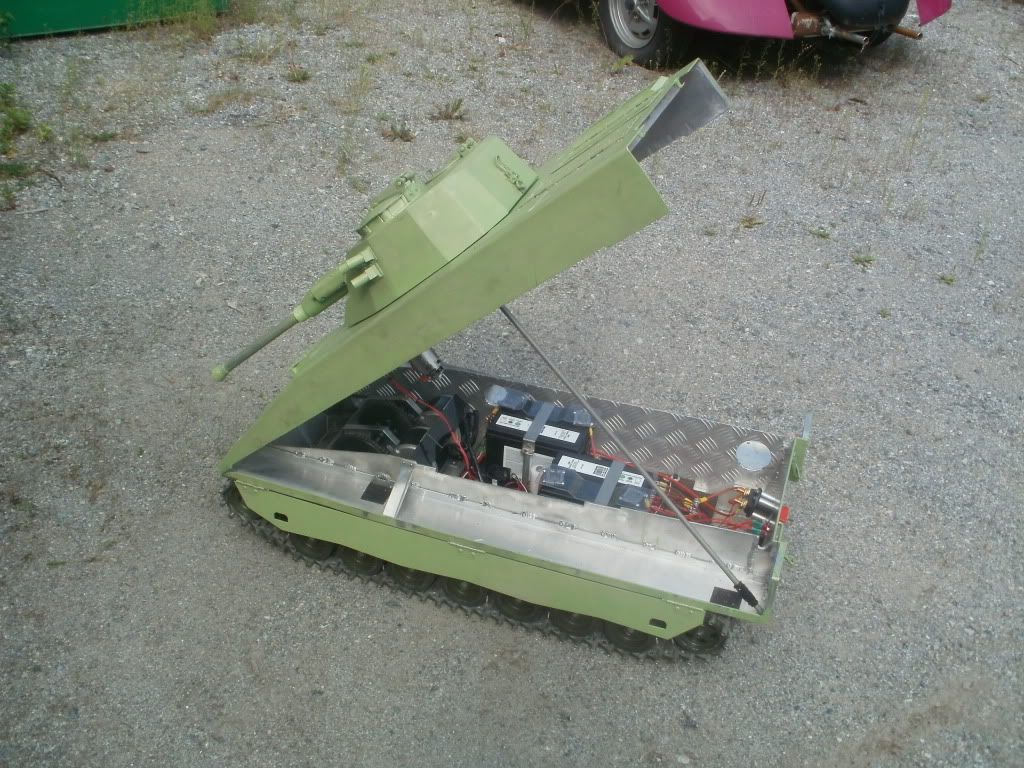

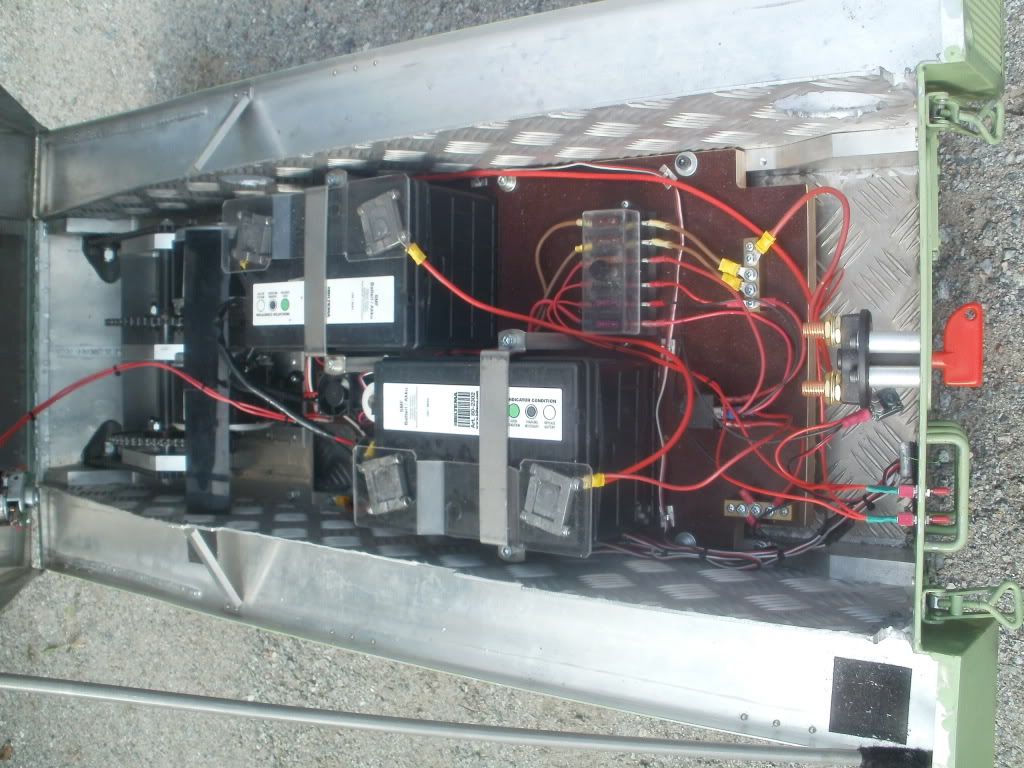

Greetings everybody. As you all know, life comes in the way of the fun sometimes. but now i have made some progress with my CV9040B after the first test drive i discovered that two 12V 12A batteries run dry after only 20min. and the suspension springs was too weak. So the interior was redesigned with two 12V 30A batteries. And all 14 suspension springs was remade with thicker and mutch stiffer wire. The space inside the turret is very limited so gravity feed with a tray is not working (i made two versions that worked poorly) The current paintball feed is a u-shaped 1inch aluminium tube with a very light spring load. unfortunately the magazine only holds 25 balls. (but im working on it)

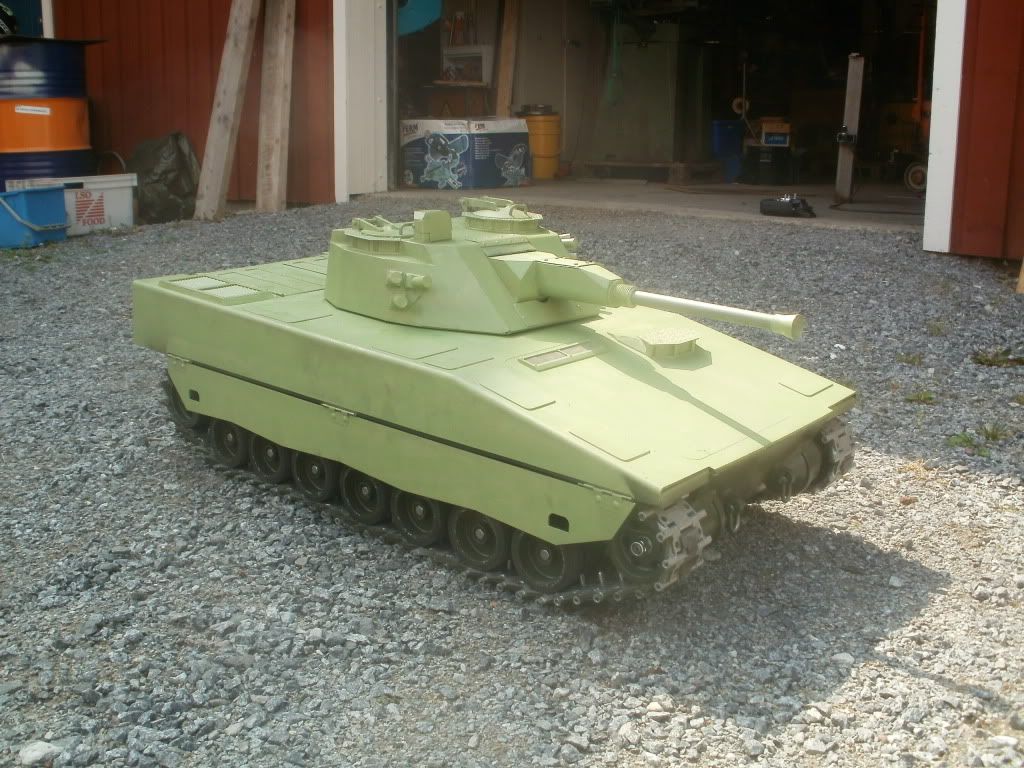

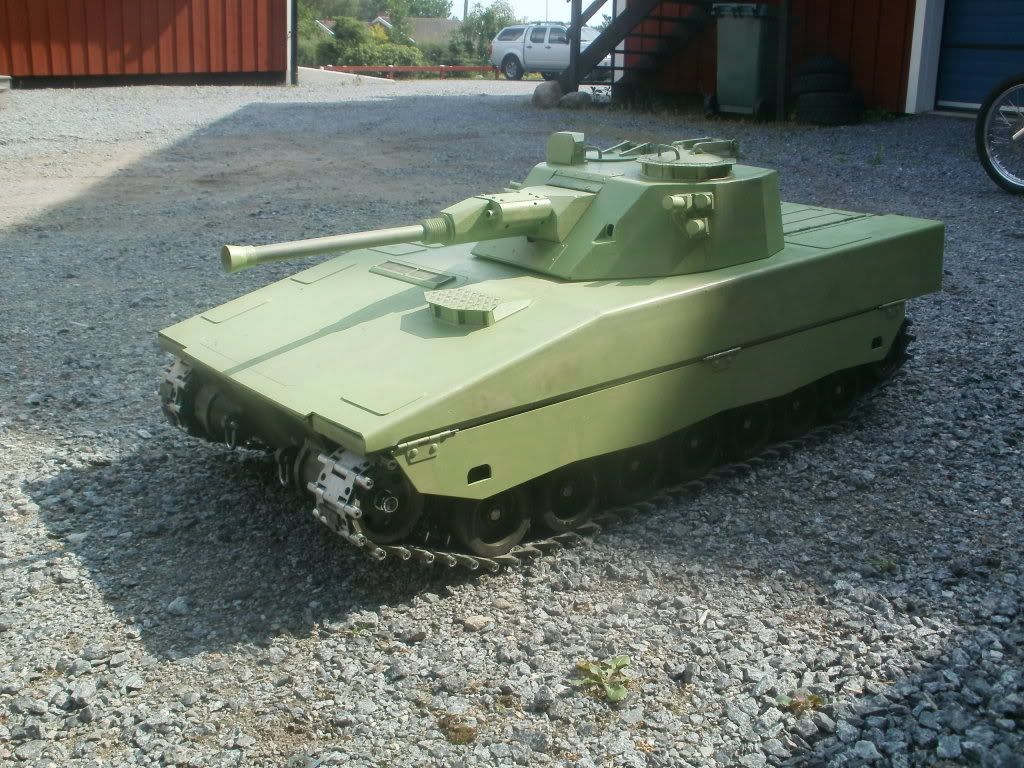

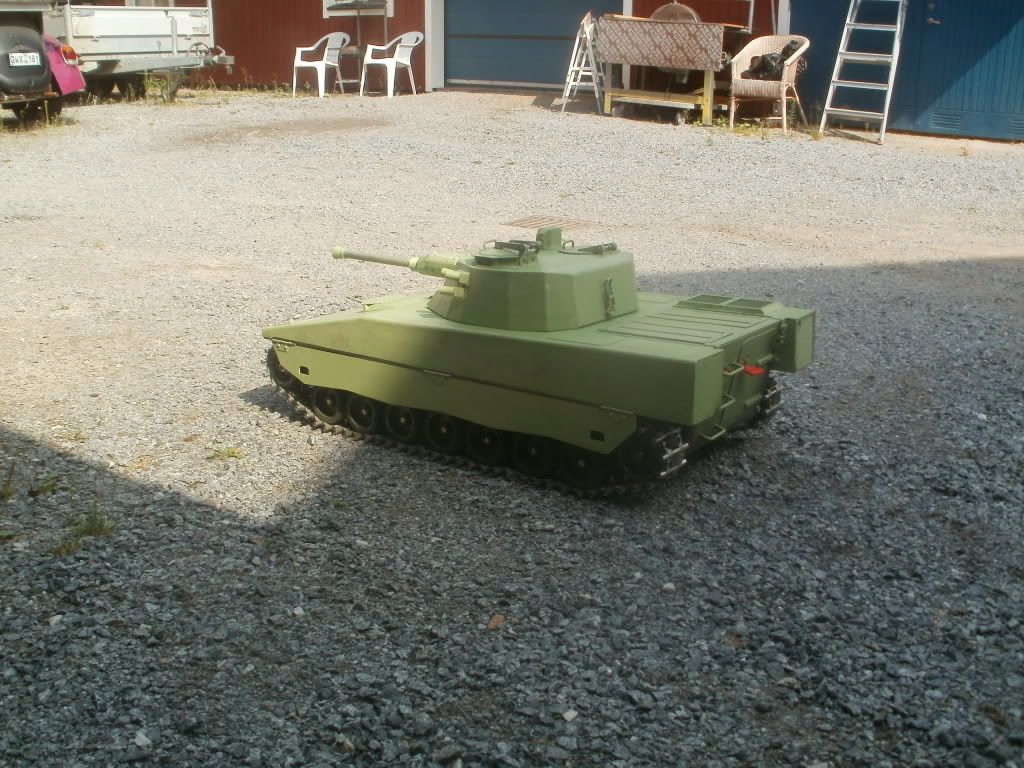

here is some pics on the primer painted beast. http://i916.photobucket.com/albums/ad6/leffew63/P8010217.jpg http://i916.photobucket.com/albums/ad6/leffew63/P8010222.jpg http://i916.photobucket.com/albums/ad6/leffew63/P8010221.jpg http://i916.photobucket.com/albums/ad6/leffew63/P8010219.jpg http://i916.photobucket.com/albums/ad6/leffew63/P8010218.jpg http://i916.photobucket.com/albums/ad6/leffew63/P8010223.jpg Best regards Leif. -- You are currently subscribed to the "R/C Tank Combat" group. To post a message, send email to [email protected] To unsubscribe, send email to [email protected] Visit the group at http://groups.google.com/group/rctankcombat
