I use the default setup and the URL for the original files is
https://localhost:8443/images/products/GZ-1000/original.JPG
There are other files there:
17/03/2022 18:58 <REP> .
17/03/2022 18:58 <REP> ..
17/03/2022 18:58 2 889 100x75.JPG
17/03/2022 18:58 132 623 1024x768.JPG
17/03/2022 18:58 195 694 1280x1024.JPG
17/03/2022 18:58 4 997 150x112.JPG
17/03/2022 18:58 287 749 1600x1200.JPG
17/03/2022 18:58 17 456 320x240.JPG
17/03/2022 18:58 58 108 640x480.JPG
17/03/2022 18:58 86 271 800x600.JPG
16/03/2022 11:42 <REP> additional1
23/11/2021 10:04 <REP> additionalE
17/03/2022 18:58 52 565 detail.JPG
17/03/2022 18:58 8 000 large.JPG
17/03/2022 18:58 2 889 medium.JPG
17/03/2022 18:58 1 378 793 original.JPG
17/03/2022 18:58 1 278 small.JPG
17/03/2022 18:58 2 889 thumbnail.JPG
They can be accessed/viewed by using
https://localhost:8443/images/products/GZ-1000/100x75.JPG
[...]
https://localhost:8443/images/products/GZ-1000/thumbnail.JPG
HTH
Le 17/03/2022 à 18:11, Ingo Wolfmayr a écrit :
Hi Jaqcues,
may I ask how did you setup the values in catalog.properties? And how does the
url of the uploaded image look like.
Thanks!
Best regards
Ingo
-----Ursprüngliche Nachricht-----
Von: Jacques Le Roux <[email protected]>
Gesendet: Donnerstag, 17. März 2022 17:21
An: [email protected]
Betreff: Re: AW: AW: AW: distTar
Hi Ingo,
I see you are using multitenant, right? Maybe it's the reason

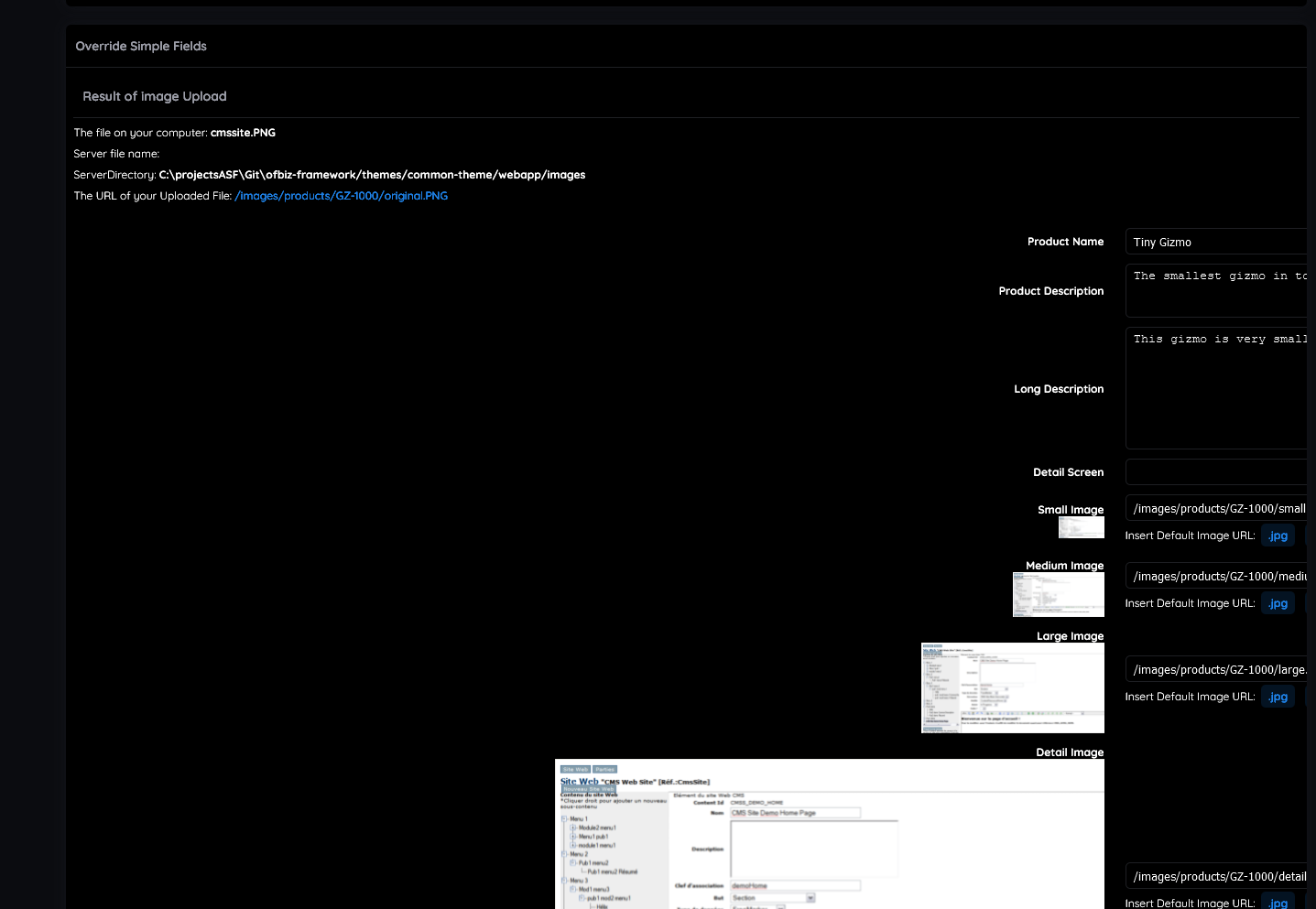

Because it works here, as you can see at
https://user-images.githubusercontent.com/557941/158845946-08df08f0-ee91-4cf1-8756-4092113015ce.png
HTH
Jaqcues
Le 17/03/2022 à 08:06, Ingo Wolfmayr a écrit :
Hi Jacques,
I refere to the default product images uploaded via the upload form on
EditProductContent. The images are correctly uploaded and scaled. They cannot
be viewed for example on the same screen (preview images).
Example:
Upload to: /images/tenant/demo/products/demoproduct/small.JPG
Views via:
https://mydomain/images/tenant/demo/products/demoproduct/small.JPG
If the are not uploaded in the webapp folder that referes to the web-path
/images they will not be displayed.
Content images are handled differently -
https://mydomain/stream?contentId=10000
Best regards,
Ingo
-----Ursprüngliche Nachricht-----
Von: Jacques Le Roux <[email protected]>
Gesendet: Donnerstag, 17. März 2022 07:53
An: [email protected]
Betreff: Re: AW: AW: distTar
Hi Ingo,
What images are you speaking about and from where do you try to view these
images?
As a 1st step, I guess it's products images. If it's additional imaged added
through product/content you should be able to see them on ecommerce site.
Note: I'm currently reviewing the situation of "images" and will get back to
that later on dev ML with maybe a copy here too...
Jacques
Le 16/03/2022 à 10:41, Ingo Wolfmayr a écrit :
Hi Jaques,
I have one more question to the image path: When I set the
"image.server.path" to for example "/home/ofbiz/images" the file is
uploaded fine - the files are in the right path. Unfortunately
viewing the image requires it to be available via a webpath as by
default /images
Do you have a recommendation on how to set it up correctly?
Best regards,
Ingo
-----Ursprüngliche Nachricht-----
Von: Jacques Le Roux <[email protected]>
Gesendet: Freitag, 11. Februar 2022 19:06
An: [email protected]
Betreff: Re: AW: distTar
Hi Ingo, All,
To clarify my thoughts and message.
Actually I was wrong when I said that "a feature was lost when common-theme was put in".
The rest is right. This feature is the possibility, through image.server.path property in
catalog.properties file, to place the images, and other the static files as well, in a location
that fits with you for any reason. Notably following the NSA recommendation to place it in "a
non-web accessible area". This to prevent webshell uploads and all kind of other malicious
files uploads. The same is true for the other property image.management.path.
So the fact that before common-theme was put in, with the folder for images
/themes/common/images/webapp/images/, this folder was /framework/images/webapp/images/
has nothing to do with "a non-web accessible area". That's you to decide...
There is also a ${tenantId} var used in image.server.path property that is used
in case of multi-tenant, that's another thing.
So I finally don't think it's necessary to put the images and
image.management in runtime. This would add nothing. I'll remove the
FIXMEs
Jacques
Le 07/02/2022 à 19:37, Ingo Wolfmayr a écrit :
Hi Jacques,
thanks for the fast response. I will do it exactly as you say.
Best regards
Ingo
-----Ursprüngliche Nachricht-----
Von: Jacques Le Roux<[email protected]>
Gesendet: Montag, 7. Februar 2022 19:21 An:[email protected]
Betreff: Re: distTar
Hi Ingo,
You don't need to use
./gradlew "ofbiz start"
./gradlew ofbiz
is enough and does not generate zip/tar.
This said I'm currently working on a feature that was lost when
common-theme was put in. Fortunately tt was then documented by these
FIXMEs #FIXME the image server path need to be moved on runtime
#FIXME the image management path need to be moved on runtime
The idea is to not have the images under OFBiz tree but in a specific location
unrelated to OFBiz.
I'm actually also working on this for security reason. It's a NSA
recommendation*:
<<Officials explained that web applications should not be given
permissions to write directly to a web accessible directory or modify web
accessible code.
“Attackers are unable to upload a web shell to a vulnerable application
if the web server blocks access to the web accessible directory,”
according to the guidance. “To preserve functionality, some web
applications require configuration changes to save uploads to a non-web
accessible
area.”>>
“To preserve functionality, some web applications require configuration changes
to save uploads to a non-web accessible area.” That's exactly what we lost with
common-theme. Fortunately it was documented and I stumbled upon it while
working on related security issues.
Having images, and at large static files, in a specific location can also allow
to speed things...
HTH
Jacques
*https://healthitsecurity.com/news/nsa-shares-guide-to-web-shell-mal
w
a
re-vulnerabilities-mitigation
Le 07/02/2022 à 17:56, Ingo Wolfmayr a écrit :
Hi everybody,
I have a question about building ofbiz. In previous versions for example 17.12
I had the following process:
./gradlew build (build the project and see if everything is fine)
./gradlew "ofbiz start"
Now I am working with the current trunk and when I start ./gradlew build it starts
"disttar" and generates a .tar and a .zip. As I have lots of images in a project it uses
lots of disk space and time. Is my process wrong? Is there "correct" way of how it should
be done?
Thanks for every hint.
Best regards,
Ingo
