> On 28/07/2017 13:56, Henk Gooijen via cctalk wrote:
> AFAIK, the UTS40 does not have a “standard” connection on it, like
RS-232. But I could be wrong. At the office they were connected to a
comms concentrator, a DCP/40.
Maybe I'm wrong, I always believed that the J3 connector was an RS-232
port. Here it is:
http://www.zeltrax.com/classiccmp_forum/04.jpg
I also have the memory of a communication program under CP/M (maybe i'm
also wrong) about communication, a souvenir of baud rate (or it was in
the terminal mode ?). But perhaps for a synchronous connection only.
> Note that the auction does not show the UTS very specific keyboard !!

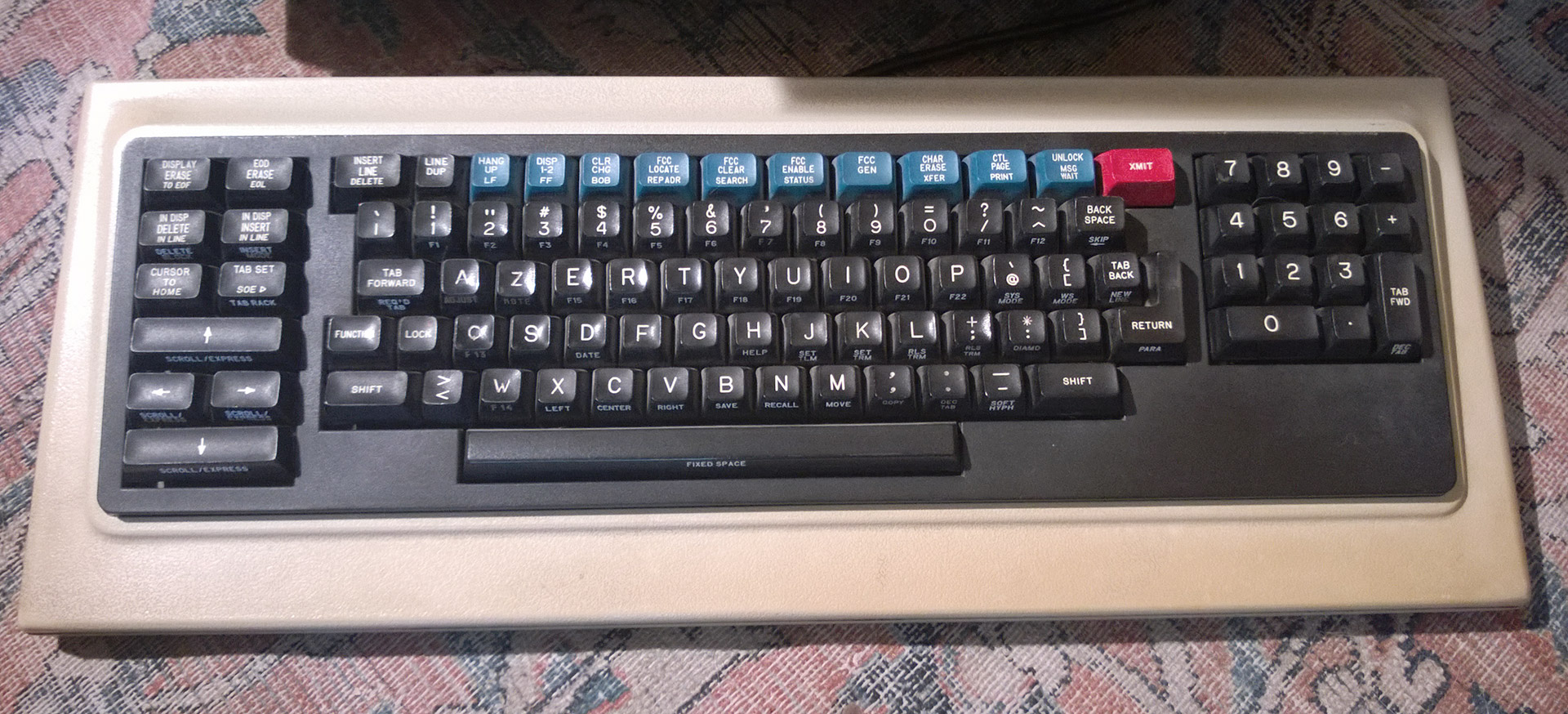

Fortunately the machine is complete! I still have the keyboard, the
cables, the documentation, the floppy disks. I also have a UTS20D with
the same keyboard.
http://www.zeltrax.com/classiccmp_forum/03.jpg
> Dominique, if you ever want to get rid of your UTS40 setup and like
to “donate” it to a good “retirement home”, let me know
(www.pdp-11.nl<http://www.pdp-11.nl> ).
You have a very nice retirement home, bravo, however no, sorry ;-) You
will understand that I am very attached to this good old fellow.
> However, you also need an SSP and EXEC (the propriatary OS), FURPUR
and at least MASM-1100. Loved to program is assembler, but that’s an
other story …
Except if I can finally also use that machine as a pure terminal (I
think it would be even more fun to connect it on my DCC-116 than on a
PC), if I can repair this computer, I probably will just use it as
before, namely under this good old CP/M, write some stuff in BASIC as at
the time of my 15 years ;-) However it should be great to find a way to
import others CP/M compatible programs.
> Do you have any way to image the floppies for it?
I never had the opportunity to explore a way to transfer files or
recreate a floppy disk from an image from my UTS. Finally I don't know
anything about the exact filesystem for this machine, I know that there
are ways to connect an 8-inch drive to a PC XT (for example), but on my
subsystem the floppies are double sided, 8 sectors 1024 bytes, I think
it's more than 1Mo per floppy DD. I don't remember if the subsystem read
also the single sided floppies, maybe. The question is, 8-inch drive on
XT ok but with which type of controller ?
Afterwards, was the formatting standardized between the CP/M machines of
that generation with this kind of media ? I do not know, but the subject
interests me.
> There are brochures and UTS 30 manuals on bitsavers under
univac/terminals. I should have UTS 40 and 60 manuals scanned somewhere.
I don't think I have any maintenance information but I think I have a
few 8" CP/M disks somewhere.
> I think one of the people who designed it has popped up on vcfed.org
but it isn't coming up in a search.
> http://www.vcfed.org/forum/showthread.php?49011-Sperry-UTS-30
> I bought one of the ebay ones to dump the firmware, would be nice if
anyone else with UTS terminals/computers would do the same.
Thanks for all these information, I am not registered on the VCFED forum
but I will remedy this.
About saving information, firmware, dump ROMs, I would do that, although
I admit to be a little afraid to damage my ROMs, in the same time it
would be the best guarantee to cure the UTS in the future.
To finish I take the opportunity to show you some pictures of my machine
but that they date from today :

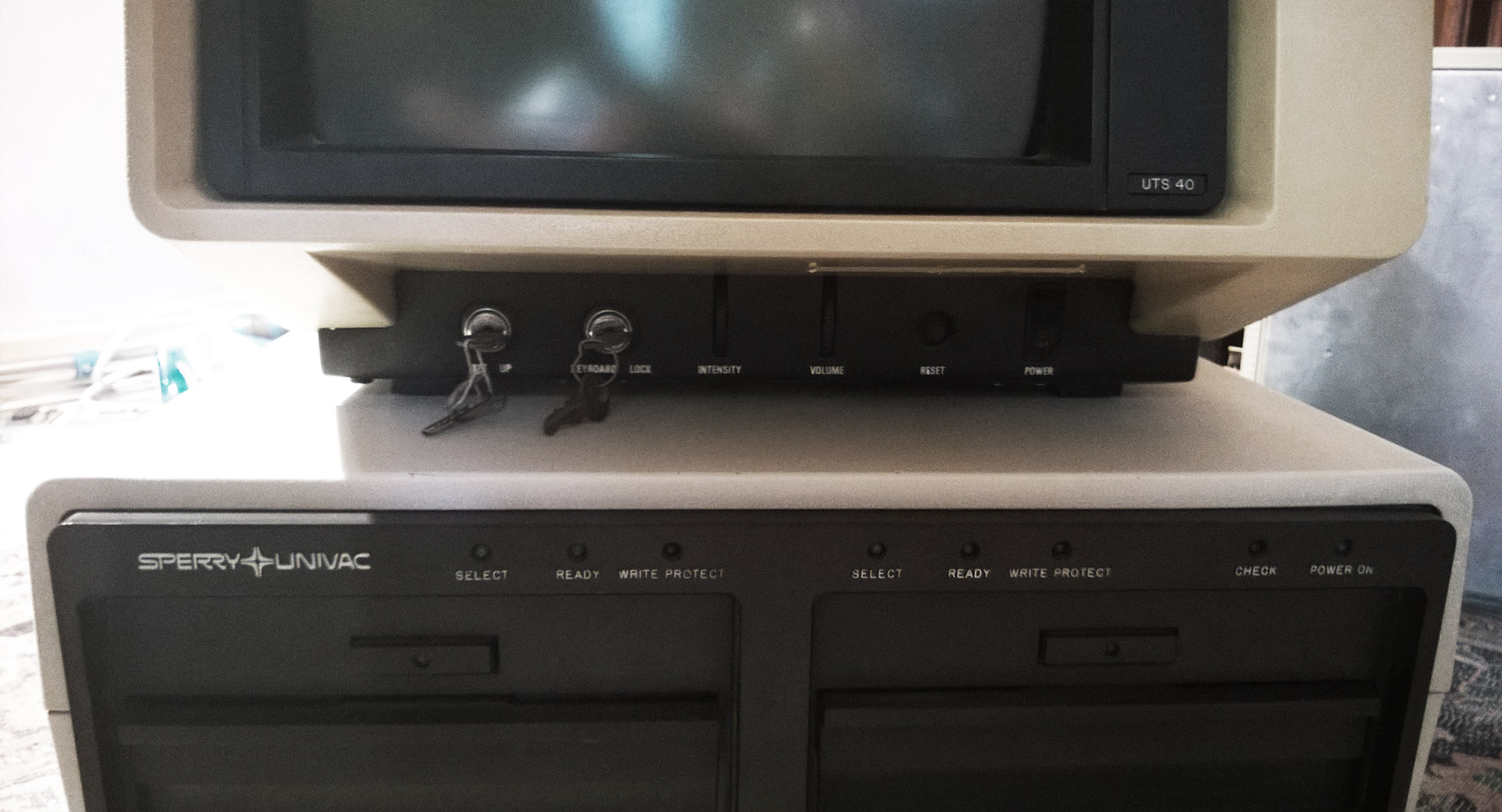

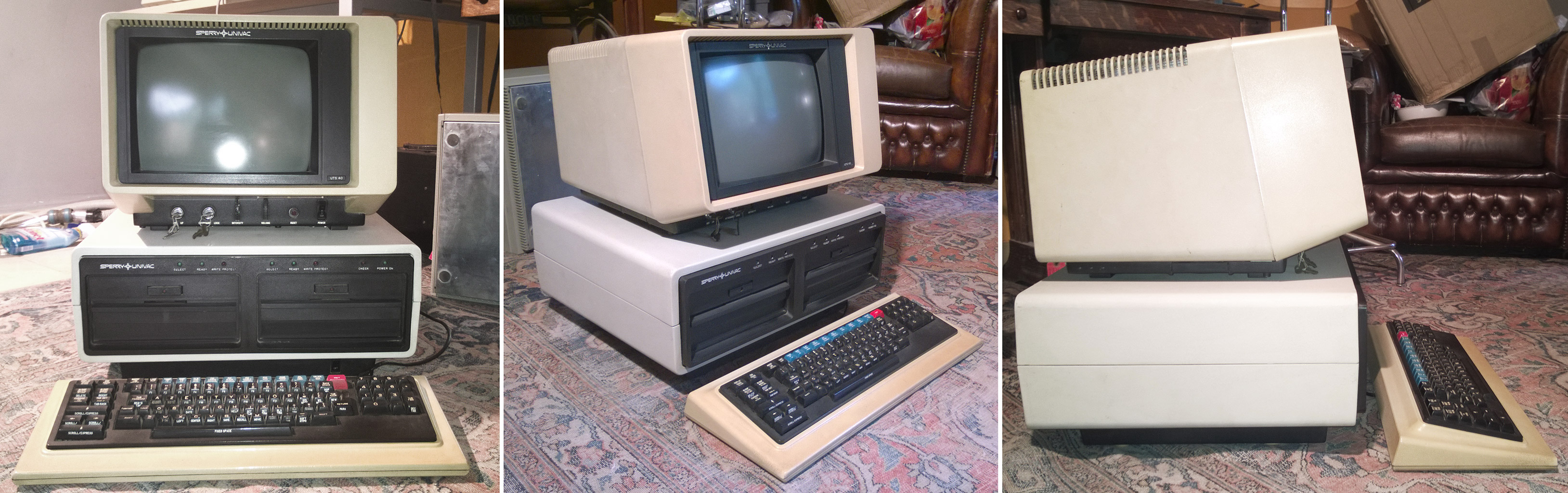

http://www.zeltrax.com/classiccmp_forum/01.jpg
http://www.zeltrax.com/classiccmp_forum/02.jpg
