bbovenzi opened a new pull request #18675:
URL: https://github.com/apache/airflow/pull/18675


   **Problem**

   A tree diagram cannot properly represent a graph. This has led to a number
of issues:
   - users being confused seeing multiple leaves representing the same task
   - displaying task groups has never really worked well #18009, #13242
   - task groups have never had a collapse/expand functionality like graph view
#16112
   - The long tree names and branches easily leads to a overlapping elements
#17717
   - It is all built in a hard-to-follow d3 setup that makes maintaining the
view hard

   **Solution**

   - Remove the "tree" part of tree view. Show runs and tasks but leave
dependency lines to the graph view
   - Allow a user to better abstract away parts of their DAGs with Task Groups
and simplify their workflows
   - Build in a modern technology that we can more easily maintain

   **Screenshots**

   <img width="1192" alt="Screen Shot 2021-10-01 at 5 16 29 PM"
src="https://user-images.githubusercontent.com/4600967/135648242-717acc77-a5ab-4bd5-a560-e3199acf74a0.png";>

   <img width="788" alt="Screen Shot 2021-10-01 at 5 15 39 PM"
src="https://user-images.githubusercontent.com/4600967/135648305-5514f9ce-f94b-4744-b5a6-279b039e2c53.png";>

   <img width="325" alt="Screen Shot 2021-10-01 at 5 16 48 PM"
src="https://user-images.githubusercontent.com/4600967/135648325-9ae934c9-361a-4ee9-8186-8914e6064e76.png";>

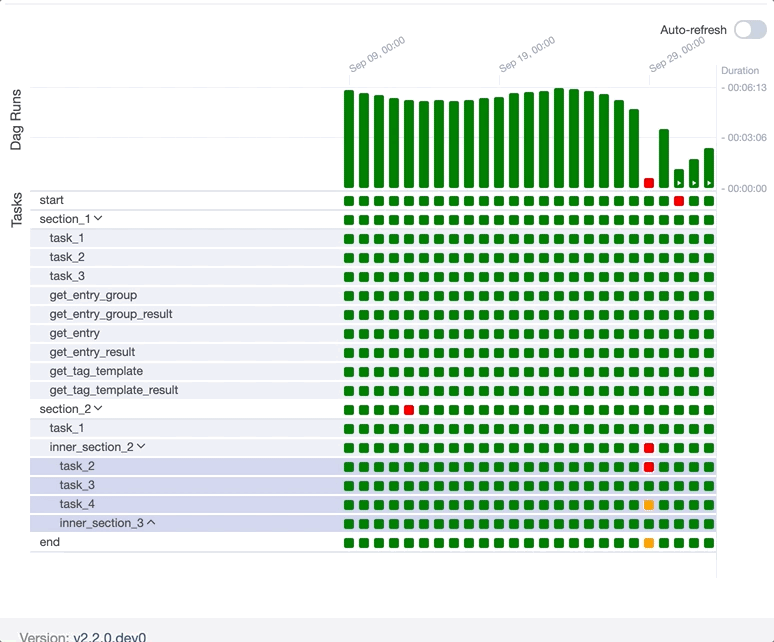

   ![Oct-01-2021
17-14-42](https://user-images.githubusercontent.com/4600967/135648403-9434f5e3-f642-445c-a843-661e58110f96.gif)

   **Features and Benefits**

   - Show durations of dag runs to quickly see performance changes #8931
   - Task groups have summaries and can expand/collapse just like the graph view
   - Grid lines and hover effects to see which task you are inspecting
   - Built in React to more easily maintain and can bring over to an eventual
new Airflow UI in AIP-38
   - Ready to add new features in the roadmap like Dag Versioning or Task
Mapping


   Subsequent PRs:

   - Add testing of react components in the current UI `/airflow/www`
   - Filter over the state legend to highlight tasks and dag runs like graph
view
   - More elegantly handle outliers in the Dag Run Duration chart (if it
normally takes 5 minutes but then a run takes 5 hours the graph won't look
great)
   - Update the Task Instance and Dag Run Action Modals too
   - More dynamic scrolling around the 100s of dag runs instead of the clunky
"Update" button
   - Improve render times with Lazy Loading #13066

   ---
