GabrielBrascher commented on issue #5071:
URL: https://github.com/apache/cloudstack/issues/5071#issuecomment-854762528
@weizhouapache here follows some details:
### Environment
1. CloudStack version: `4.15.0.0` & `4.15.1.0 RC1`
2. Virtualization: KVM
3. Network: Advanced Network with Security Group enabled
4. Isolation: VXLAN
### Cases where I could reproduce the issue
#### 1. Default Guest network is being created while deploying a new Zone
via UI wizard:
Command:
```
command=createNetwork
name=defaultGuestNetwork
displaytext=defaultGuestNetwork
zoneid=0f715648-ac24-443d-bbb0-bc51b3c055b9
networkofferingid=6b8dde01-f47a-4dcf-9156-57c4fba9a968
gateway=192.168.100.1
netmask=255.255.255.0
startip=192.168.100.50
endip=192.168.100.99
vlan=0
```
Log:
```
2021-06-03 21:24:49,144 DEBUG [c.c.a.ApiServlet]
(qtp2109798150-18:ctx-03f9860b) (logid:2f1fa8b3) ===START=== 192.168.100.1 --
GET
zoneid=0f715648-ac24-443d-bbb0-bc51b3c055b9&name=defaultGuestNetwork&displaytext=defaultGuestNetwork&networkofferingid=6b8dde01-f47a-4dcf-9156-57c4fba9a968&gateway=192.168.100.1&netmask=255.255.255.0&startip=192.168.100.50&endip=192.168.100.99&vlan=0&command=createNetwork&response=json
...
...
2021-06-03 21:24:49,299 DEBUG [c.c.a.ApiServlet]
(qtp2109798150-16:ctx-44362283 ctx-5eb8df22) (logid:02838213) ===END===
192.168.100.1 -- GET
id=f29edbca-0669-45fb-936e-66ac8784f966&state=Enabled&command=updateNetworkServiceProvider&response=json
2021-06-03 21:24:49,331 DEBUG [c.c.n.NetworkServiceImpl]
(API-Job-Executor-10:ctx-582a6615 job-16 ctx-297fe6cd) (logid:f6921c72) trying
to update the state of the service provider id=5 on physical network: 200 to
state: Enabled
2021-06-03 21:24:49,337 DEBUG [c.c.u.d.T.Transaction]
(qtp2109798150-18:ctx-03f9860b ctx-6124ca66) (logid:2f1fa8b3) Rolling back the
transaction: Time = 86 Name = qtp2109798150-18; called by
-TransactionLegacy.rollback:888-TransactionLegacy.removeUpTo:831-TransactionLegacy.close:655-Transaction.execute:38-Transaction.execute:47-NetworkOrchestrator.createGuestNetwork:2569-NetworkOrchestrator.createGuestNetwork:2327-NetworkServiceImpl$4.doInTransaction:1502-NetworkServiceImpl$4.doInTransaction:1450-Transaction.execute:40-NetworkServiceImpl.commitNetwork:1450-NetworkServiceImpl.createGuestNetwork:1366
2021-06-03 21:24:49,358 ERROR [c.c.a.ApiServer]
(qtp2109798150-18:ctx-03f9860b ctx-6124ca66) (logid:2f1fa8b3) unhandled
exception executing api command: [Ljava.lang.String;@56cdd438
com.cloud.utils.exception.CloudRuntimeException: VLAN requested but URI is
not in the expected format: vxlan://0
at
com.cloud.network.dao.NetworkDaoImpl.listByPhysicalNetworkPvlan(NetworkDaoImpl.java:784)
at
java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at
java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at
java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
```
#### 2. creating a new network on an existing Zone (that had been deployed
before upgrading to 4.15.0.0)
##### 2.1 via cloudmonkey
Command:
```
create network displaynetwork=true displaytext="New Network" name="New
Network" netmask=255.255.255.128 startip=<start-ip> endip=<end-key>
gateway=<gateway-ip> vlan=vxlan://123 ip6cidr=<ipv6-cidr>
ip6gateway=<ipv6-gateway> networkofferingid=<offering-id>
physicalnetworkid=<physical-network-id> zoneid=<zone-id> account=<account-id>
domainid=<domain-id>
Error: (HTTP 530, error code 4250) VLAN requested but URI is not in the
expected format: vxlan://123
```
Log:
```
2021-06-03 11:09:55,614 DEBUG [c.c.a.ApiServlet]
(qtp1665620686-39719:ctx-bf7efb52) (logid:2252fead) ===START===
account=<account-id>&apiKey=<api-key>&command=cre
ateNetwork&displaynetwork=true&displaytext=New+Network&domainid=<domain-id>&endip=<end-key>&gateway=<gateway-ip>&ip6cidr=<ipv6-cidr>&ip6gateway=<ipv6-gateway>&name=New+Network&netmask=255.255.255.
128&networkofferingid=<offering-id>&physicalnetworkid=<physical-network-id>&response=json&startip=<start-ip>&vlan=vxlan%3A%2F%2F123&zoneid=<zone-id>&signature=<signature>
...
...
2021-06-03 11:09:55,724 ERROR [c.c.a.ApiServer]
(qtp1665620686-39719:ctx-bf7efb52 ctx-c73431d6 ctx-c4105005) (logid:2252fead)
unhandled exception executing api command: [Ljava.lang.String;@6b3403ea
com.cloud.utils.exception.CloudRuntimeException: VLAN requested but URI is
not in the expected format: vxlan://123
at
com.cloud.network.dao.NetworkDaoImpl.listByPhysicalNetworkPvlan(NetworkDaoImpl.java:784)
at
java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at
java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
```

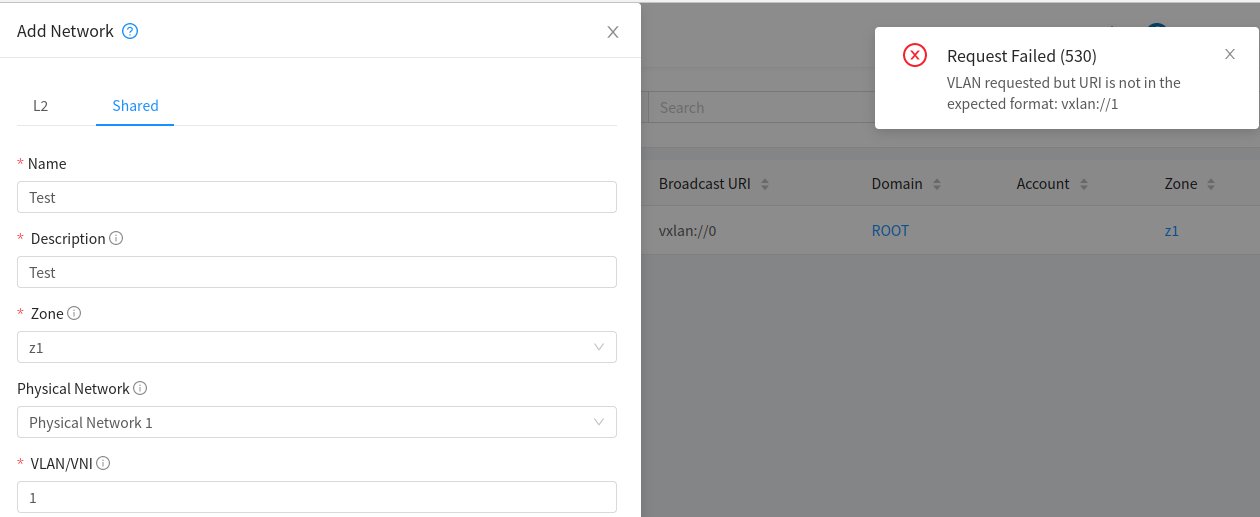

##### 2.2 via UI
Log:
```
2021-06-04 16:12:31,123 DEBUG [c.c.a.ApiServlet]
(qtp1484673893-19:ctx-41aea465) (logid:c7cf5089) ===START=== 192.168.100.1 --
GET
zoneId=4842bfa7-7bd9-471a-bf2a-53ca36aa9e32&name=Test&displayText=Test&networkOfferingId=5a2bbf72-e75b-4d05-8534-beffba874a58&physicalnetworkid=636dabaa-a42e-4415-bec5-a6aa5e273866&vlan=1&bypassvlanoverlapcheck=false&acltype=domain&gateway=192.168.100.1&netmask=255.255.255.0&startip=192.168.100.100&endip=192.168.100.149&command=createNetwork&response=json
2021-06-04 16:12:31,138 DEBUG [c.c.a.ApiServer]
(qtp1484673893-19:ctx-41aea465 ctx-8e816eb9) (logid:c7cf5089) CIDRs from which
account 'Acct[c1fcecaa-c424-11eb-a265-5254009b3036-admin]' is allowed to
perform API calls: 0.0.0.0/0,::/0
2021-06-04 16:12:31,180 DEBUG [c.c.u.AccountManagerImpl]
(qtp1484673893-19:ctx-41aea465 ctx-8e816eb9) (logid:c7cf5089) Access granted to
Acct[c1fcecaa-c424-11eb-a265-5254009b3036-admin] to [Network Offering
[7-Guest-DefaultSharedNetworkOffering] by AffinityGroupAccessChecker
2021-06-04 16:12:31,255 DEBUG [c.c.u.d.T.Transaction]
(qtp1484673893-19:ctx-41aea465 ctx-8e816eb9) (logid:c7cf5089) Rolling back the
transaction: Time = 53 Name = qtp1484673893-19; called by
-TransactionLegacy.rollback:888-TransactionLegacy.removeUpTo:831-TransactionLegacy.close:655-Transaction.execute:38-Transaction.execute:47-NetworkOrchestrator.createGuestNetwork:2572-NetworkOrchestrator.createGuestNetwork:2327-NetworkServiceImpl$4.doInTransaction:1502-NetworkServiceImpl$4.doInTransaction:1450-Transaction.execute:40-NetworkServiceImpl.commitNetwork:1450-NetworkServiceImpl.createGuestNetwork:1366
2021-06-04 16:12:31,270 ERROR [c.c.a.ApiServer]
(qtp1484673893-19:ctx-41aea465 ctx-8e816eb9) (logid:c7cf5089) unhandled
exception executing api command: [Ljava.lang.String;@4959b691
com.cloud.utils.exception.CloudRuntimeException: VLAN requested but URI is
not in the expected format: vxlan://1
at
com.cloud.network.dao.NetworkDaoImpl.listByPhysicalNetworkPvlan(NetworkDaoImpl.java:784)
at
java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at
java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at
java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:566)
at
org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:344)
```
--
