Pearl1594 opened a new pull request #5985:
URL: https://github.com/apache/cloudstack/pull/5985


   ### Description

   This PR fixes https://github.com/apache/cloudstack/issues/5934

   <!--- Describe your changes in DETAIL - And how has behaviour functionally
changed. -->

   <!-- For new features, provide link to FS, dev ML discussion etc. -->
   <!-- In case of bug fix, the expected and actual behaviours, steps to
reproduce. -->

   <!-- When "Fixes: #<id>" is specified, the issue/PR will automatically be
closed when this PR gets merged -->
   <!-- For addressing multiple issues/PRs, use multiple "Fixes: #<id>" -->
   <!-- Fixes: # -->

   <!---
*********************************************************************************
 -->
   <!--- NOTE: AUTOMATATION USES THE DESCRIPTIONS TO SET LABELS AND PRODUCE
DOCUMENTATION. -->
   <!--- PLEASE PUT AN 'X' in only **ONE** box -->
   <!---
*********************************************************************************
 -->

   ### Types of changes

   - [ ] Breaking change (fix or feature that would cause existing
functionality to change)
   - [ ] New feature (non-breaking change which adds functionality)
   - [X] Bug fix (non-breaking change which fixes an issue)
   - [ ] Enhancement (improves an existing feature and functionality)
   - [ ] Cleanup (Code refactoring and cleanup, that may add test cases)

   ### Feature/Enhancement Scale or Bug Severity
   #### Bug Severity

   - [ ] BLOCKER
   - [ ] Critical
   - [ ] Major
   - [X] Minor
   - [ ] Trivial


   ### Screenshots (if appropriate):


   ### How Has This Been Tested?
   <!-- Please describe in detail how you tested your changes. -->
   <!-- Include details of your testing environment, and the tests you ran to
-->
   <!-- see how your change affects other areas of the code, etc. -->
   (1) create isolated network
   (2) add new public IP range
   (3) acquire public IP in new IP range
   (4) create firewall rule. a new NIC is added to the network VR
   (5) release the public IP. - if it is the only IP on the NIC, the nic will
be removed

   Test 1:

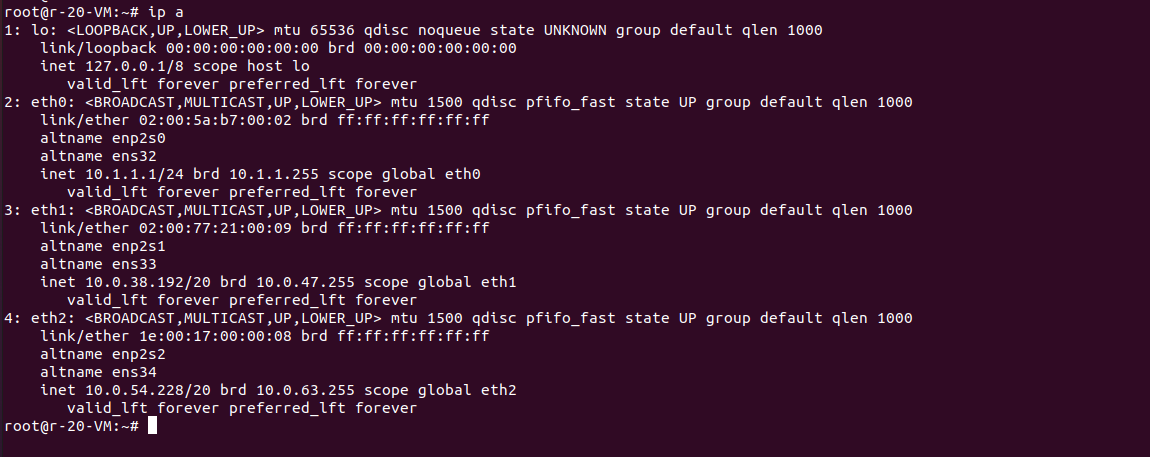

   Initial output of `ip a` with default NIC:

![image](https://user-images.githubusercontent.com/10495417/153587069-312dd496-7d69-46bc-b826-c3a97375b240.png)

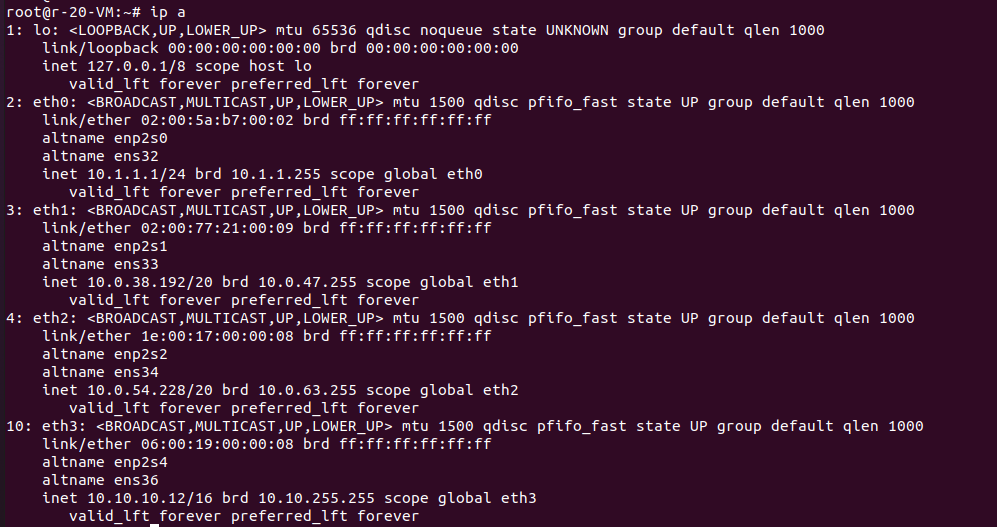

   Acquired an IP in another Public IP range and added a firewall rule: New nic
was added

![image](https://user-images.githubusercontent.com/10495417/153587236-c9f292f3-f23f-4525-87d0-0afc1610d362.png)

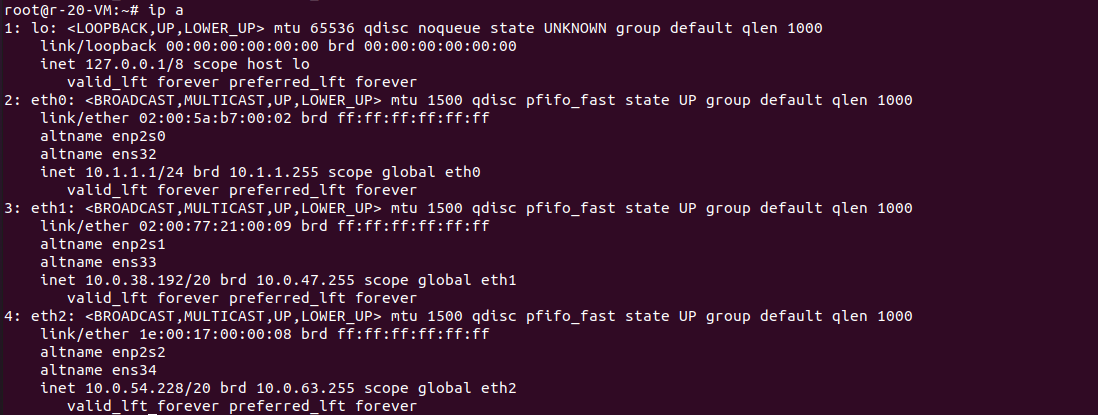

   On deletion of the firewall rule on the NIC, the nic is removed:

![image](https://user-images.githubusercontent.com/10495417/153590796-7d564ee2-a805-48fe-8a7b-5be9bbcd5d37.png)

   Test2:

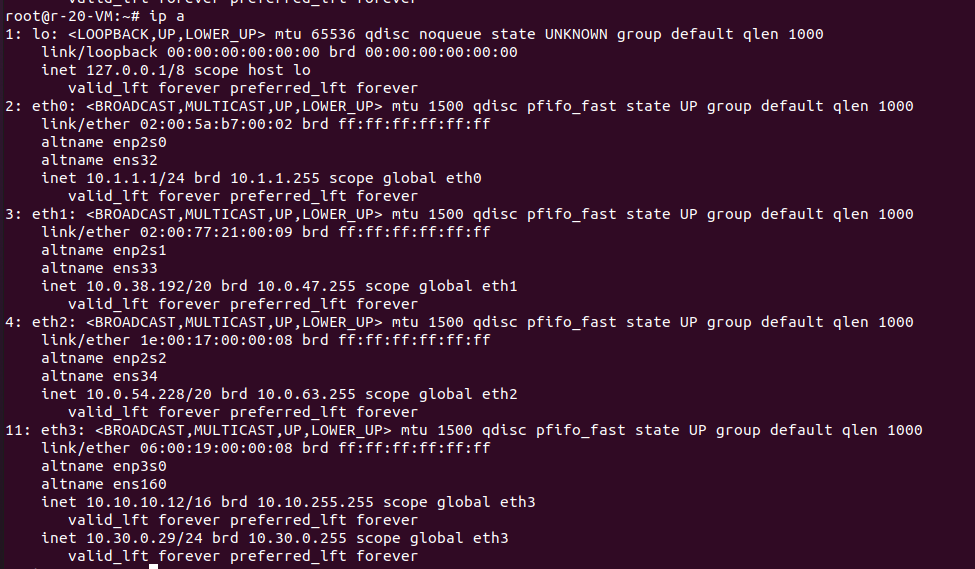

   Add another Public IP range in the same VLAN as the one before
   Acquire & add firewall rule for 2 IPs belonging to 2 different Public IP
ranges but the same VLAN, such that there are 2 IPs on a NIC (check eth3)

![image](https://user-images.githubusercontent.com/10495417/153591161-bc41c7b2-ed9f-4825-bc13-8e00ff647036.png)

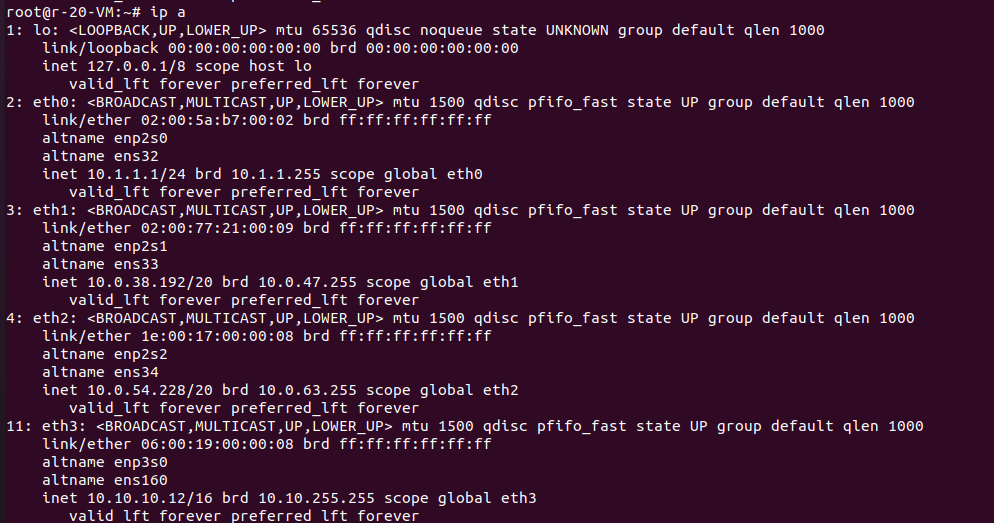

   Remove the rule from one of the IPs, and verify that the IP is disassociated
from the VRs NIC, but the NIC isn't removed:

![image](https://user-images.githubusercontent.com/10495417/153591310-d5083115-00cc-4f6c-b42f-8de50d957f9e.png)
