harinirajendran opened a new issue #11414:
URL: https://github.com/apache/druid/issues/11414
### Affected Version
0.21
### Description
We have a druid cluster in which we are ingesting about 2.5M events/second.
We have 90 ingestion tasks for 1 of our data sources with task duration set to
1 hr. Whenever the tasks roll every hour, Kafka ingestion lag spikes up
anywhere from 3M to even 15M `druid.ingest.kafka.lag`. On further analysis, we
noted that while tasks are rolling, some of the active ingestion tasks are
stuck in `pause` state for a long time (sometimes up to 1.5-2 minutes) during
which those tasks aren't ingesting any data resulting in ingestion lag spike.
Logs from MM tasks with a huge gap between `pause` and `resume`
```
{"@timestamp":"2021-06-21T17:34:51.628Z", "log.level":"DEBUG",
"message":"Received pause command, pausing ingestion until resumed.",
"service.name":"druid/middleManager","event.dataset":"druid/middleManager.log","process.thread.name":"task-runner-0-priority-0","log.logger":"org.apache.druid.indexing.seekablestream.SeekableStreamIndexTaskRunner"}
{"@timestamp":"2021-06-21T17:36:27.089Z", "log.level":"DEBUG",
"message":"Received pause command, pausing ingestion until resumed.",
"service.name":"druid/middleManager","event.dataset":"druid/middleManager.log","process.thread.name":"task-runner-0-priority-0","log.logger":"org.apache.druid.indexing.seekablestream.SeekableStreamIndexTaskRunner"}
{"@timestamp":"2021-06-21T17:36:27.097Z", "log.level":"DEBUG",
"message":"Received resume command, resuming ingestion.",
"service.name":"druid/middleManager","event.dataset":"druid/middleManager.log","process.thread.name":"task-runner-0-priority-0","log.logger":"org.apache.druid.indexing.seekablestream.SeekableStreamIndexTaskRunner"}
```
In the above loglines, we can see that that task was in `pause` state from
`17:34:51` to `17:36:27`.
On further analysis, we figured out that the MM taskRunner goes to a pause
state when it is requesting a `checkpoint` notice
[here](https://github.com/apache/druid/blob/8264203cee688607091232897749e959e7706010/indexing-service/src/main/java/org/apache/druid/indexing/seekablestream/SeekableStreamIndexTaskRunner.java#L729).
From the time the taskRunner submits the checkpoint notice, it actually
takes around 1.5 minutes for the coordinator to actually process this

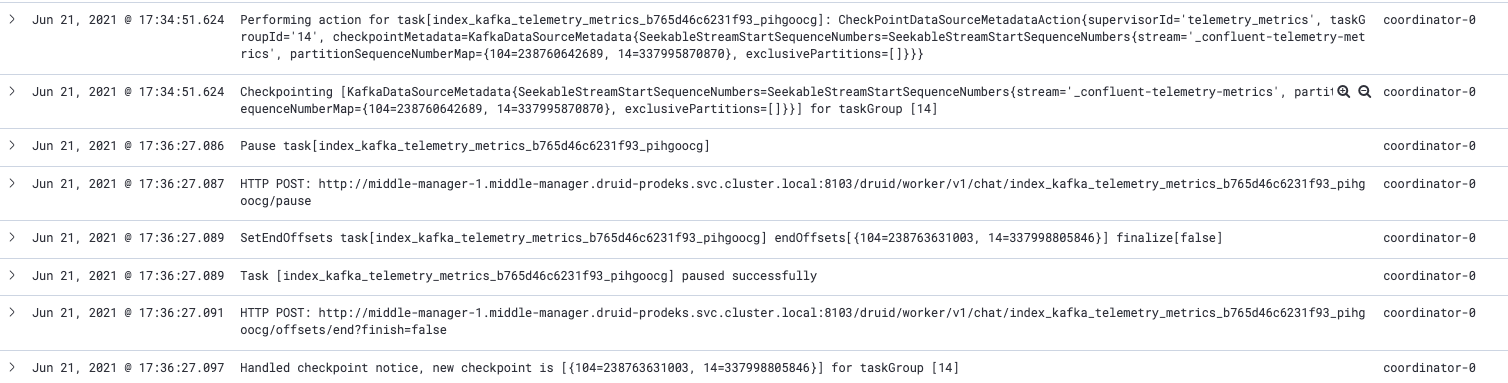

checkpoint notice. We can see it in the coordinator logs below for a specific
task.
Note that this long pause of ingestion task happens **only** when tasks are
rolling. Not during other times.
Our guess here is that, while tasks are rolling, the [notices
queue](https://github.com/confluentinc/druid/blob/0.21.0-confluent/indexing-service/src/main/java/org/apache/druid/indexing/seekablestream/supervisor/SeekableStreamSupervisor.java#L752)
has a lot of notices in them and each notice takes a long time to be processed
thus causing significant delay in the `checkpoint` notice as well to be
processed once its added to the queue.
Currently, we do not have logs in place to figure out how many notices are
there in this queue at any point and how long does each notice takes to get
executed.
Spent some more time analyzing further and we saw that some of following
functions
[here](https://github.com/apache/druid/blob/master/indexing-service/src/main/java/org/apache/druid/indexing/seekablestream/supervisor/SeekableStreamSupervisor.java#L1214)
are taking multiple seconds when tasks are rolling as opposed to few
milliseconds when tasks aren't.
```
discoverTasks();
updateTaskStatus();
checkTaskDuration();
checkPendingCompletionTasks();
checkCurrentTaskState();
```
And this could be the reason why each notice is taking a long time to get
processed. This is as far as we got wrt debugging.
--
