jasonk000 opened a new pull request, #12177:
URL: https://github.com/apache/druid/pull/12177
### Overview and benefits
This introduces a `tree` to the `flattenSpec` which allows faster JSON
parsing than `jq` and `path` parsing types in the event that a simple
hierarchical lookup is required.
For one of our high-volume ingestion tasks, this reduces middle manager CPU
load by 25%. This task presently has 3 `root` fields and 8 additional `path`
fields of the form
```
{
"type": "path",
"name": "task_detail",
"expr": "$.metadata.detail"
},
```
Replacing this with a hierarchical lookup as follows:
```
{
"type": "tree",
"name": "task_detail",
"exprs": ["metadata", "detail"]
},
```

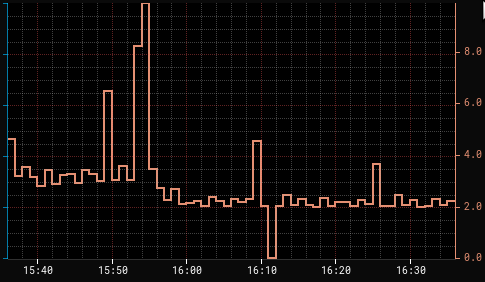

In this sample, a switch to the new `tree` spec is submitted at 15.54, and
after a moment or two the CPU shifts down at a notably lower total utilization
from 3 cores to 2.3 cores.
### Implementation decision
The goal is to introduce the ability to (1) provide a list of expressions
instead of a single expression, and, a new `tree` type.
```
{
"type": "tree", <-- new type
"name": "task_detail",
"exprs": ["metadata", "detail"] <-- name of json keys to traverse as a
List<String>
},
```
The crux of the change is this tree extractor for loop (below) and the
requisite parser configuration to ensure it is called.
```
public Function<JsonNode, Object> makeJsonTreeExtractor(final List<String>
exprs)
{
String[] exprsArray = exprs.toArray(new String[0]);
return node -> {
JsonNode target = node;
for (String expr : exprsArray) {
target = target.get(expr);
if (target == null) {
break;
}
}
return valueConversionFunction(target);
};
}
```
Key consideration was to avoid any backwards compatibility issues with
deployments, so I opted for using a separate `exprs` parameter rather than
overload the `expr` parameter.
### Changes required
The change adds enum entries, the required field spec to parse `List<String>
exprs` to configuration, and validate that `exprs` is only provided for the
`tree` type.
Then, tie it all into the `ObjectFlatteners` and `JSONFlattenerMaker` with a
new `makeJsonTreeExtractor` that iterates each of the keys as a hierarchy in
the dataset.
#### Supporting changes
- Update a lot of tests to explicitly verify the parameters are loaded.
- Update `docs/ingestion-data-formats.md` to include a description of the
`tree` type and the `exprs` parameter.
- Update Avro, Orc, and Parquet flatteners to acknowledge `tree` but only
work with a depth of 1; (would welcome guidance here).
- Added benchmarks to `FlattenJSONBenchmark` to confirm improvements in
flattener layer
### Additional supporting data
On flamegraphs, `Flattener` related code before the change makes up ~49% of
the `task-runner-xx` threads utilisation; after the change only ~16% of the
`task-runner-xx` thread is used running `Flattener` related code.
<hr>
This PR has:
- [x] been self-reviewed.
- [x] added documentation for new or modified features or behaviors.
- [x] added Javadocs for most classes and all non-trivial methods. Linked
related entities via Javadoc links.
- [ ] N/A added or updated version, license, or notice information in
[licenses.yaml](https://github.com/apache/druid/blob/master/dev/license.md)
- [ ] N/A added comments explaining the "why" and the intent of the code
wherever would not be obvious for an unfamiliar reader.
- [x] added unit tests or modified existing tests to cover new code paths,
ensuring the threshold for [code
coverage](https://github.com/apache/druid/blob/master/dev/code-review/code-coverage.md)
is met.
- [ ] added integration tests.
- [x] been tested in a test Druid cluster.
--
