plainheart edited a comment on pull request #12673: URL: https://github.com/apache/incubator-echarts/pull/12673#issuecomment-634829856

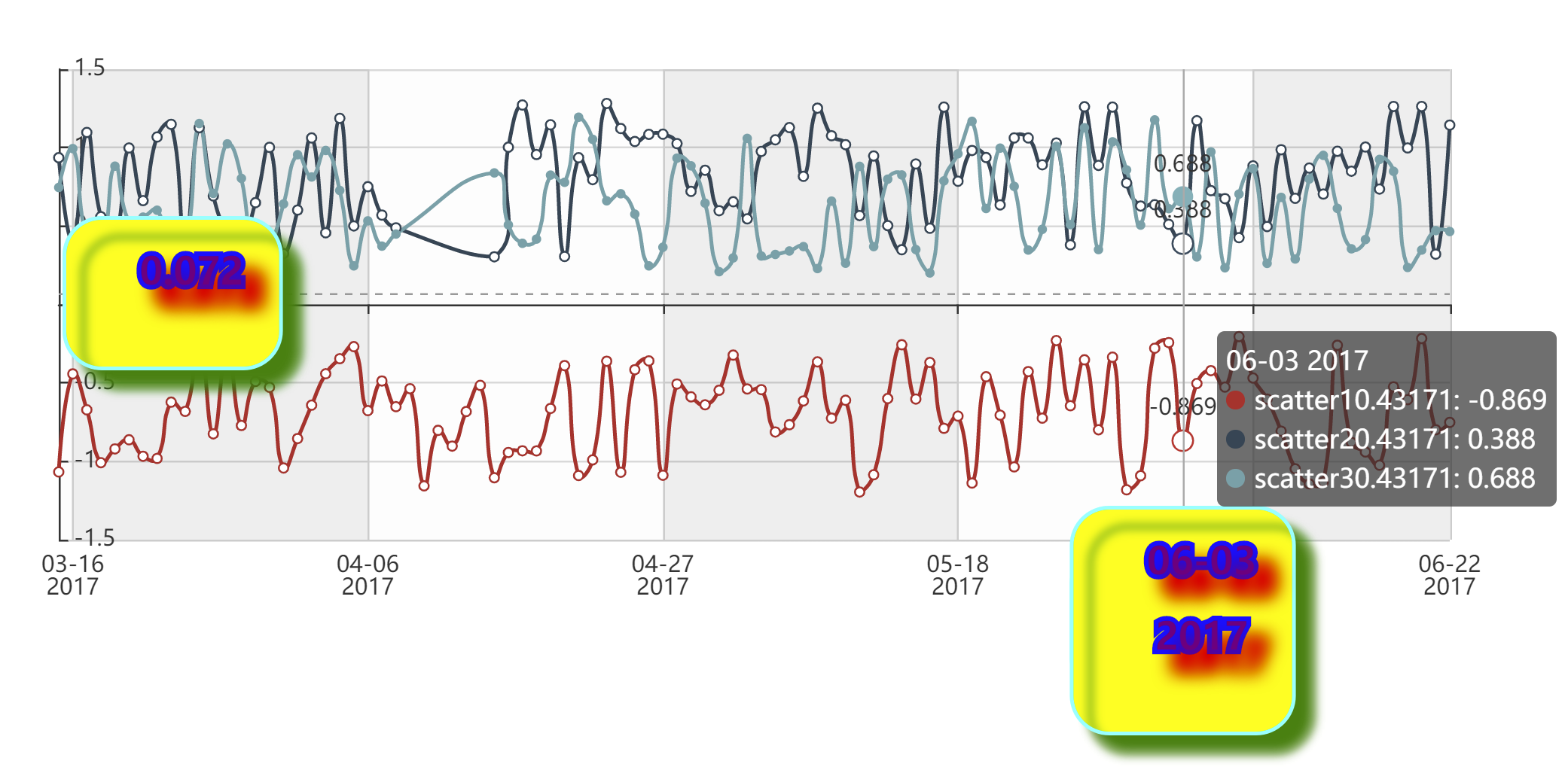

Hi~ @susiwen8 Thanks for your fixing. I've been inspired by following code lines from @Ovilia ~ Maybe we can make some changes like this https://github.com/apache/incubator-echarts/blob/5a94212c43f0a4b5a8da7c26cf20192d29fb1d02/src/component/tooltip/TooltipRichContent.js#L139-L147 As mentioned above, there may be no need to solve this issue as present scheme. ```js var textRect = textContain.getBoundingRect(text, font, null, null, null, labelModel.get('lineHeight')); ``` Some changes are as follows ```js style: graphic.setTextStyle({}, labelModel, { text: text, fill: bgColor, stroke: labelModel.get('borderColor') || 'transparent', lineWidth: labelModel.get('borderWidth') || 0, textFont: font, textPosition: 'inside', textPadding: paddings, textFill: labelModel.getTextColor() }) ``` This can solve the issue that `lineHeight` is invalid and in the meanwhile, there are more supported properties of label.(Note that some new supported properties are now missing description in the official document) ```js label: { fontWeight: 'bold', fontSize: 20, textShadowBlur: 10, textShadowOffsetX: 10, textShadowOffsetY: 10, textShadowColor: 'red', backgroundColor: 'yellow', textBorderColor: 'blue', textBorderWidth: 5, borderWidth: 2, borderColor: 'cyan', padding: [10, 20, 30, 40], shadowColor: 'green', shadowBlur: 5, shadowOffsetX: 10, shadowOffsetY: 10, borderRadius: 20, lineHeight: 40, color: 'purple', // width: 400, // rich is needed, but rich is TODO // height: 200, // rich is needed, but rich is TODO } ``` A test screenshot(Just for test, No beauty) ![image](https://user-images.githubusercontent.com/26999792/83052334-bec49100-a081-11ea-9ea7-504e578b1b52.png) Looks good. In the last, that's a pity rich label is still a TODO. I have no idea about it by now, but I think we can refer to implements of [TooltipRichContent](https://github.com/apache/incubator-echarts/blob/5a94212c43f0a4b5a8da7c26cf20192d29fb1d02/src/component/tooltip/TooltipRichContent.js#L74-L108) Let we make it right together~ : ) ---------------------------------------------------------------- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. For queries about this service, please contact Infrastructure at: us...@infra.apache.org --------------------------------------------------------------------- To unsubscribe, e-mail: commits-unsubscr...@echarts.apache.org For additional commands, e-mail: commits-h...@echarts.apache.org
