davids5 commented on a change in pull request #1369:
URL: https://github.com/apache/incubator-nuttx/pull/1369#discussion_r488176858
##########
File path: arch/arm/src/arm/arm_initialstate.c
##########
@@ -52,13 +52,7 @@
* Pre-processor Definitions
****************************************************************************/
-/****************************************************************************
- * Private Data
- ****************************************************************************/
-
-/****************************************************************************
- * Private Functions
- ****************************************************************************/
+#define IDLETHREAD_STACKMARGIN 128
Review comment:
@xiaoxiang781216 Does this
```
diff --git a/arch/arm/src/common/arm_usestack.c
b/arch/arm/src/common/arm_usestack.c
index b59b3baf39..6cef37b595 100644
--- a/arch/arm/src/common/arm_usestack.c
+++ b/arch/arm/src/common/arm_usestack.c
@@ -153,11 +153,54 @@ int up_use_stack(struct tcb_s *tcb, void *stack,
size_t stack_size)
if (tcb->pid == 0)
{
/* The whole idle thread stack can't be colored here
- * because the code is running on the idle thead now.
+ * because the code is running on the idle thread now.
+ *
+ * So let's see what we can do
*/
+
+ /* Some address on stack */
+
+ volatile uint32_t marker1;
+
+ /* Use register based variables */
+
+ register volatile uint32_t *sp;
+ register uint32_t size;
+
+ /* Another address on stack */
+
+ volatile uint32_t marker2;
+
+ /* Assume we can not get a better value. */
+
+ size = tcb->adj_stack_size - STACK_MARGIN_IDLE;
+
+ /* point to the lower or the 2 address on the stack */
+
+ sp = (&marker1 > &marker2) ? &marker2 : &marker1;
+
+
+ /* Do a sanity check,
+ * a) markers 1 and 2 are not the same
+ * b) markers 1 and 2 are next each other (nothing in between)
+ * c) sp is in this stack's extent
+ */
+
+ if (&marker1 != &marker2 &&
+ sizeof(uint32_t) == (&marker1 > &marker2 ?
+ (uint8_t *)&marker1 - (uint8_t *)&marker2 :
+ (uint8_t *)&marker2 - (uint8_t *)&marker1) &&
+ (sp > (volatile uint32_t *)stack &&
+ sp < (volatile uint32_t *)
tcb->adj_stack_ptr) &&
+ (uintptr_t)sp - (uintptr_t)stack > size)
+ {
+ /* Use the batter value */
+
+ size = (uintptr_t) sp - (uintptr_t)stack;
+ }
arm_stack_color((FAR void *)((uintptr_t)tcb->adj_stack_ptr -
- tcb->adj_stack_size), tcb->adj_stack_size - STACK_MARGIN_IDLE);
+ tcb->adj_stack_size), size);
}
else
{
```
address all you concerns.

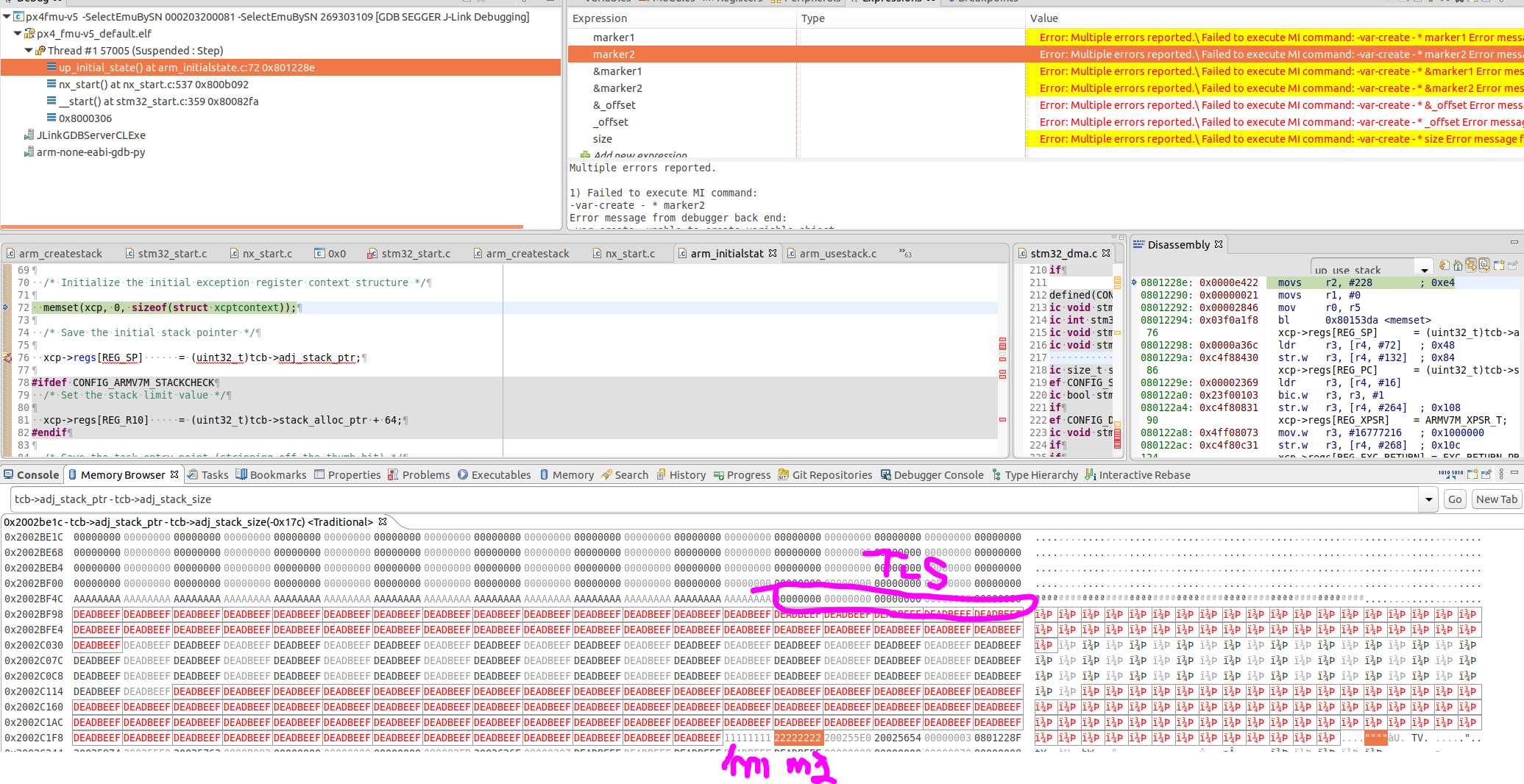

Full Stack colorizing
119 bytes better
----------------------------------------------------------------
