dboyzhong opened a new issue #1731:
URL: https://github.com/apache/incubator-brpc/issues/1731
**Describe the bug (描述bug)**
使用https 方式连接Http服务，偶现ssl 证书错误，日志如下：
W0325 19:39:20.771101 204547 src/brpc/socket.cpp:1899] Fail to read from
ssl_fd=463: error:0606506D:digital envelope routines:EVP_DecryptFinal_ex:wrong
final block length
W0325 19:39:20.771117 204547 src/brpc/input_messenger.cpp:205] sso read
count: -1socket desc: Socket{id=8589936411 fd=463 addr=10.24.2.62:443:17742}
(0x0x7f923b7178c0): SSL related operation failed
**To Reproduce (复现方法)**
偶发，不易复现
**Expected behavior (期望行为)**
**Versions (各种版本)**
OS: CentOS7
Compiler: G++4.8
brpc: 0.9.6 & 1.0.0
protobuf:
**Additional context/screenshots (更多上下文/截图)**
原因分析：
1.
代码中加log（iobuf.cpp）发现，https请求的数据实际已经接收完整，SSL_Read触发2次：第一次返回全部http数据，第二次返回-1，错误为：wrong
final block length。
2.

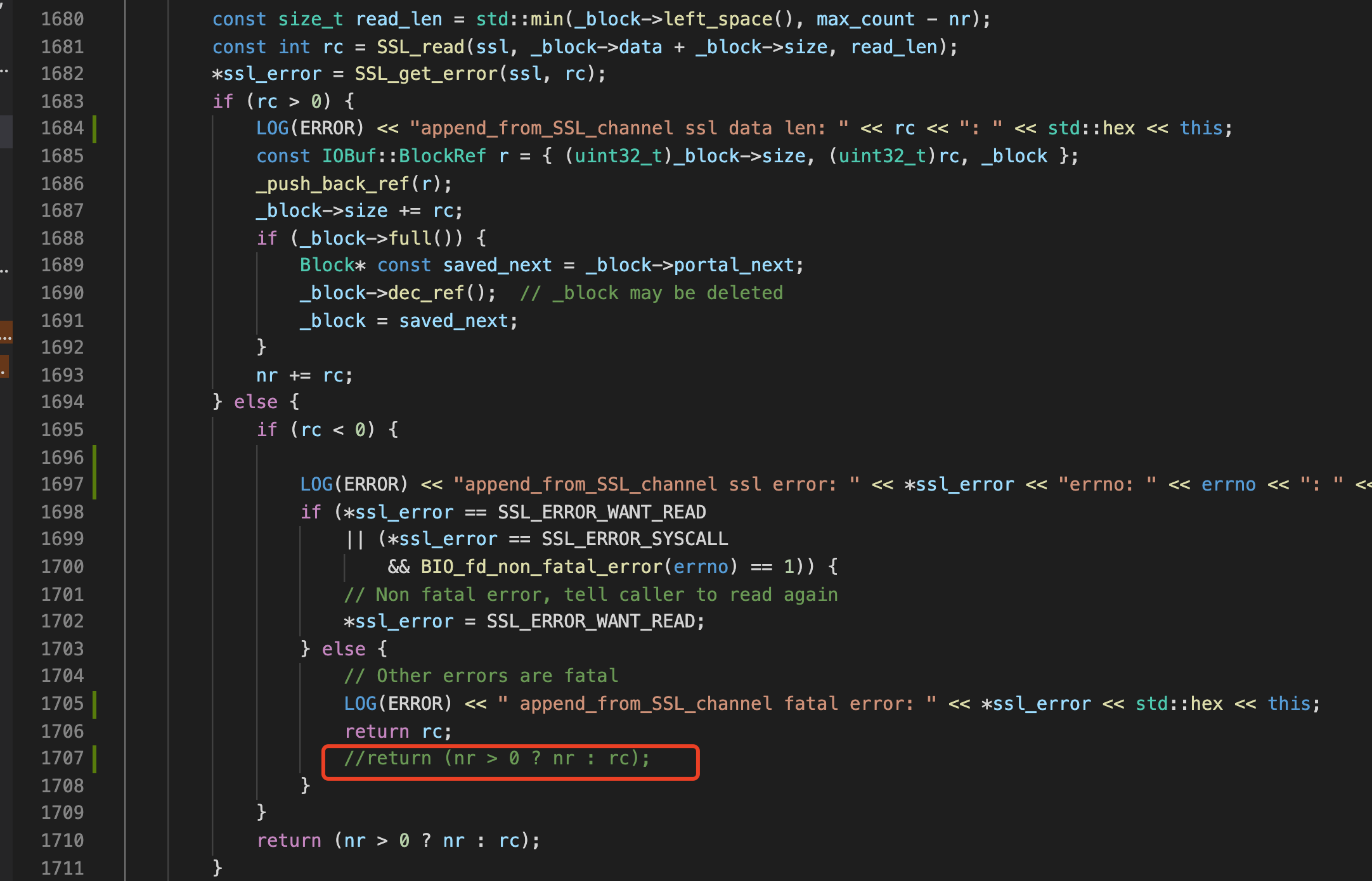

2.1 从
图中看，在1693行读成功后，循环继续读，引二次读错误，在1706行直接返回-1了，如果返回第一次读成功的字节数：1707行，最终的http请求仍会成功。
代码如下：
`ssize_t IOPortal::append_from_SSL_channel(
SSL* ssl, int* ssl_error, size_t max_count) {
size_t nr = 0;
do {
if (!_block) {
_block = iobuf::acquire_tls_block();
if (BAIDU_UNLIKELY(!_block)) {
errno = ENOMEM;
*ssl_error = SSL_ERROR_SYSCALL;
return -1;
}
}
const size_t read_len = std::min(_block->left_space(), max_count -
nr);
const int rc = SSL_read(ssl, _block->data + _block->size, read_len);
*ssl_error = SSL_get_error(ssl, rc);
if (rc > 0) {
LOG(ERROR) << "append_from_SSL_channel ssl data len: " << rc <<
": " << std::hex << this;
const IOBuf::BlockRef r = { (uint32_t)_block->size,
(uint32_t)rc, _block };
_push_back_ref(r);
_block->size += rc;
if (_block->full()) {
Block* const saved_next = _block->portal_next;
_block->dec_ref(); // _block may be deleted
_block = saved_next;
}
nr += rc;
} else {
if (rc < 0) {
LOG(ERROR) << "append_from_SSL_channel ssl error: " <<
*ssl_error << "errno: " << errno << ": " << std::hex << this ;
if (*ssl_error == SSL_ERROR_WANT_READ
|| (*ssl_error == SSL_ERROR_SYSCALL
&& BIO_fd_non_fatal_error(errno) == 1)) {
// Non fatal error, tell caller to read again
*ssl_error = SSL_ERROR_WANT_READ;
} else {
// Other errors are fatal
LOG(ERROR) << " append_from_SSL_channel fatal error: "
<< *ssl_error << std::hex << this;
return rc;
//return (nr > 0 ? nr : rc);
}
}
return (nr > 0 ? nr : rc);
}
} while (nr < max_count);
return nr;
}`
2.2 与http
请求不同的是，在iobuf.cpp中，http使用readv只读一次，就返回上层，而不是类似https循环读至EOF或错误再返回上层。所以上http请求上层可以获得正常数据：见：ssize_t
IOPortal::pappend_from_file_descriptor(）实现。
3. 解决方案：
3.1 IOPortal::append_from_SSL_channel在SSL_read
返回错误后，应判断当前已读数据数量，如果已读数据>0，则返回数据个数：
--
