[GitHub] shanewds opened a new issue #8542: echarts保存图片显示模糊，如何解决?数据来源于后台返回的值.

Mon, 18 Jun 2018 23:47:02 -0700

shanewds opened a new issue #8542: echarts保存图片显示模糊，如何解决?数据来源于后台返回的值.
URL: https://github.com/apache/incubator-echarts/issues/8542


   <!DOCTYPE html>
   <html>
   <head>
       <meta charset="utf-8">
       <title>ECharts</title>
       <!-- 引入 echarts.js -->
       <script src="js/echarts.js"></script>
   </head>
   <body>
       <!-- 为ECharts准备一个具备大小（宽高）的Dom -->
       <div id="main" style="width:500px;height:300px;"></div>
       <script type="text/javascript">

        /*   function myrefresh()
           {
           window.location.reload();
           }
           setTimeout('myrefresh()',3000); //指定几秒刷新一次*/

           // 基于准备好的dom，初始化echarts实例
           var myChart = echarts.init(document.getElementById('main'));

           // 指定图表的配置项和数据
            var option = {
                            title : {
                                text: '',
                                subtext: ''
                            },
                            tooltip : {
                                trigger: 'axis'
                            },
                            legend: {
                                data:['']
                            },

                            toolbox: {
                                show : true,
                                feature : {
                                    mark : {show: true},
                                    dataView : {show: true, readOnly: false},
                                    magicType : {show: true, type: [ 'bar']},
                                    restore : {show: true},
                                    saveAsImage : {show: true}
                                }
                            },
                            calculable : true,
                            xAxis : [
                                {
                                    type : 'category',
                                    data : ['avg','28日','29日','30日','1日']
                                }
                            ],
                            yAxis : [
                                {
                                    type : 'value'
                                }
                            ],
                            series : [
                                {
                                    name:'',
                                    type:'bar',
                                    data:[1520,699,1350,1805,2226],
                                    /* 显示数据到顶端*/
                                    itemStyle: {
                                             normal: {
                                                  lineStyle:{
                                                    color:'#EB3223'
                                              },

                                             label: {
                                                 show: true,
                                                 textStyle: {
                                                     fontWeight: 'bolder',
                                                     fontSize: '12',
                                                     fontFamily: '微软雅黑'
                                                 },
                                                 position: 'top'
                                             },
                                             color: function (params) {
                                                 var colorList = [
                                                     '#B02318', '#305866',
'#305866', '#305866',
                                                     '#305866', '#305866',
'#305866', '#305866',
                                                     '#305866', '#305866',
'#305866'
                                                 ];
                                                 return
colorList[params.dataIndex]
                                             }
                                         }
                                    },
                                    markPoint : {
                                        data : [

                                        ]
                                    },
                                    markLine : {
                                        data : [
                                          //{type : 'average', name: ''}
                                        ]
                                    }
                                }
                            ]
             };


           // 使用刚指定的配置项和数据显示图表。
           myChart.setOption(option);
       </script>
   </body>
   </html>

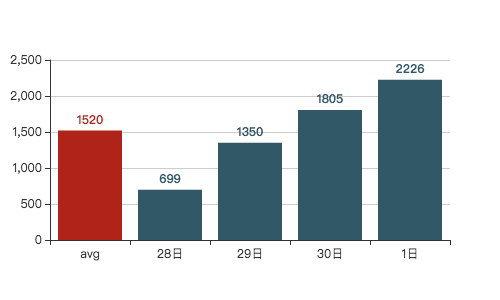

   图片显示如下:


![echarts](https://user-images.githubusercontent.com/19984920/41580960-7e52a4b2-73cf-11e8-9427-7aaaf10f5a5d.png)






----------------------------------------------------------------
