Hi,
I've been using this API for about a year to visualize my temperatures at
home. It has all worked out great until a couple of weeks ago when suddenly
the auto scale on the horizontal axis when using timeofday cuts values at
the end of the data table. It looks like all the data until the last
automatically created legend is in the graph but the rest of the values are
cut out. Below you can see some example code and a screenshot to visualize
the problem. I've tried to do a work around but have not succeded. My
question is if it is supposed to work like this or if it is a bug? If it is
supposed to work like that does abyone have a workaround that could work?
Example code:
<html>
<head>
<script type="text/javascript"
src="https://www.google.com/jsapi";></script>
<script type="text/javascript">
google.load("visualization", "1", {packages:["corechart"]});
google.setOnLoadCallback(drawChart);
function drawChart() {
var data = new google.visualization.DataTable();
data.addColumn('timeofday', 'Tid');
data.addColumn('number', 'Temperatur');
data.addRows([
[[0, 0, 0, 0], 2],
[[0, 5, 0, 0], 1],
[[0, 10, 0, 0], 4],
[[0, 15, 0, 0], 6],
[[0, 20, 0, 0], 6],
[[0, 25, 0, 0], 6],
[[0, 30, 0, 0], 6],
[[0, 35, 0, 0], 6],
[[0, 40, 0, 0], 6],
[[0, 45, 0, 0], 6],
[[0, 50, 0, 0], 6],
[[0, 55, 0, 0], 6],
[[1, 0, 0, 0], 6],
[[1, 5, 0, 0], 6]
]);
var options = {
title: 'Utomhus',
chartArea:{left:50,top:40,width:"85%",height:"85%"},
};
var chart = new
google.visualization.LineChart(document.getElementById('chart_div'));
chart.draw(data, options);
}
</script>
</head>
<body>
<div id="chart_div" style="width: 1280px; height: 500px;"></div>
</body>
</html>

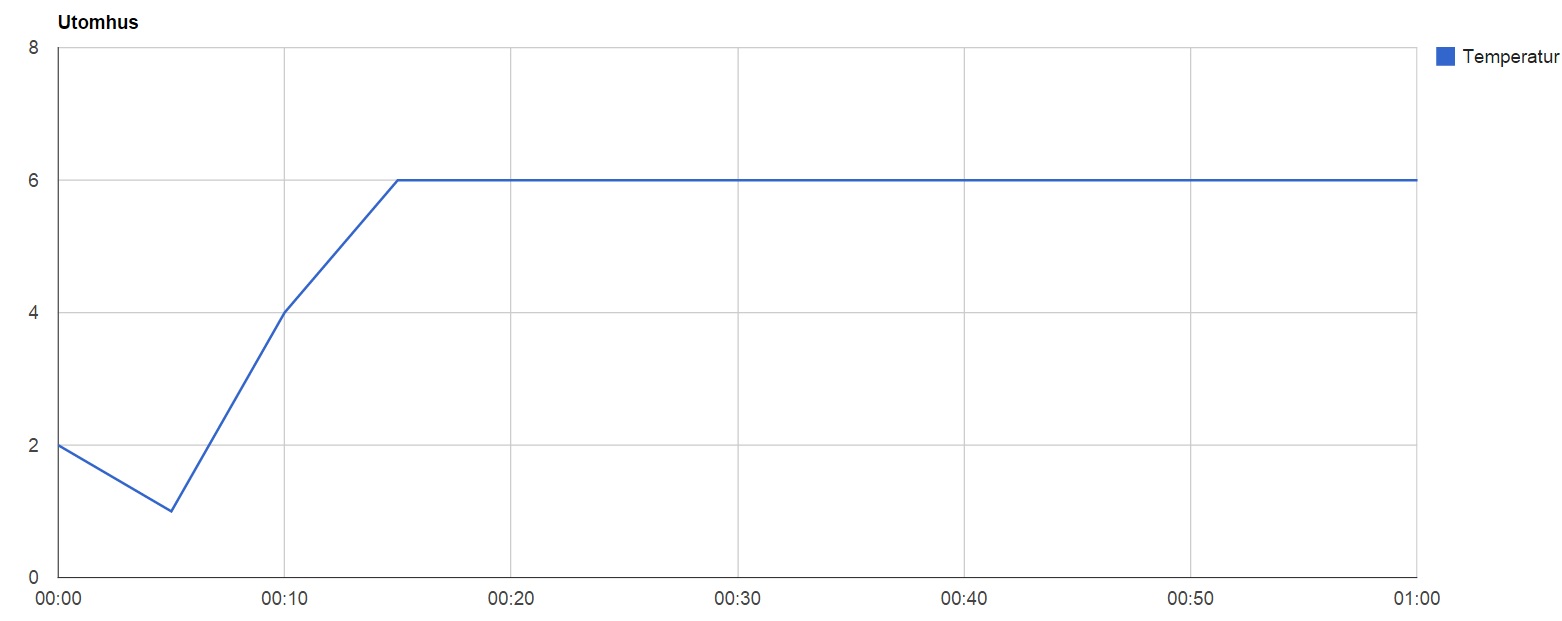

Picture:
<https://lh3.googleusercontent.com/-KtuJtjYXCFs/VTjZrjvQJsI/AAAAAAAAJqs/_LUBcpCUdiQ/s1600/Example.jpg>
--
