Hi, I've been trying to build myself a Quadcopter, and have now got to the point where I can control all four motors by PWM through the Droidalyzer (IOIO Mint).

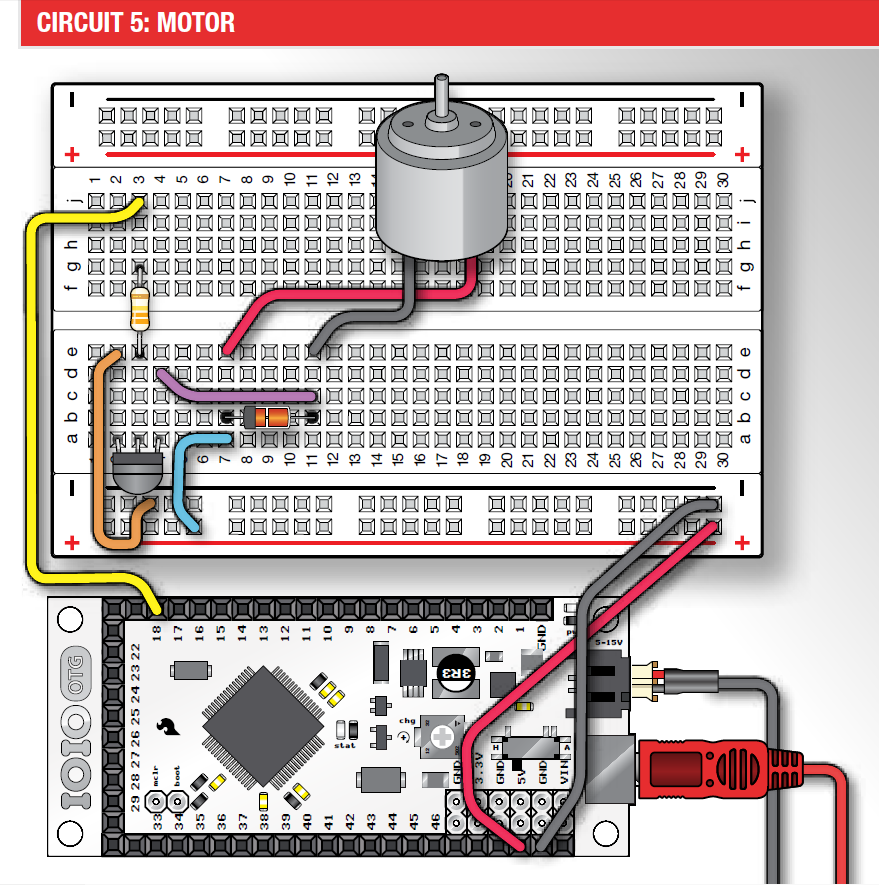

Here's a little demo: http://youtu.be/XHoQgWeXlys IOIO Mint PWM Quadcopter Test <http://youtu.be/XHoQgWeXlys> Once I get the blade rotation etc sort out I intend to do a proper test flight, but at the moment there does not seem to be enough power getting to the motors. I currently have them all on 3.3v, do you think powering them via the 5v will be ok? I have virtually nill information about the motors, other than they are from the V929 Quadcopter. http://www.myrcmart.com/wl-toys-v929-beetle-4ch-24ghz-4axis-quadcopter-blue-bnf-without-transmitter-p-4846.html I'm using the following circuit for the motors x4. <https://lh6.googleusercontent.com/-zXxsVVWMDYg/U27oYYRmdtI/AAAAAAAAAIU/K_Zbrht_HnU/s1600/IOIO+Motor+Circuit+Parts.png> <https://lh4.googleusercontent.com/-cICNqpcwRb0/U27oKwp-RqI/AAAAAAAAAIM/euumJnoqWDg/s1600/IOIO+Motor+Circuit.png> -- You received this message because you are subscribed to the Google Groups "ioio-users" group. To unsubscribe from this group and stop receiving emails from it, send an email to [email protected]. To post to this group, send email to [email protected]. Visit this group at http://groups.google.com/group/ioio-users. For more options, visit https://groups.google.com/d/optout.
