   Here are the size changes that I've made for this feature:
   ```
        var portDimensions = {
            width: 240,
   -        height: 50
   +        height: 48
        };
        var remotePortDimensions = {
            width: 240,
   -        height: 75
   +        height: 80
        };
   // process-group
        var dimensions = {
   -        width: 380,
   -        height: 172
   +        width: 384,
   +        height: 176
        };

   // remote process group
        var dimensions = {
   -        width: 380,
   -        height: 158
   +        width: 384,
   +        height: 176
        };
   ```

   Luckily, I didn't have to make drastic changes to accommodate the 8-pixel
snap alignment.  The most drastic shift is clearly the Remote Process Group's
height.  I scrolled in a bit to get a closer look (ignore the border artifacts
- they're from my screenshot utility):

   Before:

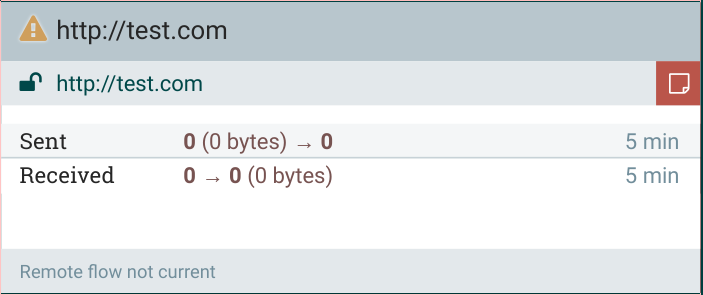

![image](https://user-images.githubusercontent.com/11933208/53594122-65f10a80-3b57-11e9-8338-528c26443b2c.png)

   After:

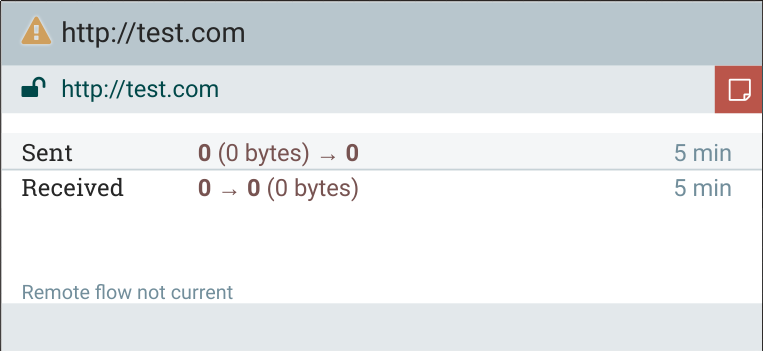

![image](https://user-images.githubusercontent.com/11933208/53594110-5f629300-3b57-11e9-9384-d5001006eb7b.png)

   I think this change warrants a slight adjustment.  The others probably don't
need any modifications.

   Here's the Process Group component, before and after:

   Before:

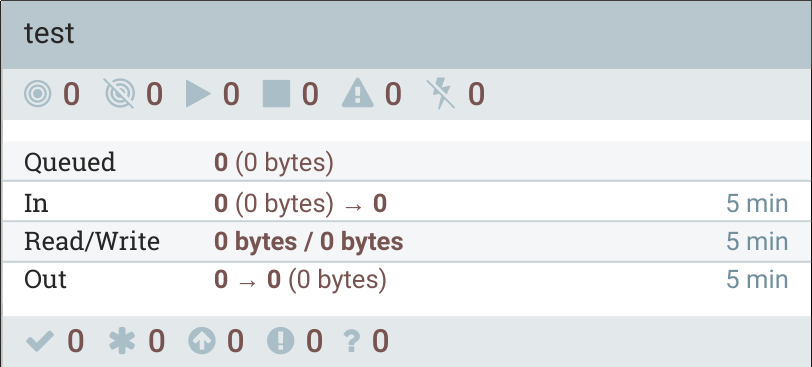

![image](https://user-images.githubusercontent.com/11933208/53594208-9afd5d00-3b57-11e9-9233-b69200781927.png)

   After:

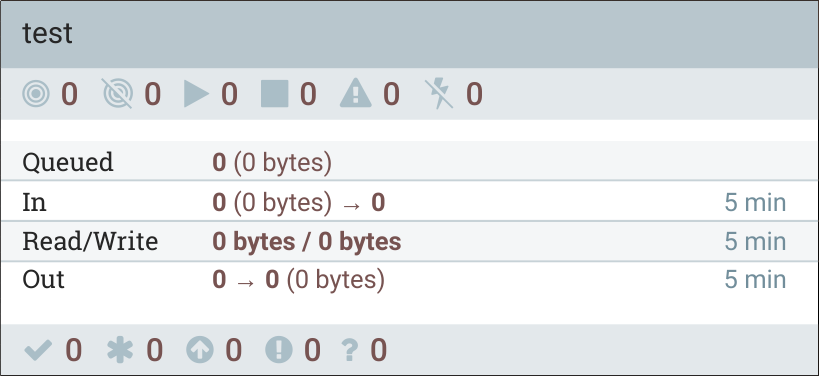

![image](https://user-images.githubusercontent.com/11933208/53594215-9e90e400-3b57-11e9-8282-259faea8048e.png)




----------------------------------------------------------------
