On 2009-05-28 09:08, Ton Voon wrote:
>
> > Any ideas what I can try next?
>
> Does the graph icon exist next to this service? What do you get when
> you click on the graph icon next to this service?
>
Nope - no icon next to check-engine. On those service items which _do_
have an icon, I get pretty pictures when I click on it.
> What is the hostname and service name? I'm wondering if there are
> funny characters which might not be encoded correctly.
The hostname of the collector is dynamic-31.oz.agile.tv.
The system being monitored is nas1p-sting.oz.agile.tv.
The service name is check-engine.
>
> Can you do a ls -lR on /usr/local/nagios/var/rrd/{hostname}/
> {servicename}
>
opsview-demo:~# ls -lR /usr/local/nagios/var/rrd/nas1p%2Dsting/check%2Dengine
/usr/local/nagios/var/rrd/nas1p%2Dsting/check%2Dengine:
total 0
drwxrwsr-x 2 nagios nagios 80 2009-05-28 14:34 idle
drwxrwsr-x 2 nagios nagios 80 2009-05-28 14:34 slices
drwxrwsr-x 2 nagios nagios 80 2009-05-28 14:34 system
drwxrwsr-x 2 nagios nagios 80 2009-05-28 14:34 user
drwxrwsr-x 2 nagios nagios 80 2009-05-28 14:34 wait
/usr/local/nagios/var/rrd/nas1p%2Dsting/check%2Dengine/idle:
total 24
-rw-rw-r-- 1 nagios nagios 24096 2009-05-29 10:44 value.rrd
/usr/local/nagios/var/rrd/nas1p%2Dsting/check%2Dengine/slices:
total 24
-rw-rw-r-- 1 nagios nagios 24096 2009-05-29 10:44 value.rrd
/usr/local/nagios/var/rrd/nas1p%2Dsting/check%2Dengine/system:
total 24
-rw-rw-r-- 1 nagios nagios 24096 2009-05-29 10:44 value.rrd
/usr/local/nagios/var/rrd/nas1p%2Dsting/check%2Dengine/user:
total 24
-rw-rw-r-- 1 nagios nagios 24096 2009-05-29 10:44 value.rrd
/usr/local/nagios/var/rrd/nas1p%2Dsting/check%2Dengine/wait:
total 24
-rw-rw-r-- 1 nagios nagios 24096 2009-05-29 10:44 value.rrd
In case it helps, the value.rrd from the slices directory is here:
http://bhepple.freeshell.org/value.rrd

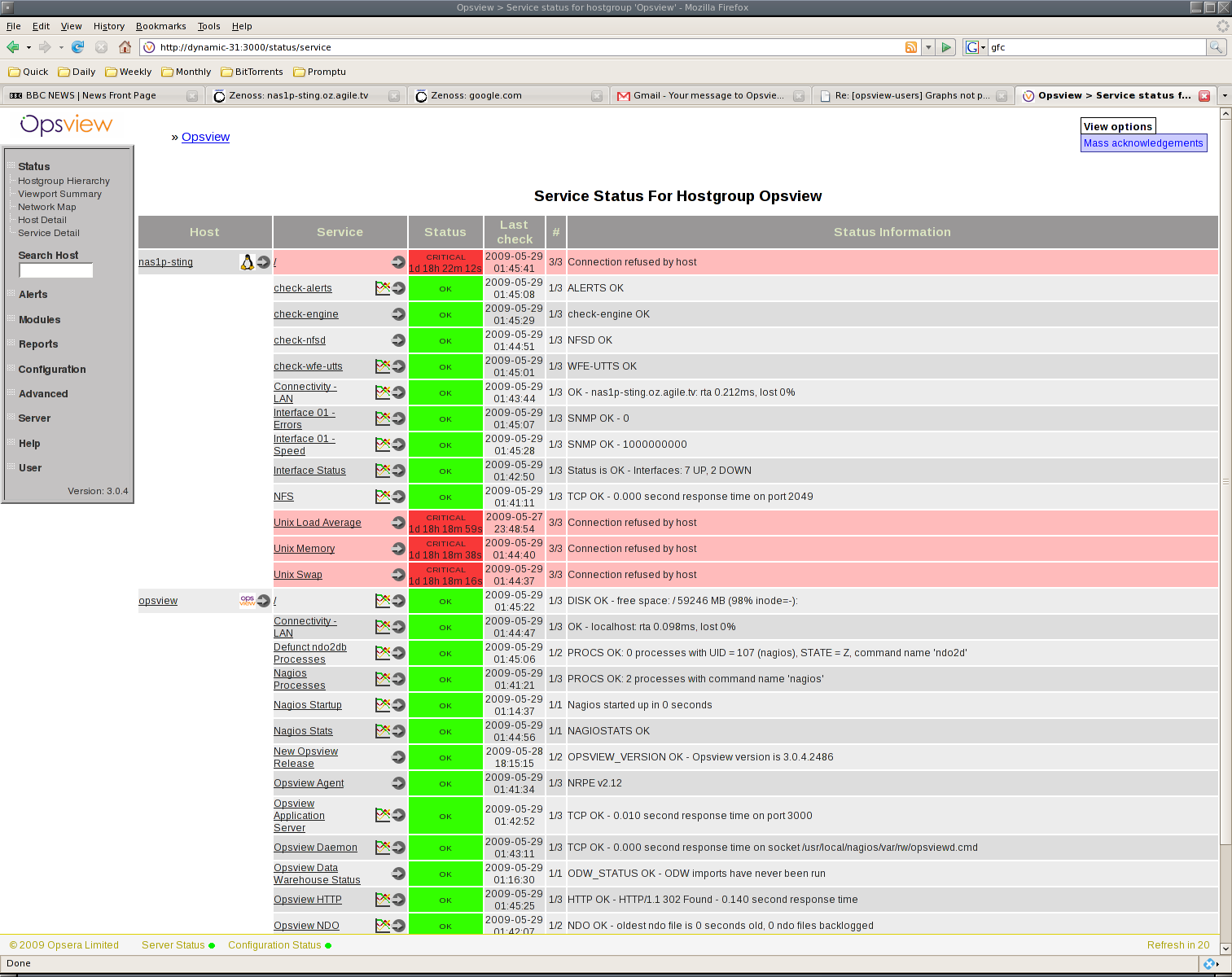

and a screen dump of the service status page is here:
http://bhepple.freeshell.org/service-status.png
I'm not worried about the "critical" items - I don't have nrpe
installed on the remote system. I just can't seem to get rid of those
service items from opsview. Another day for that one.
Thanks!
Bob
--
Bob Hepple <[email protected]>
ph: 07-5584-5908 Fx: 07-5575-9550
