hi guys, now im back in the loop a quick update made the tube spacers to prevent the chassis rails from doing this again

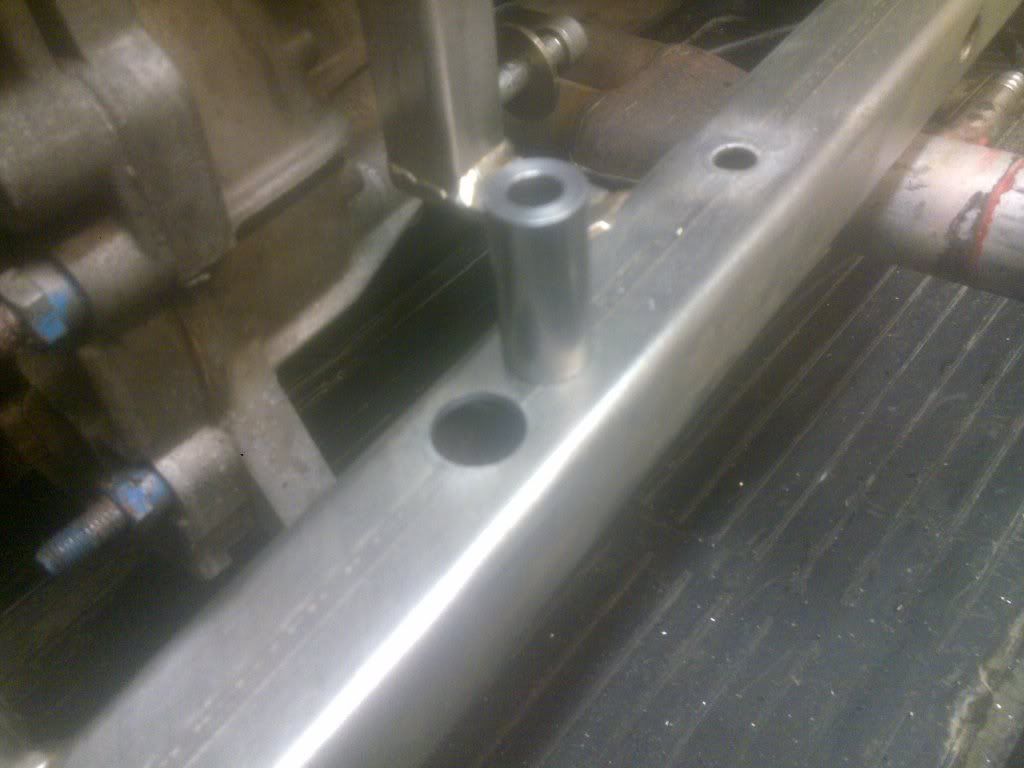

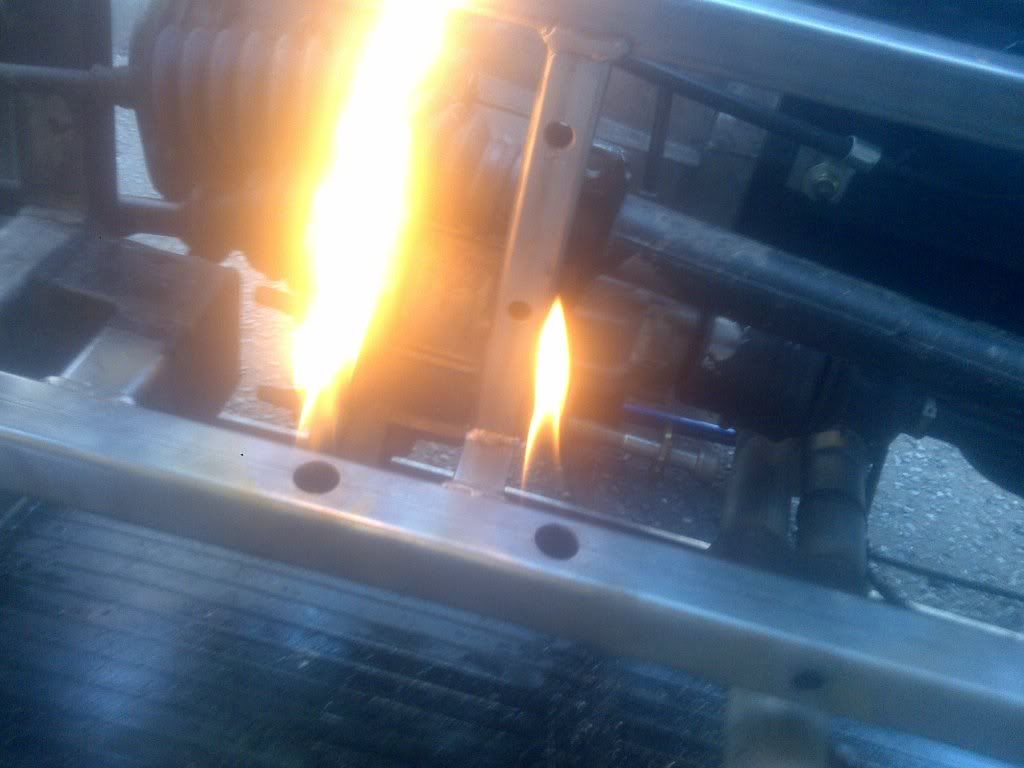

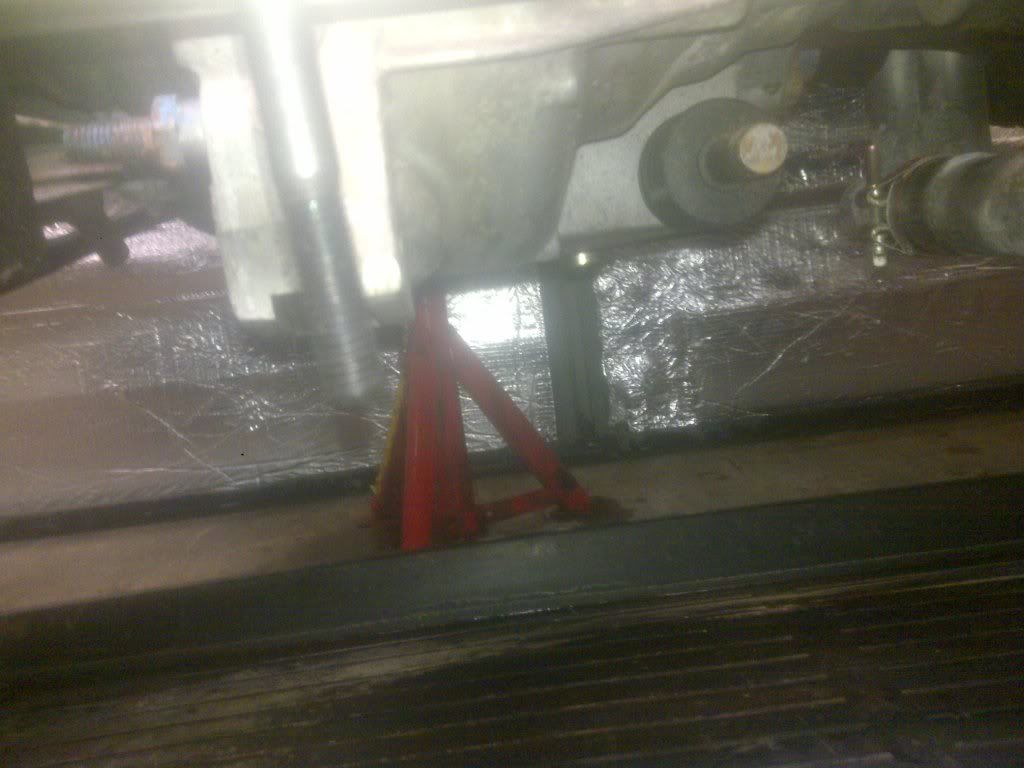

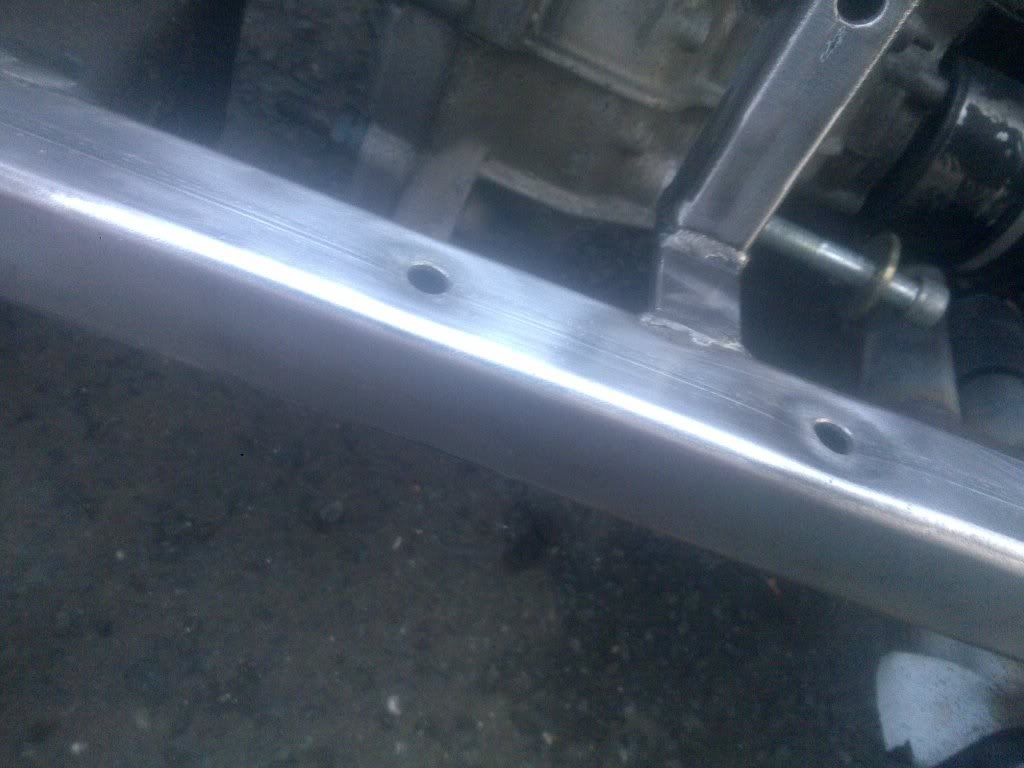

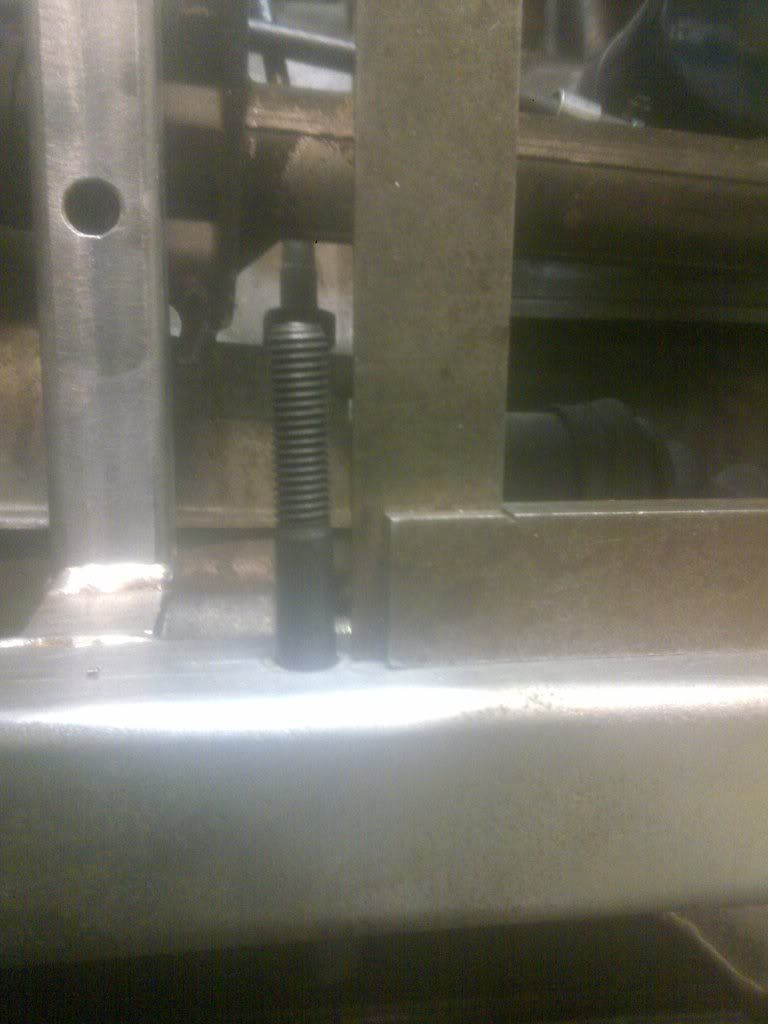

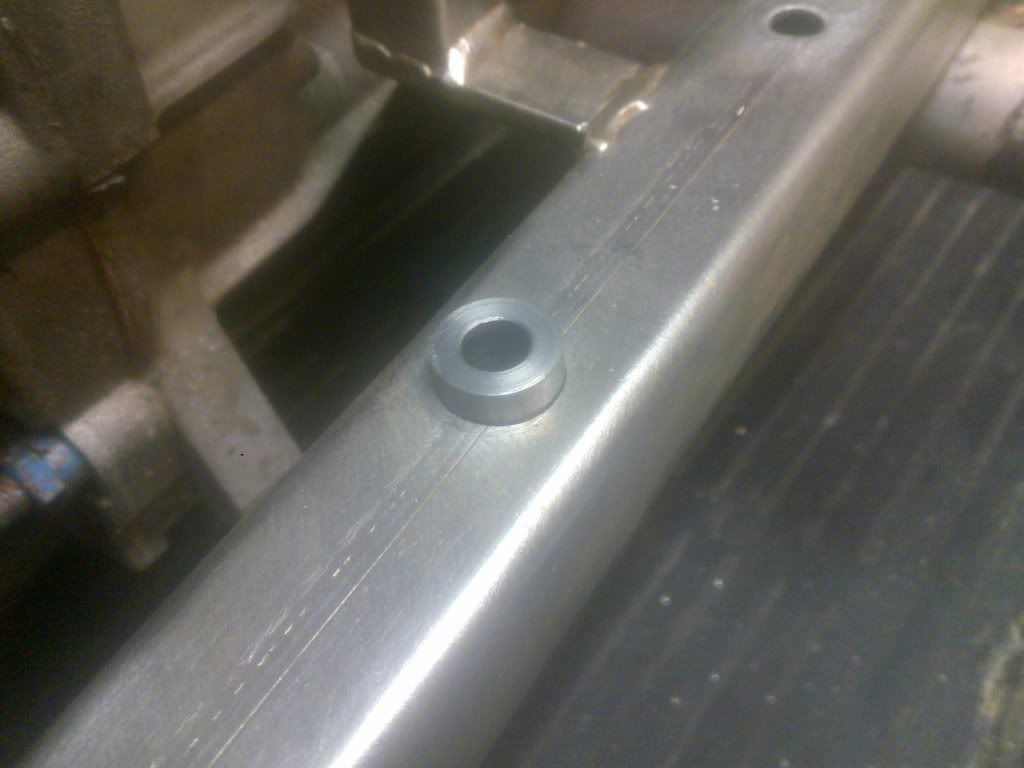

http://i120.photobucket.com/albums/o192/jindal/18022012041.jpg dishing inwards and crushing the tube, however i didn't anticipate the holes top to bottom not being in line :o http://i120.photobucket.com/albums/o192/jindal/01032012063.jpg http://i120.photobucket.com/albums/o192/jindal/01032012057.jpg so i had to correct them by filing the hole oval then round again in the right place but bigger, then i drilled them out 20mm to take the spacers i made which are 42mm long (to give a 5mm raise to weld to) and 20mm O.D http://i120.photobucket.com/albums/o192/jindal/01032012061.jpg trial fit http://i120.photobucket.com/albums/o192/jindal/01032012062.jpg then i took the wise decision to flush out the rearmost chassis tubes with copious amounts of solvent to ensure maximum cleanliness, then burnt off the vapors to be sure i didn't blow myself up when welding http://i120.photobucket.com/albums/o192/jindal/01032012067.jpg all was going well till the last tube spat a flame out into my very large drip tray that was half full with solvent turning the whole thing into a giant barbecue about to roast my engine :o flapping my arms about like a little girl didn't do much to dampen the flames and whacking it with my now scorched crawler board didn't help either, unfortunately the 3kg fire extinguisher made a right mess of everything but at least id put the flames out right, with that out the way (I'm sure ill laugh about it one day) i got on with the task of welding in the tubes http://i120.photobucket.com/albums/o192/jindal/01032012068.jpg not too bad either, I'm on track to etch the tubes this weekend and paint it during the week, if i can just find somebody who sells large enough penny washers to use inside the bulkhead ill have it looking like a car again soon..... -- You received this message because you are subscribed to the Google Groups "Quantum Owners Group" group. To post to this group, send email to [email protected] To unsubscribe from this group, send email to [email protected] For more options, visit this group at http://groups.google.com/group/quantumowners?hl=en IMPORTANT NOTE: All information presented herewith is provided on an "As Is" basis, without warranty or the implication thereof. Neither the Quantum Owners Club nor the individuals associated with the Quantum Owners Club or in the preparation of the above information shall have any liability to any person or entity with respect to liability, loss, or damage caused or alleged to be caused directly or indirectly by the instructions contained within this or related message(s).
