All: Got gun elevation done. Got the magazine air assist and trigger sequencing automated. (you command a paintball to fire and it pulls the trigger then blasts air down the magazine to feed the next ball.)

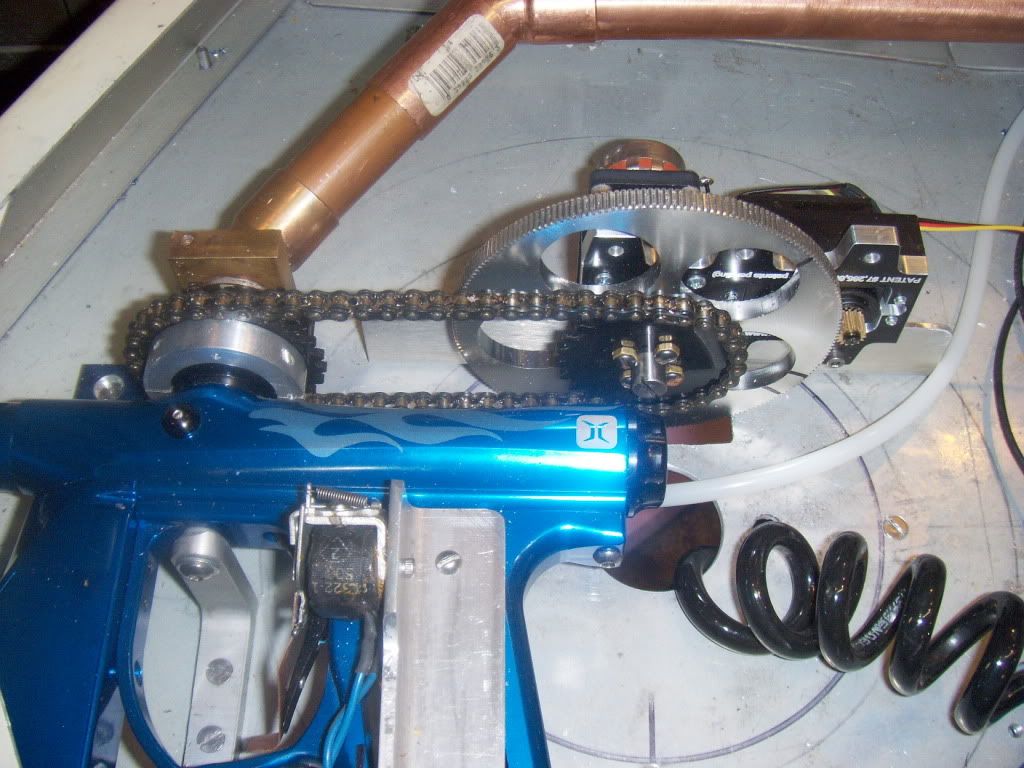

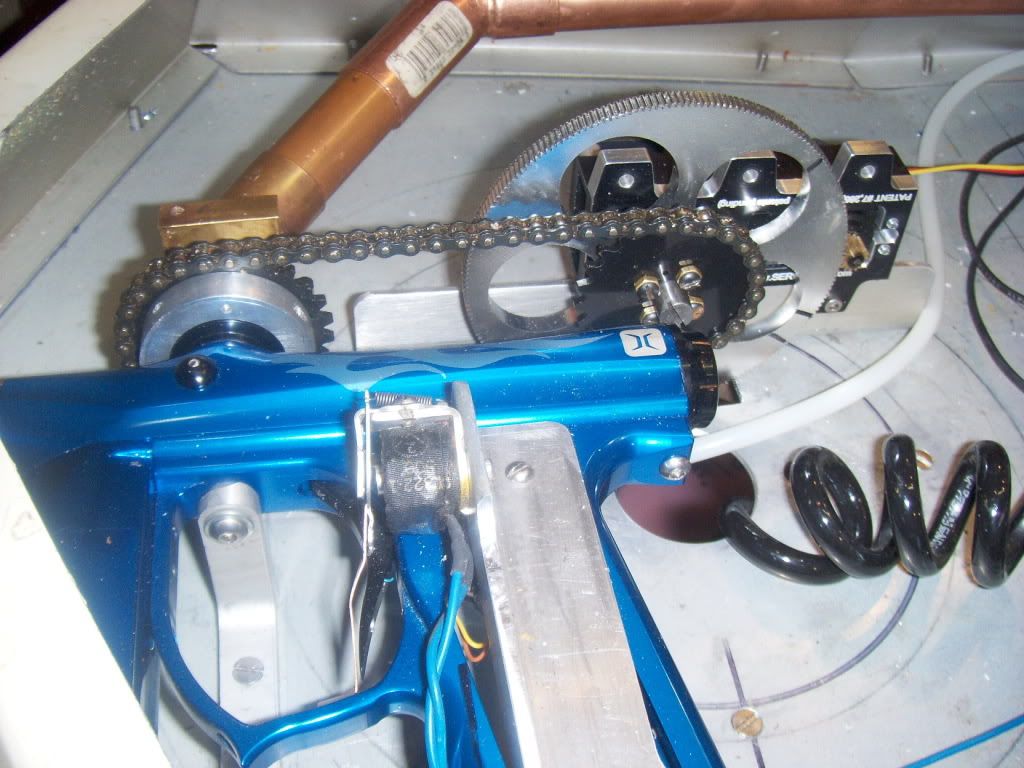

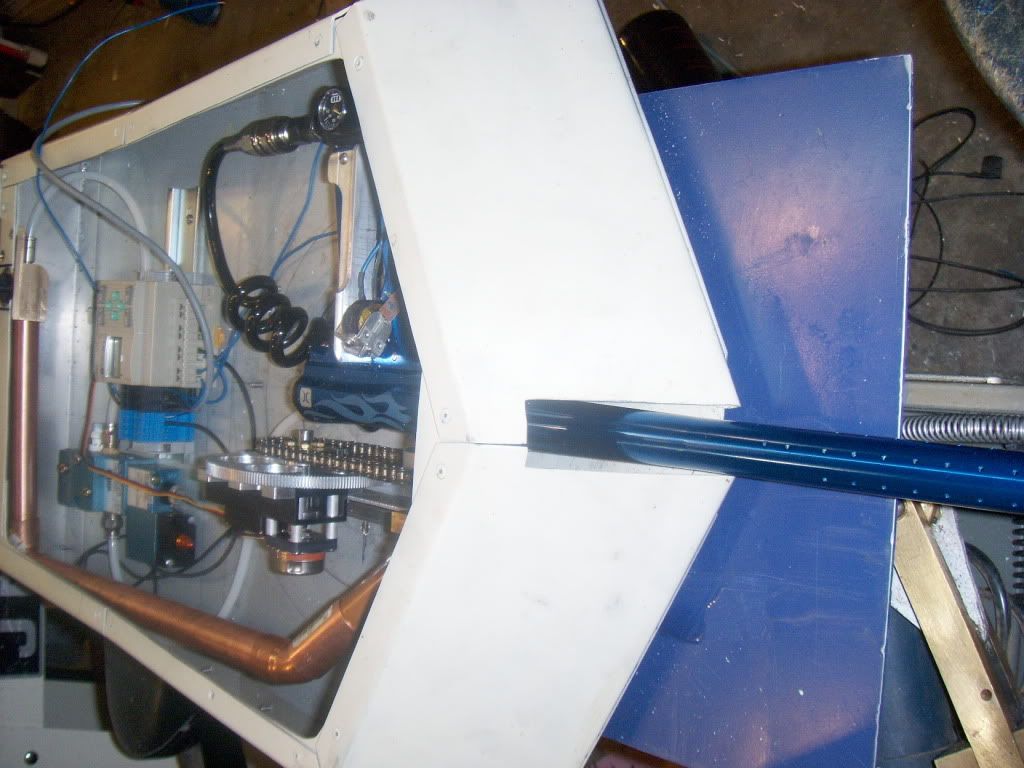

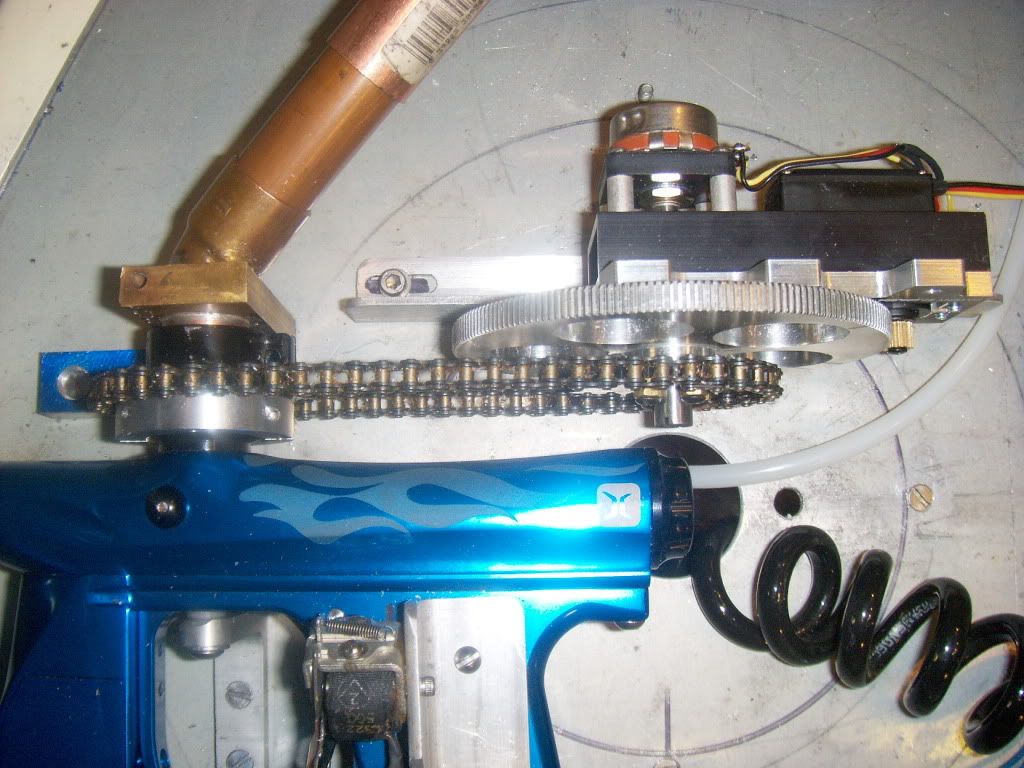

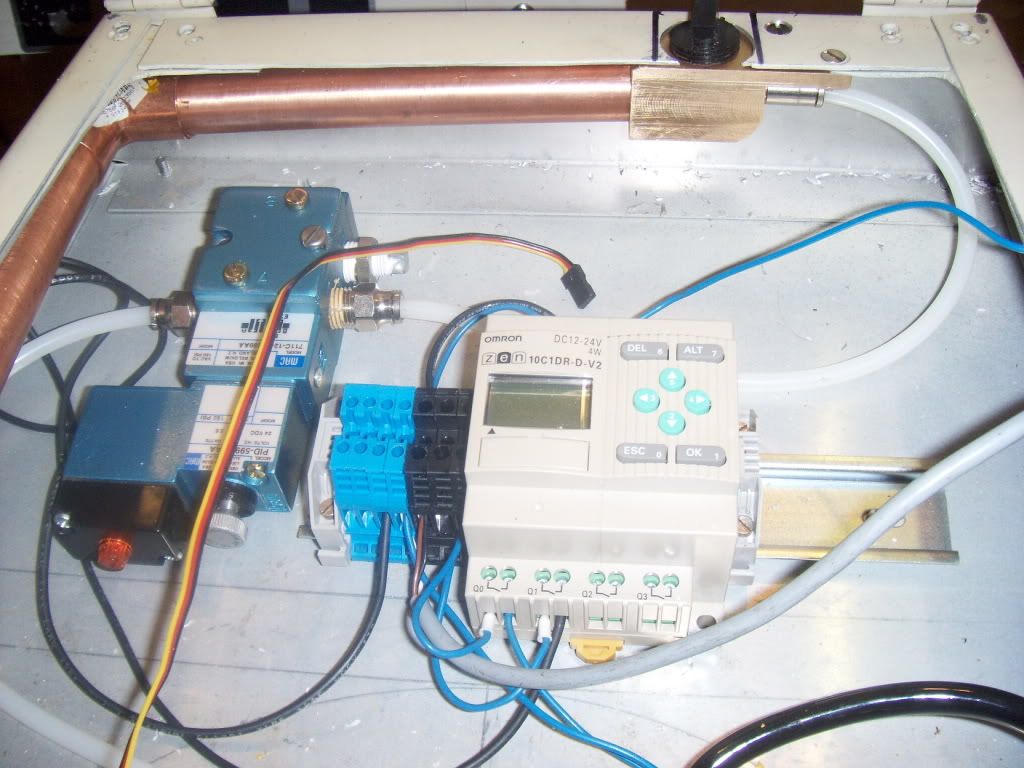

Over all picture of turret (with lid open): http://i192.photobucket.com/albums/z65/mm123521/HPIM0894.jpg Gun elevation chain drive and 600 inch ounce servo: http://i192.photobucket.com/albums/z65/mm123521/HPIM0897.jpg http://i192.photobucket.com/albums/z65/mm123521/HPIM0896.jpg http://i192.photobucket.com/albums/z65/mm123521/HPIM0893.jpg Magazine air assist valve and trigger sequencing system: http://i192.photobucket.com/albums/z65/mm123521/HPIM0895.jpg The Magazine air assist, blasts a puff of air down the magazine to move the balls. This is the first time the system was tested with the automated timing. It worked great, but sucked a lot of air 120 shots for a tank (63 cubic inch, 3000 PSI). I can adjust air pulse duration and pressure. When I get more paintballs, i'll try and optomize air useage. I can still switch to a 68 cubic inch 4500, psi tank. Mark -- You are currently subscribed to the "R/C Tank Combat" group. To post a message, send email to [email protected] To unsubscribe, send email to [email protected] Visit the group at http://groups.google.com/group/rctankcombat
