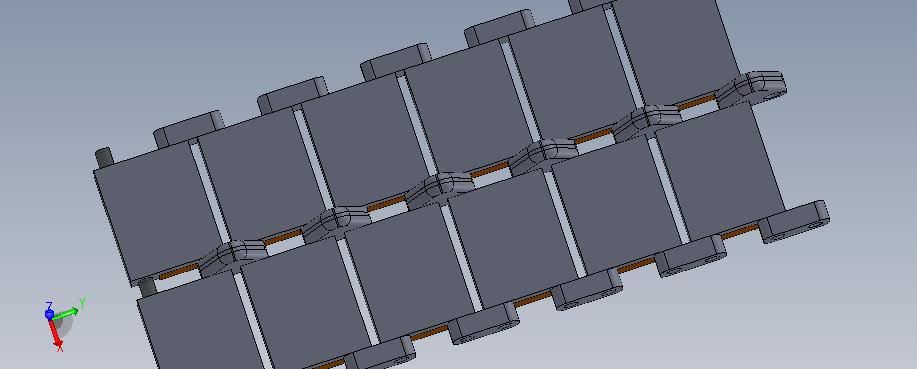

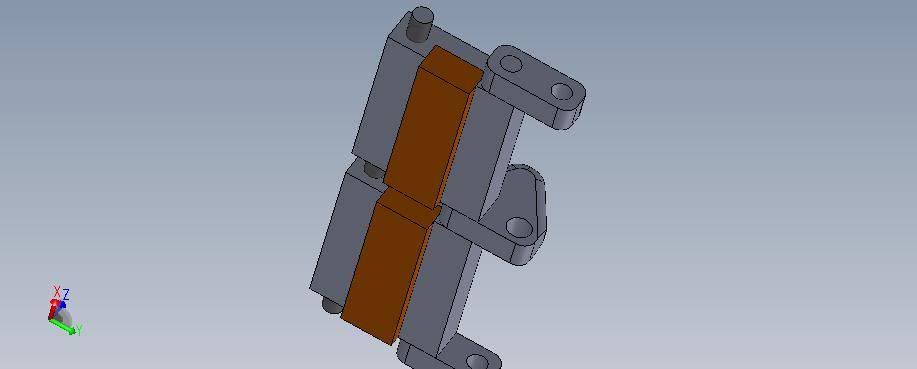

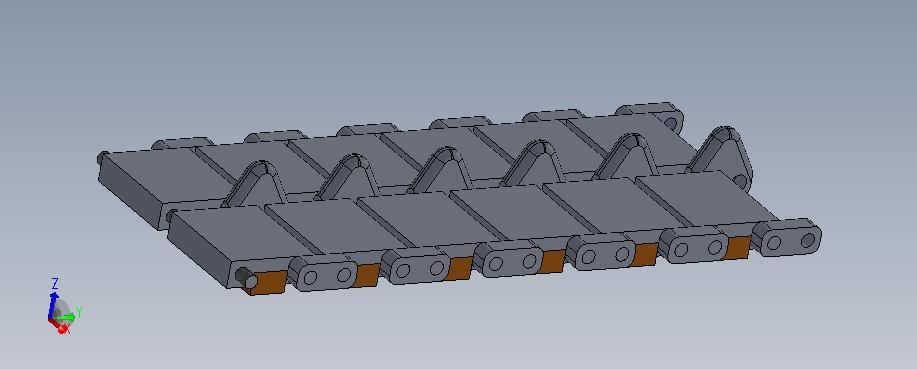

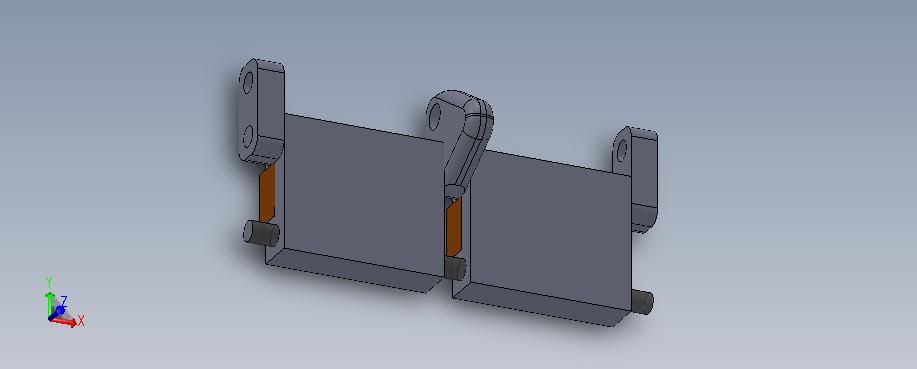

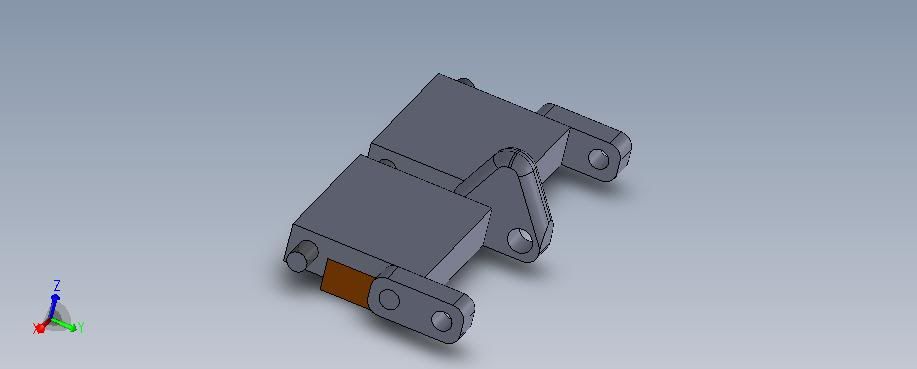

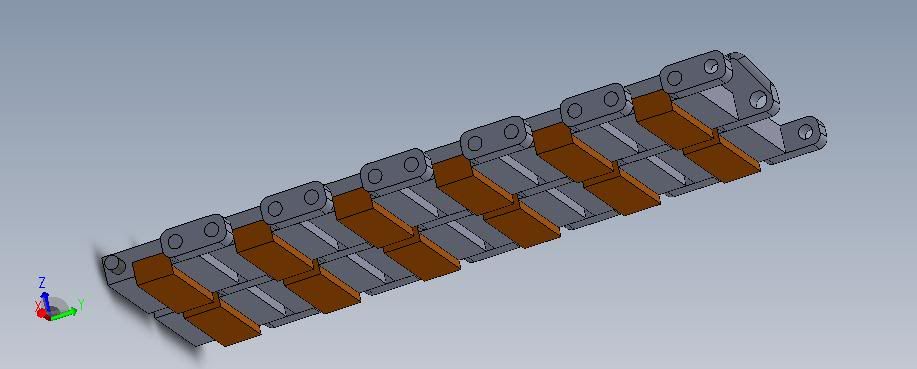

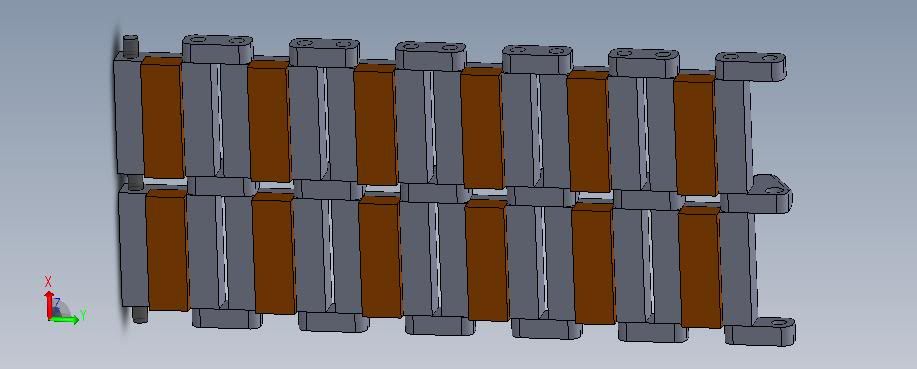

Here are my Solidworks track drawings. The pins are .1875 diameter stainless steel. The dark pads are rubber, glued into a 1/2 inch slot, cut into the aluminum track segment. The SS rods and the aluminum drive lugs will be pinned using SS roll pins (not shown). http://i192.photobucket.com/albums/z65/mm123521/Track_SubSection3.jpg http://i192.photobucket.com/albums/z65/mm123521/Track_SubSection2.jpg http://i192.photobucket.com/albums/z65/mm123521/Track_SubSection1.jpg http://i192.photobucket.com/albums/z65/mm123521/Track_Array4.jpg http://i192.photobucket.com/albums/z65/mm123521/Track_Array3.jpg http://i192.photobucket.com/albums/z65/mm123521/Track_Array2.jpg http://i192.photobucket.com/albums/z65/mm123521/Track_Array.jpg
[IMG]http://i192.photobucket.com/albums/z65/mm123521/Track_Array.jpg[/ IMG] Mark On Jun 9, 8:49 pm, Don Shankin <[email protected]> wrote: > I've modeled the tracks from the Abrams in solidworks, and I'm going to make > "real world" tracks as well, but I am trying to decide on whether I want to > use metal or wood (for the weight savings). I agree, metal tracks would be > cool as hell though -- You are currently subscribed to the "R/C Tank Combat" group. To post a message, send email to [email protected] To unsubscribe, send email to [email protected] Visit the group at http://groups.google.com/group/rctankcombat
