Hi all,

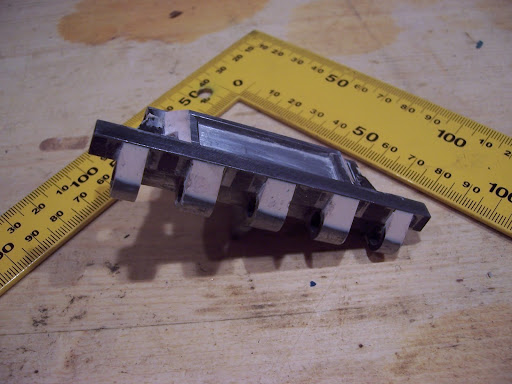

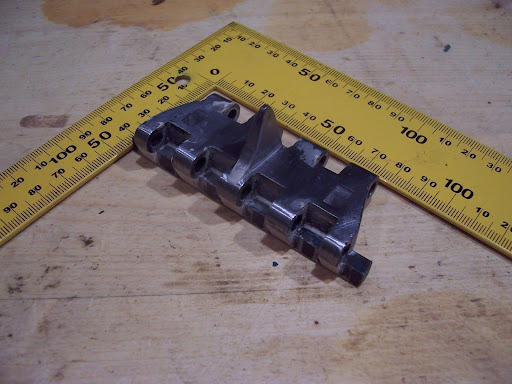

Just thought you might like a sneak peek at my master track segment, still needs a little more tidying up then into a mould box to let me cast 230 identical wax copies, to be sent to the foundry for investment casting. The light pink material is car body filler, a cheat to get some detail I couldn’t be bothered to do in steel! I’ve had to modify the design a bit, as a true 1/6 scale was a bit weak in places, but it still has the scale look. The rectangular pocket on the top is 4mm deep to house a 5mm rubber pad to be bonded in place. <https://lh4.googleusercontent.com/_dQhpiEl3x9k/TdGb7nbIj0I/AAAAAAAAABk/89m51RwWYoU/100_2922.JPG> <https://lh4.googleusercontent.com/_dQhpiEl3x9k/TdGaa57PHpI/AAAAAAAAABU/IOvQYTpgdB8/100_2921.JPG> <https://lh5.googleusercontent.com/_dQhpiEl3x9k/TdGai84scMI/AAAAAAAAABc/SXRJ1ObPUrU/100_2923.JPG> -- You are currently subscribed to the "R/C Tank Combat" group. To post a message, send email to [email protected] To unsubscribe, send email to [email protected] Visit the group at http://groups.google.com/group/rctankcombat
