Enable the MIPI-DSI panel and the USB gadget stack on the Pinephone Pro. Additionaly enable the buttons, DFU, mass storage and watchdog bits needed to drive it without a serial console. The volume keys depend on the separate "button: adc: implement get_code()" patch series. See:

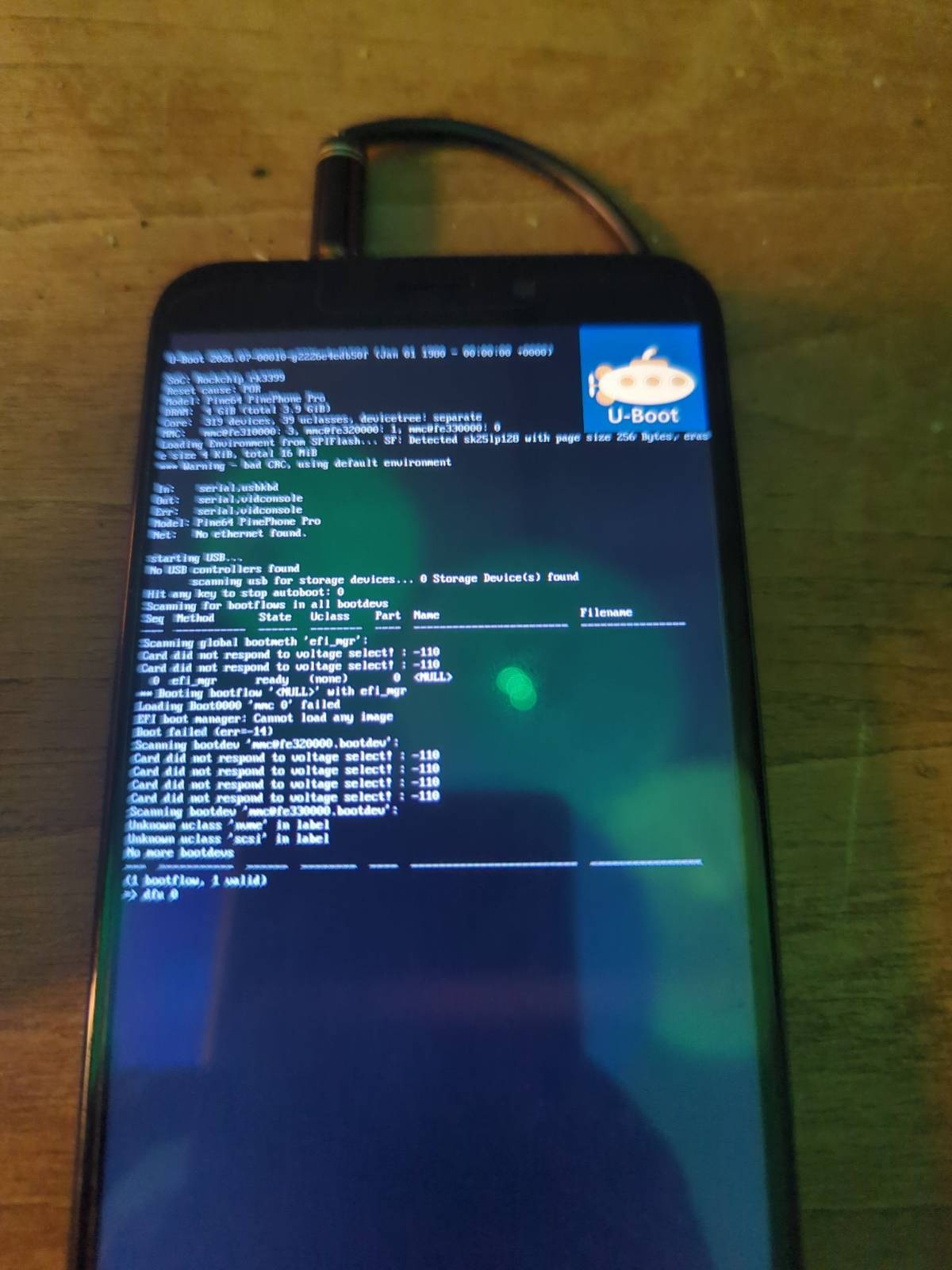

https://lore.kernel.org/all/[email protected]/T/#t The DSI/VOP display and the USB peripheral DTS are based on Ondrej Jirman's tree. Tested on a Pinephone Pro. See https://download.ixit.cz/ppro.jpeg For convenience the DFU targets the spinor so the initial sequence to flash the firmware needs to be done just once. ''' rkdeveloptool db rk3399_loader_spinor_v1.15.114.bin rkdeveloptool wl 0 u-boot-rockchip-spi.bin rkdeveloptool rd ''' Signed-off-by: Petr Hodina <[email protected]> --- Changes in v2: - Add USB peripheral mode - Add the DSI/VOP display stack - Split into clk, DSI core, lane rate, dphy, display adapter and DTS - Update defconfig patch - Define DFU spinor target - Link to v1: https://patch.msgid.link/20261010-b4-pinephone-pro-defconfig-v1-1-55487e8c2...@protonmail.com To: [email protected] Cc: Simon Glass <[email protected]> Cc: Philipp Tomsich <[email protected]> Cc: Kever Yang <[email protected]> Cc: Peter Robinson <[email protected]> Cc: Tom Rini <[email protected]> Cc: Ilias Apalodimas <[email protected]> Cc: Ondrej Jirman <[email protected]> Cc: Petr Hodina <[email protected]> Cc: Lukasz Majewski <[email protected]> Cc: Anatolij Gustschin <[email protected]> --- Ondrej Jirman (1): arm: dts: rk3399-pinephone-pro: Enable USB port (peripheral mode) Petr Hodina (8): clk: rockchip: rk3399: add the clocks the DSI and VOP paths need video: dw_mipi_dsi: sync LP command and clock lane handling with Linux video: rockchip: dw_mipi_dsi: account for burst mode in the lane rate video: rockchip: dw_mipi_dsi: tolerate -ENOENT for the optional dphy video: rockchip: dw_mipi_dsi: add a UCLASS_DISPLAY adapter for rk_vop arm: dts: rk3399-pinephone-pro-u-boot: drop VOP clock assignments configs: pinephone-pro-rk3399: Update defconfig configs: pinephone-pro-rk3399: add a DFU alt setting for the SPI NOR arch/arm/dts/rk3399-pinephone-pro-u-boot.dtsi | 33 +++++++++ configs/pinephone-pro-rk3399_defconfig | 17 ++++- drivers/clk/rockchip/clk_rk3399.c | 21 ++++++ drivers/video/dw_mipi_dsi.c | 33 ++++++--- drivers/video/rockchip/dw_mipi_dsi_rockchip.c | 96 ++++++++++++++++++++++----- include/configs/pinephone-pro-rk3399.h | 3 +- 6 files changed, 176 insertions(+), 27 deletions(-) --- base-commit: ece349ade2973e220f524ce59e59711cc919263f change-id: 20261010-b4-pinephone-pro-defconfig-f83a60a75767 Best regards, -- Petr Hodina <[email protected]>
