YuuichiNakamura commented on a change in pull request #1377:
URL: https://github.com/apache/incubator-nuttx/pull/1377#discussion_r498625054
##########
File path: include/nuttx/sched.h
##########
@@ -748,6 +748,10 @@ struct tcb_s
#if CONFIG_TASK_NAME_SIZE > 0
char name[CONFIG_TASK_NAME_SIZE + 1]; /* Task name (with NUL terminator)
*/
#endif
+
+#ifdef CONFIG_SCHED_INSTRUMENTATION_SYSCALL
+ int syscall_nest; /* Syscall nest level */
Review comment:
@xiaoxiang781216

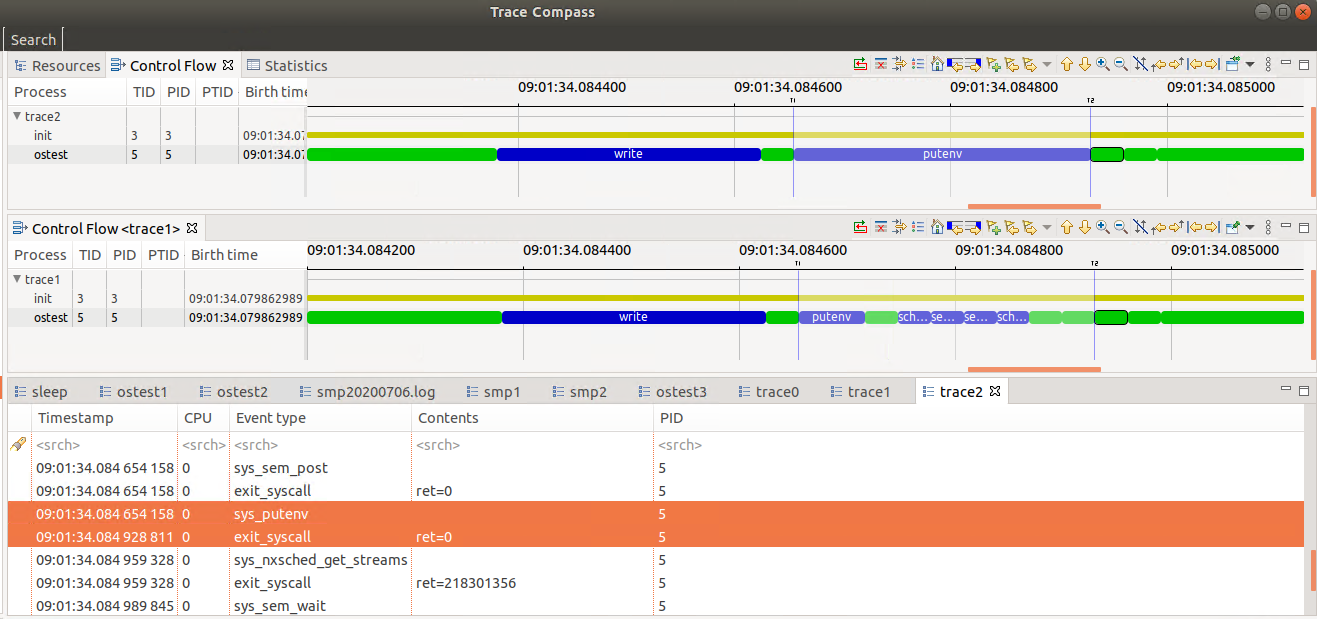

This is a screenshot of tracecompass to compare the case of removing the
nested syscall (upper) and not removing (lower).
The real execution time of putenv() is upper one, but when the nested
syscall is not removed, tracecompass misjudges the end of syscall and displays
incorrect syscall execution period.
However, I understand your thought that it's very useful to trace the nested
syscall.
So I have changed my mind and will propose the alternative idea for it:
- sched_note.c records the syscall notes as it is.
- The app code which translates the note record into ftrace text format
counts the nesting level of syscall and removes the nested syscalls for
correctly tracecompass display.
Because the note data would be available by not only tracecompass but
another tools, it would be better to remove the special treatment for
tracecompass from kernel code.
How about this idea?
----------------------------------------------------------------
