endimonan opened a new pull request, #44790: URL: https://github.com/apache/superset/pull/44790

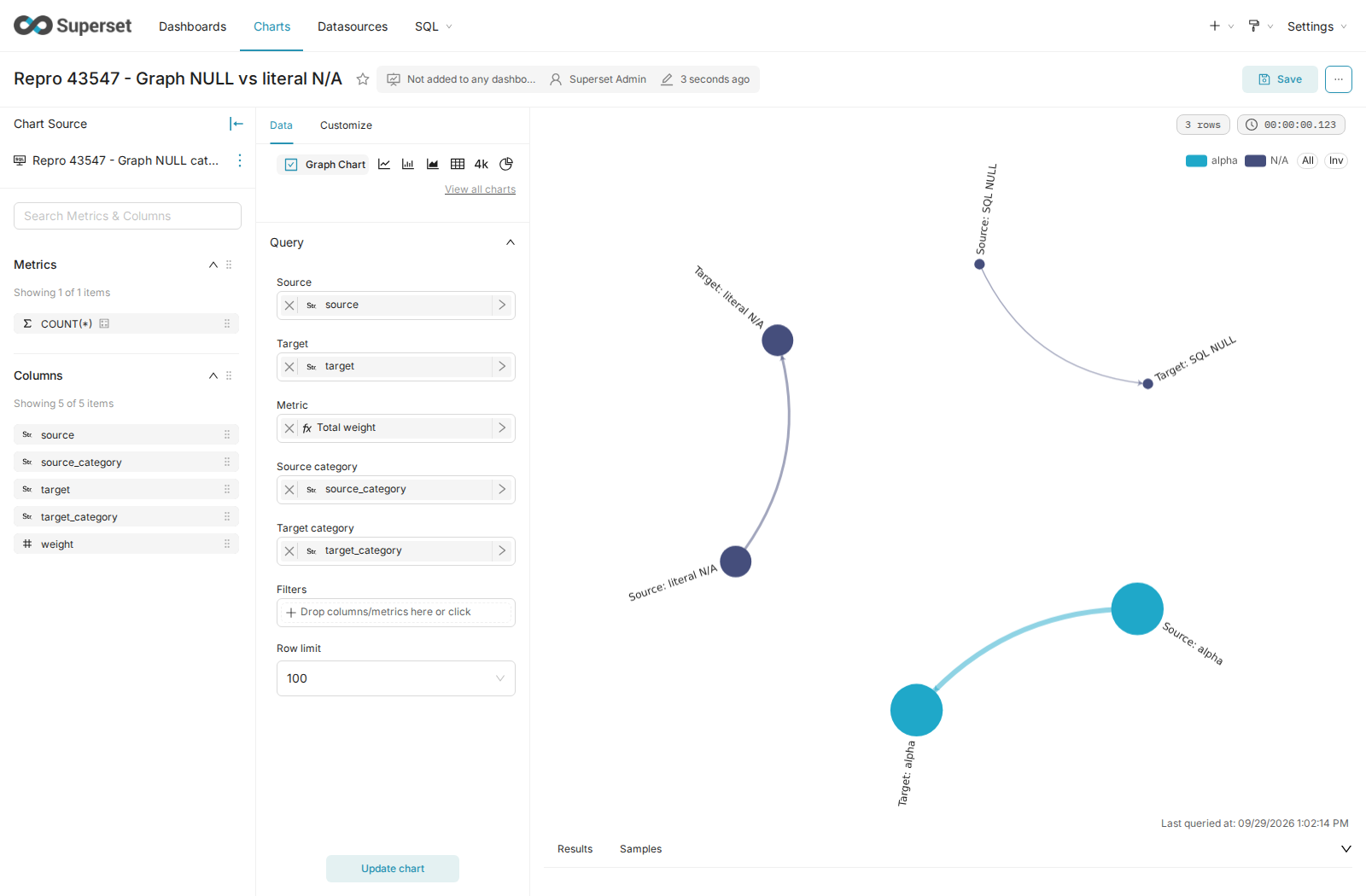

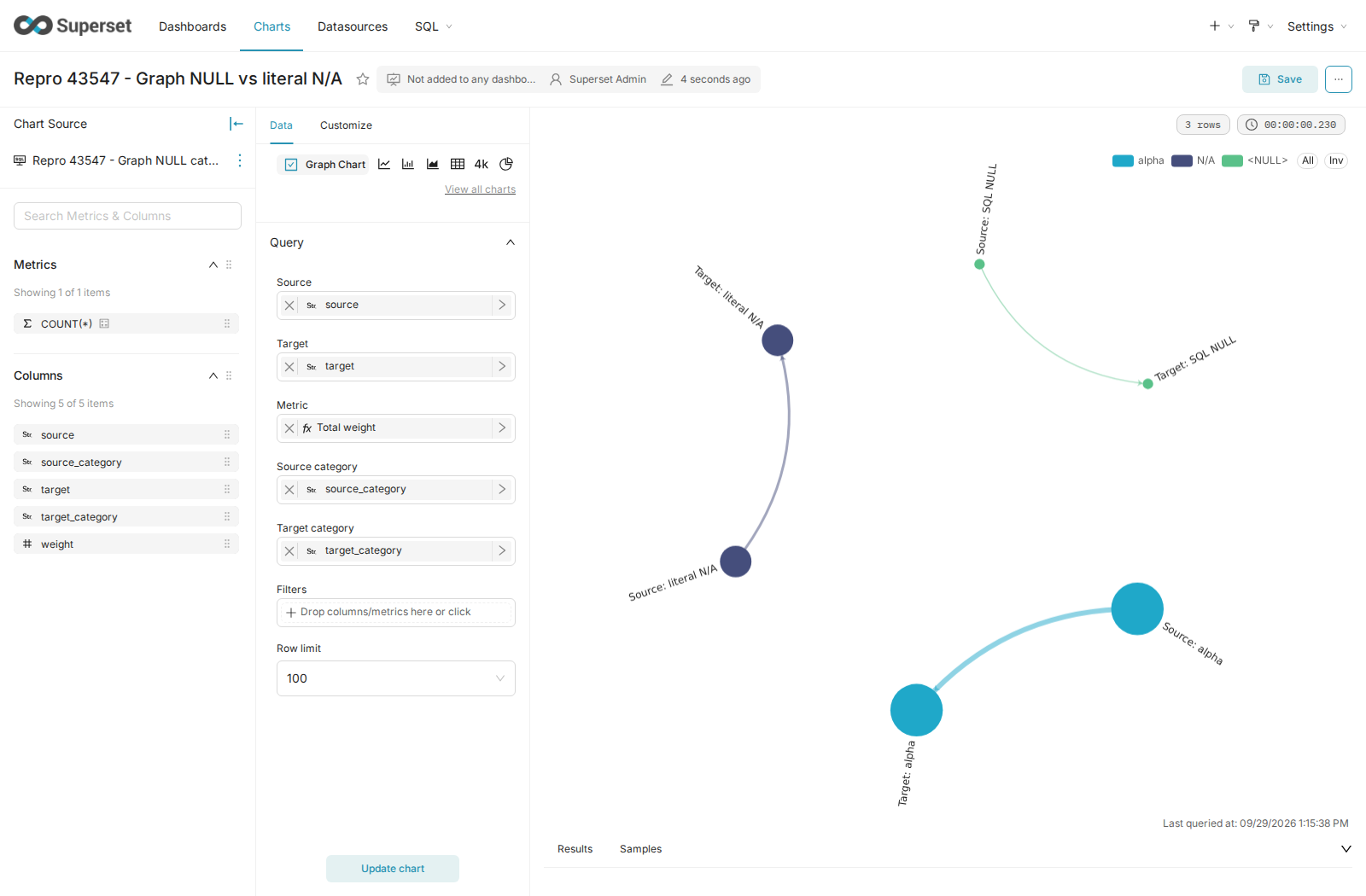

### SUMMARY Graph charts label null source and target categories as `N/A`, merging them with a literal `N/A` category in the legend and color assignment. Use the existing `NULL_STRING` constant so null categories appear as `<NULL>` and remain separate from literal `N/A` values. Related to #43547. This addresses the Graph category-label case; the issue also covers other plugins. ### BEFORE/AFTER SCREENSHOTS OR ANIMATED GIF Same saved chart, synthetic dataset, circular layout, and viewport in both captures. **Before:** SQL NULL and literal N/A nodes share one category and color.  **After:** SQL NULL nodes have a separate `<NULL>` legend entry and color.  ### TESTING INSTRUCTIONS Create a virtual dataset from this query (tested with PostgreSQL): ```sql SELECT 'Source: SQL NULL' AS source, 'Target: SQL NULL' AS target, CAST(NULL AS VARCHAR) AS source_category, CAST(NULL AS VARCHAR) AS target_category, 10 AS weight UNION ALL SELECT 'Source: literal N/A', 'Target: literal N/A', 'N/A', 'N/A', 20 UNION ALL SELECT 'Source: alpha', 'Target: alpha', 'alpha', 'alpha', 30 ``` 1. Create a Graph chart with `source` and `target` as its node columns, `SUM(weight)` as its metric, and the corresponding source/target category columns. 2. Enable the legend and use the circular layout. 3. Verify three legend entries: `<NULL>`, `N/A`, and `alpha`. Both SQL NULL nodes should have the `<NULL>` category and a different color from the literal N/A nodes. Validation: - The null and undefined regression cases fail before the fix because the legend contains only `N/A`. - Both Graph Jest suites pass: 14 tests, including boolean/numeric labels and charts without categories. - `pre-commit run` passes on all three changed files, including targeted TypeScript checking. - Browser verification confirms identical query rows before/after, separate categories/colors, and no page errors. ```sh cd superset-frontend npx jest plugins/plugin-chart-echarts/test/Graph/transformProps.test.ts plugins/plugin-chart-echarts/test/Graph/buildQuery.test.ts --runInBand ``` Local browser validation used a Docker backend and Windows development build. A local-only Webpack override disabled `fullySpecified` for the installed geostyler dependencies to resolve an existing build error; it is not part of this change. The full test suites were not run. ### ADDITIONAL INFORMATION - [x] Has associated issue: #43547 (Graph category-label portion) - [ ] Required feature flags: - [x] Changes UI - [ ] Includes DB Migration (follow approval process in [SIP-59](https://github.com/apache/superset/issues/13351)) - [ ] Migration is atomic, supports rollback & is backwards-compatible - [ ] Confirm DB migration upgrade and downgrade tested - [ ] Runtime estimates and downtime expectations provided - [ ] Introduces new feature or API - [ ] Removes existing feature or API -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected] --------------------------------------------------------------------- To unsubscribe, e-mail: [email protected] For additional commands, e-mail: [email protected]
