cheers folks its now sorted

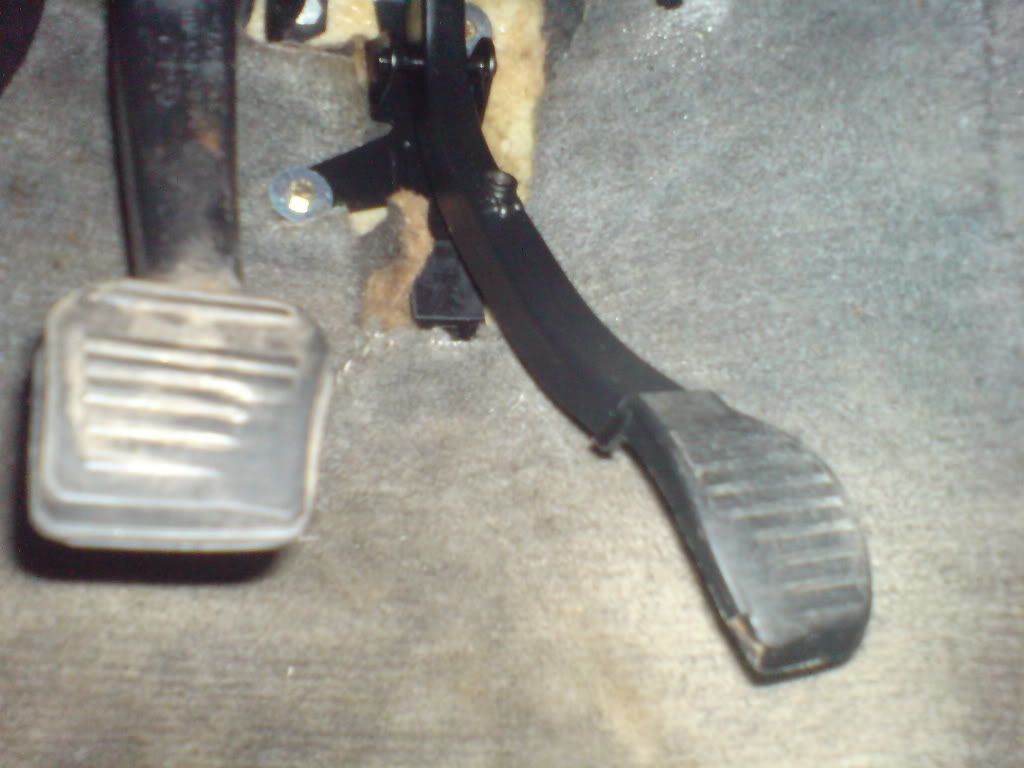

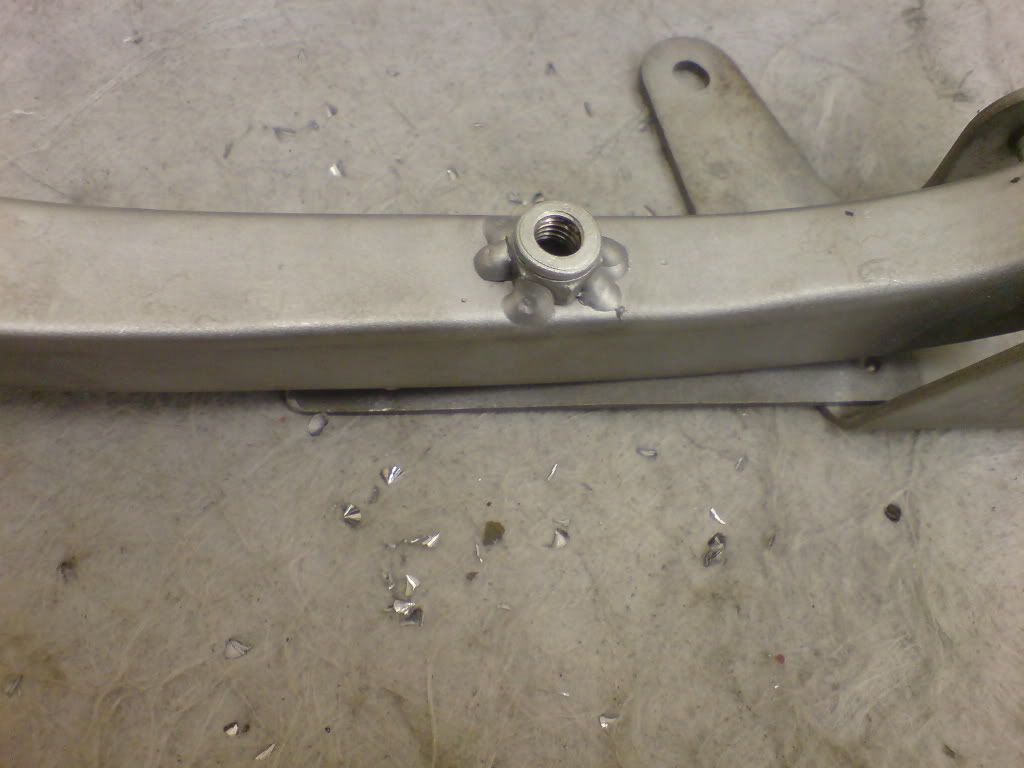

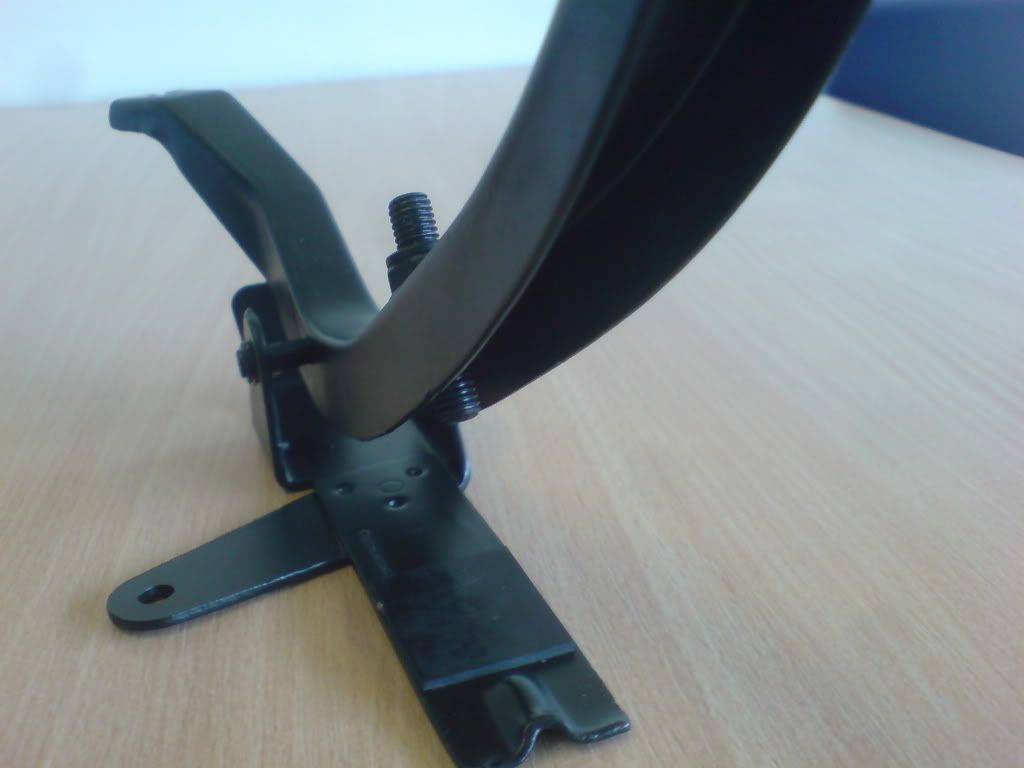

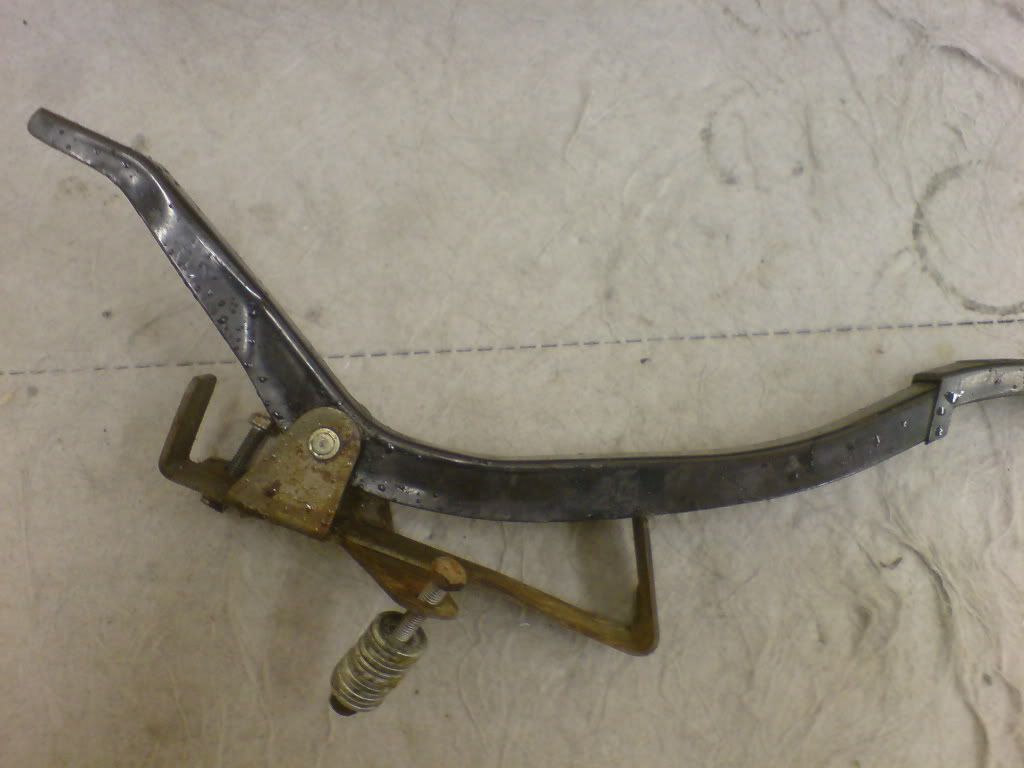

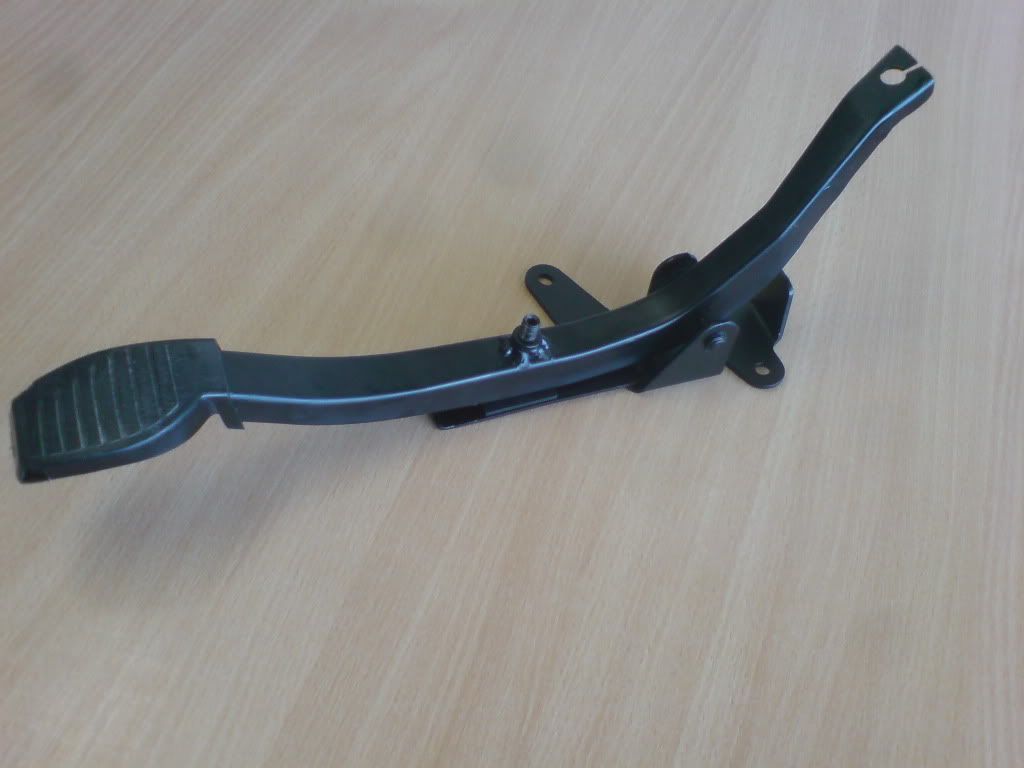

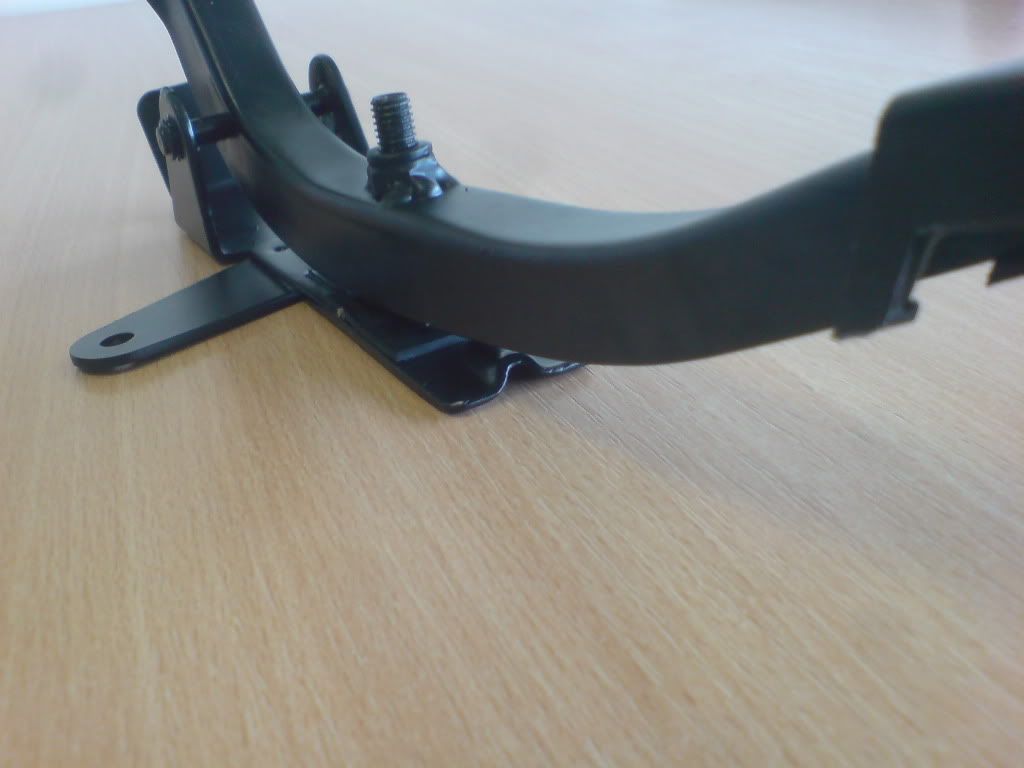

old pedal off the car (with nice bunch of washers that have now been replaced for turned alloy bar) http://i120.photobucket.com/albums/o192/jindal/DSC01131-1.jpg lower lip cut off and new stop made in the form of a welded clinch nut to the pedal arm and a long grub screw fitted through to be an adjustable stop http://i120.photobucket.com/albums/o192/jindal/DSC01132-1.jpg painted up like a new un http://i120.photobucket.com/albums/o192/jindal/DSC01137.jpg http://i120.photobucket.com/albums/o192/jindal/DSC01139.jpg http://i120.photobucket.com/albums/o192/jindal/DSC01140.jpg i also too the opportunity to replace the badly fitting fiesta plastic bulkhead grommet with a nice snug fitting and watertight rubber one http://i120.photobucket.com/albums/o192/jindal/DSC01141.jpg job done http://i120.photobucket.com/albums/o192/jindal/DSC01143.jpg tidy job and i can now get full throttle ;D On Mar 30, 8:24 pm, Ian Harrison <[email protected]> wrote: > Maybe the throttle stop was in the right place for the 1.1 carb and the twin > choke has a different limit. > > Ian > > Sent from my iPad > > On 29 Mar 2011, at 18:51, jin <[email protected]> wrote: > > > > > Cheers Jim, the cable is adjusted properly as you say; any more > > tension on the cable would pull the linkage off the carb stop > > But with the pedal to the metal it only opens up the primary choke. > > > The carb is an upgrade for the xr3 / xr2 in the shape of a 34 DMTR, I > > had thought it may be because my car was originally based upon the > > base spec fiesta (1.1ohv) so that may influence things, > > > Ill pull it off tomorrow and see about modifying the stop > > > Thanks very much for the advice > > > On Mar 29, 8:25 am, "Jim Hearne" <[email protected]> wrote: > >> No, that is the standard MK2 Fiesta accelerator bracket and throttle stop. > >> If it's a standard Mk2 Fiesta carb then it shouldn't need adjusting much. > >> Is the cable outer correctly adjusted at the carb end ?, it should be set > >> so > >> that there is no slack in the cable but not so much that it pulls the carb > >> off it's idle stop. > > >> If need be you can cut the lug down a bit but the throttle should always be > >> stopped on the pedal and not by the carb hitting it's stop, that puts a lot > >> of strain on the cable. > >> On mine i cut it down and welded a nut to the remains, then a long bolt > >> screws into it with a lock nut. > >> This lets you adjust the stop easily. > >> My 2+2 has adjustable stops on both open and closed so i could get the > >> pedal > >> height exactly how i wanted it. > > >> Jim > > >> -------------------------------------------------- > >> From: <[email protected]> > >> Sent: Tuesday, March 29, 2011 7:47 AM > >> To: <[email protected]> > >> Subject: Re: [Quantum Owners] Thriottle stop > > >>> Looks like a previous owner has fitted a primitive throttle limiter, > >>> maybe for fuel saving or perhaps to stop a young driver from giving it > >>> some wellie. > > >>> Bob Craig > > >>>> ----Original Message---- > > >>>> From: [email protected] > > >>>> Date: 29/03/2011 7:21 > > >>>> To: "Quantum Owners Group"<[email protected]> > > >>>> Subj: [Quantum Owners] Thriottle stop > > >>>> ok, so when i was driving the 2+2 to the MOT i did notice that both > > >>>> chokes didn't seem to be opening on the carb, thinking it was the > > >>>> cable that was at fault (it was very ropey) i bought a new one but > > >>>> once again the fault persists, on closer inspection the throttle > >>> pedal > > >>>> is meeting an abrupt stop (prematurely in my opinion) against a metal > > >>>> lip sticking out on the accelerator bracket > > >>>>http://i120.photobucket.com/albums/o192/jindal/DSC01126-1.jpg > >>>>http://i120.photobucket.com/albums/o192/jindal/DSC01127-1.jpg > > >>>> without that lip I'm sure i would get full throttle and full travel > >>>> (pedal only moves half way with this). > > >>>> has anyone had the same problem ? will chopping it off cause any > >>>> issues? > > >>>> thank you in advance ;) > > >>>> -- > >>>> You received this message because you are subscribed to the Google > >>> Groups "Quantum Owners Group" group. > > >>>> To post to this group, send email to [email protected] > > >>>> To unsubscribe from this group, send email to quantumowners- > >>> [email protected] > > >>>> For more options, visit this group at > >>>>http://groups.google.com/group/quantumowners?hl=en > > >>>> IMPORTANT NOTE: All information presented herewith is provided on an > >>> "As Is" basis, without warranty or the implication thereof. Neither the > >>> Quantum Owners Club nor the individuals associated with the Quantum > >>> Owners Club or in the preparation of the above information shall have > >>> any liability to any person or entity with respect to liability, loss, > >>> or damage caused or alleged to be caused directly or indirectly by the > >>> instructions contained within this or related message(s). > > >>> -- > >>> You received this message because you are subscribed to the Google Groups > >>> "Quantum Owners Group" group. > >>> To post to this group, send email to [email protected] > >>> To unsubscribe from this group, send email to > >>> [email protected] > >>> For more options, visit this group at > >>>http://groups.google.com/group/quantumowners?hl=en > > >>> IMPORTANT NOTE: All information presented herewith is provided on an "As > >>> Is" basis, without warranty or the implication thereof. Neither the > >>> Quantum Owners Club nor the individuals associated with the Quantum Owners > >>> Club or in the preparation of the above information shall have any > >>> liability to any person or entity with respect to liability, loss, or > >>> damage caused or alleged to be caused directly or indirectly by the > >>> instructions contained within this or related message(s).- Hide quoted > >>> text - > > >> - Show quoted text - > > > -- > > You received this message because you are subscribed to the Google Groups > > "Quantum Owners Group" group. > > To post to this group, send email to [email protected] > > To unsubscribe from this group, send email to > > [email protected] > > For more options, visit this group > > athttp://groups.google.com/group/quantumowners?hl=en > > > IMPORTANT NOTE: All information presented herewith is provided on an "As > > Is" basis, without warranty or the implication thereof. Neither the Quantum > > Owners Club nor the individuals associated with the Quantum Owners Club or > > in the preparation of the above information shall have any liability to any > > person or entity with respect to liability, loss, or damage caused or > > alleged to be caused directly or indirectly by the instructions contained > > within this or related message(s).- Hide quoted text - > > - Show quoted text - -- You received this message because you are subscribed to the Google Groups "Quantum Owners Group" group. To post to this group, send email to [email protected] To unsubscribe from this group, send email to [email protected] For more options, visit this group at http://groups.google.com/group/quantumowners?hl=en IMPORTANT NOTE: All information presented herewith is provided on an "As Is" basis, without warranty or the implication thereof. Neither the Quantum Owners Club nor the individuals associated with the Quantum Owners Club or in the preparation of the above information shall have any liability to any person or entity with respect to liability, loss, or damage caused or alleged to be caused directly or indirectly by the instructions contained within this or related message(s).
