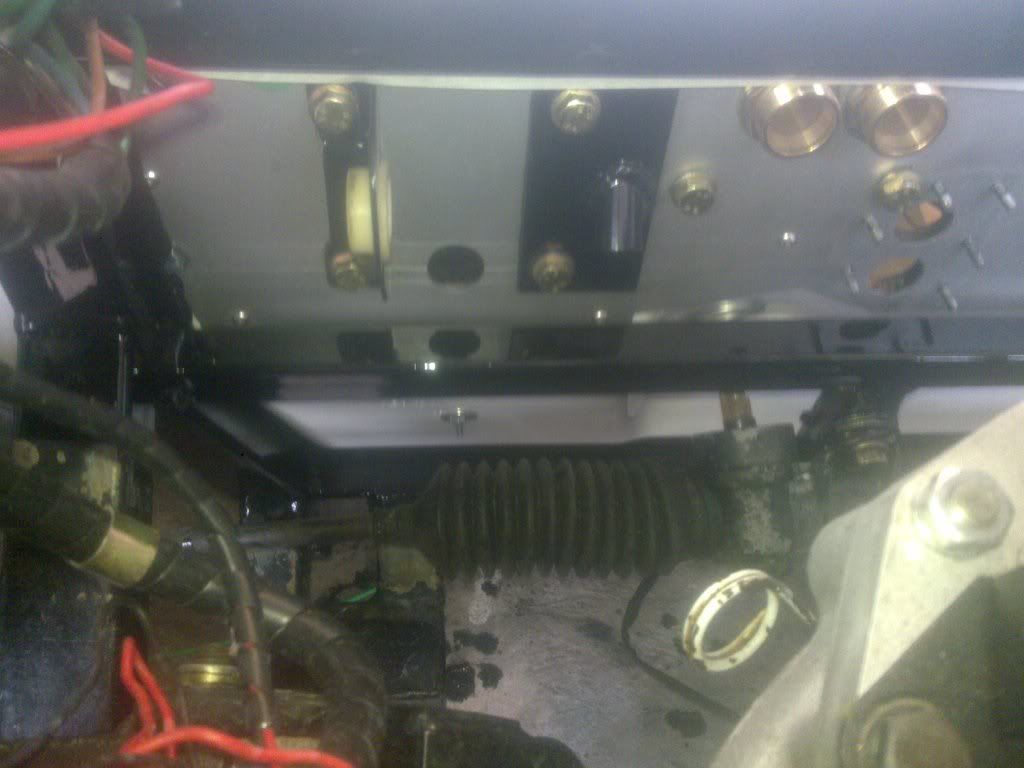

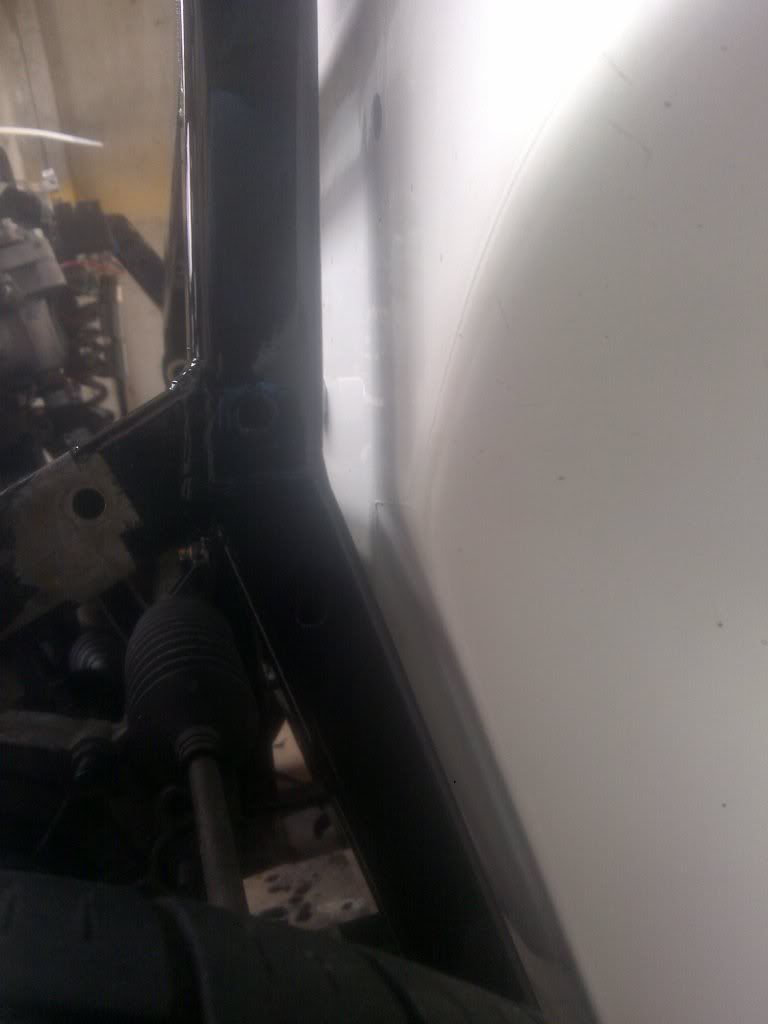

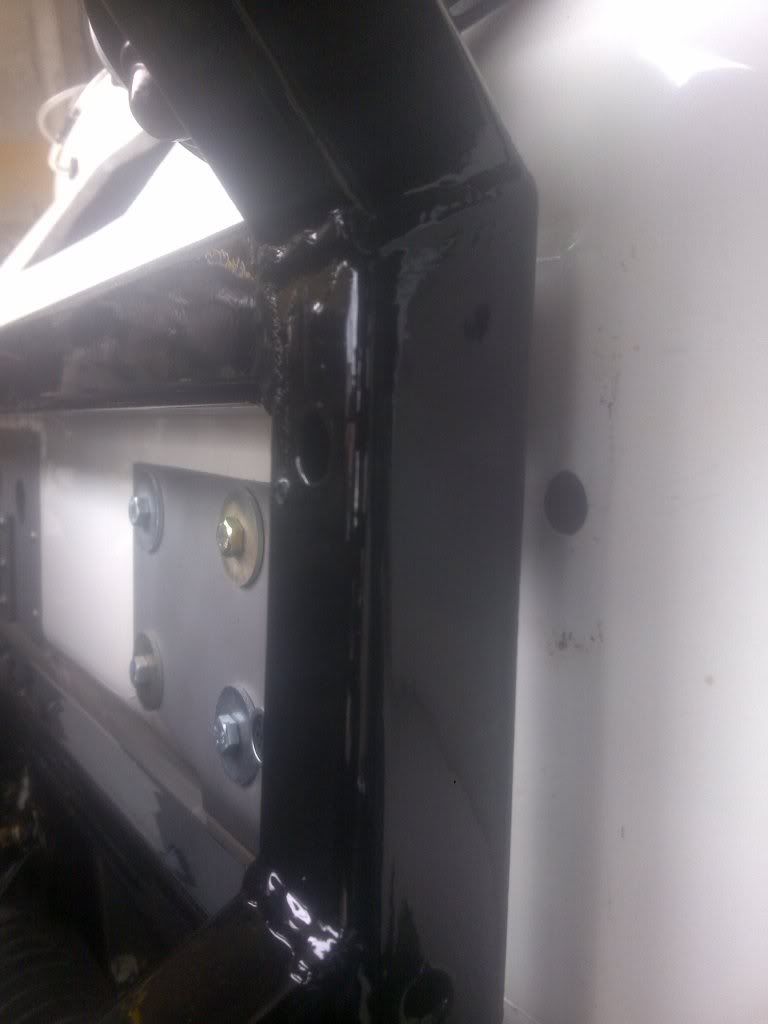

Im feeling rather pleased with myself today since after 2 hard days graft ive finally got both halves of my car back as one, the POR15 has done a great job setting to a rock hard finish, I refitted the steering rack using some special flange headed bolts and nuts to hopefully eliminate the issue I found before with the holes leaking in water, now they are sealed with underseal and a wide head either end so I hope this issue will now be a thing of the past, Onto the car itself, I realised some time ago that the sub frame assembly was sat higher than the body shell

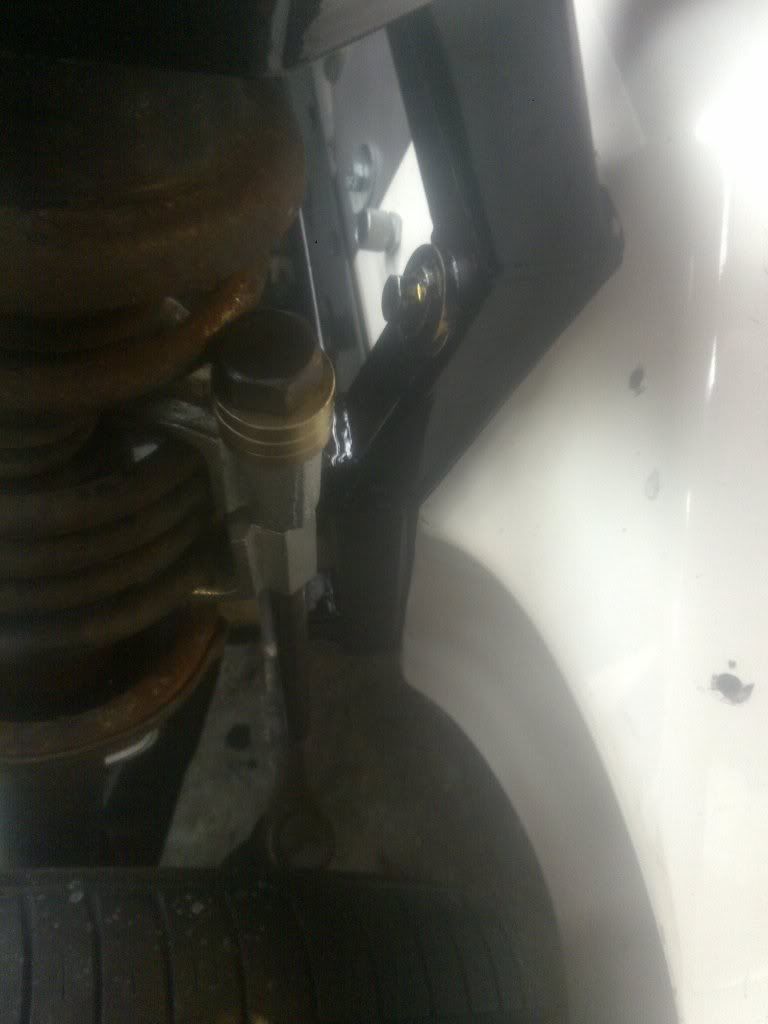

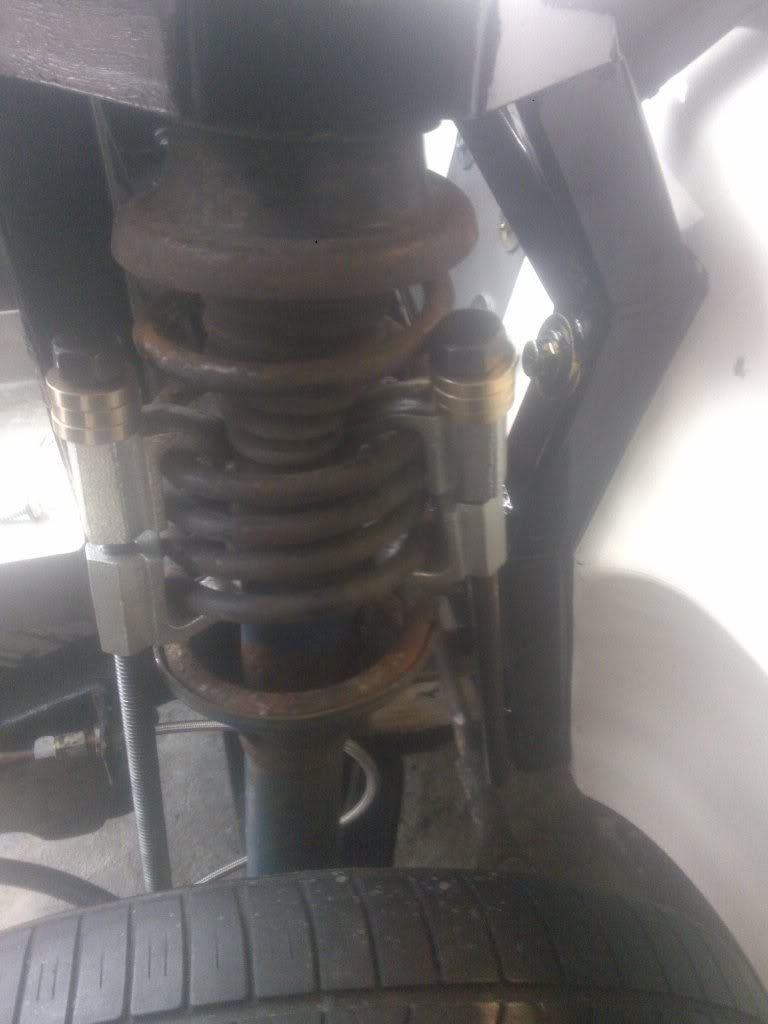

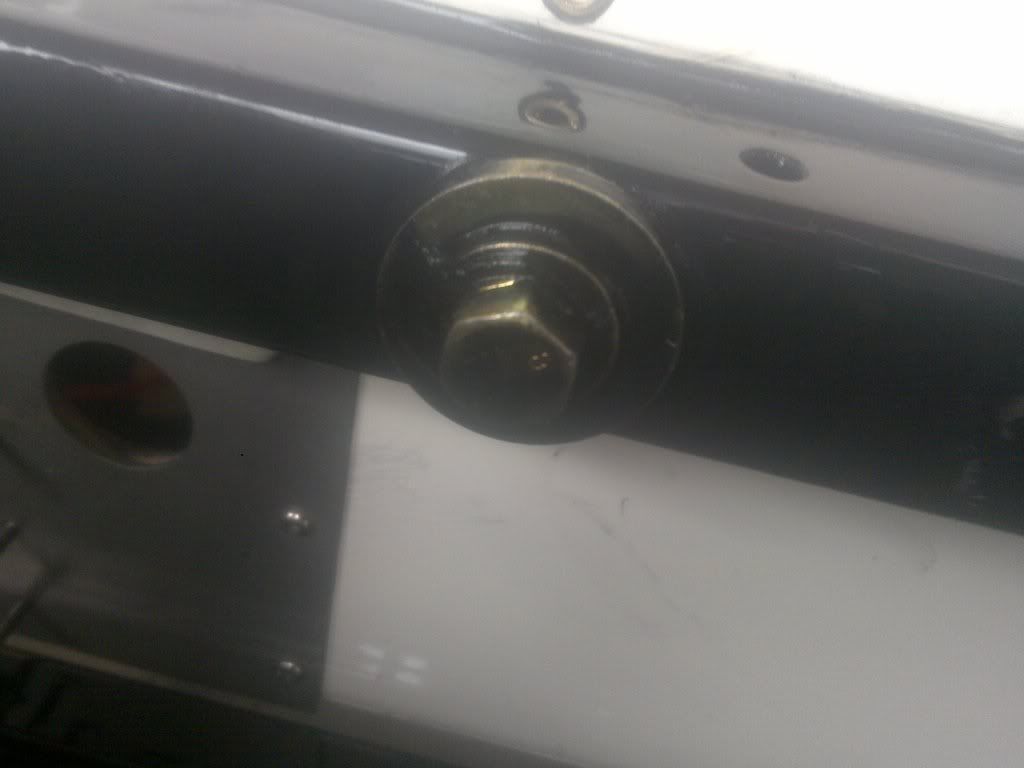

http://i120.photobucket.com/albums/o192/jindal/17032012097.jpg http://i120.photobucket.com/albums/o192/jindal/17032012098.jpg so some adjustment would be required to bring them to the same height, I did think about chocking the body but thought better of it, so I bought 2 pairs of spring clamps and compressed the springs enough to bring the sub frame and shell to the exact height, http://i120.photobucket.com/albums/o192/jindal/17032012102.jpg http://i120.photobucket.com/albums/o192/jindal/17032012103.jpg it took a fair bit of arsing about since a couple of turns on the spring compressors meant a tweak on the jack which in turn meant a couple more turns on the spring compressors and so on but in the end (and much to my amazement) I had it located so all 6 bolts just slid through the holes with no resistance at all, not bad since they are 12mm bolts through 12.5mm holes then it was just a task of checking I had enough sikaflex (2 tubes) and going for it, what followed was about half an hour of up down left right inside outside and back again while I fitted all the bolts and got plastered in sikaflex, and bearing in mind I was working alone trying to torque the bolts was a bit of a mare involving some abuse of spanners, there were a few casualties, once the dust had settled, namely my arms were now black (despite wearing overalls and gloves??) and my head also, I also nearly knocked myself out on the front tie rod and got sikaflex on the passenger seat, but it was all worth it http://i120.photobucket.com/albums/o192/jindal/17032012099.jpg http://i120.photobucket.com/albums/o192/jindal/17032012101.jpg I used special flange headed nuts and bolts again to spread the load better and prevent the washer dishing in, http://i120.photobucket.com/albums/o192/jindal/17032012096.jpg I think the stainless 10mm thick ones should be ok but still they got the flange nuts http://i120.photobucket.com/albums/o192/jindal/17032012105.jpg http://i120.photobucket.com/albums/o192/jindal/17032012104.jpg And the new 6mm thick 12mm steel washer look more convincing now too on the engine side http://i120.photobucket.com/albums/o192/jindal/17032012107.jpg http://i120.photobucket.com/albums/o192/jindal/17032012108.jpg To round things off I even fitted the steering column and my home made seal http://i120.photobucket.com/albums/o192/jindal/17032012109.jpg And modified the pedal box as per the most recent build manual to have the support bolt up to the scuttle http://i120.photobucket.com/albums/o192/jindal/15032012094.jpg Overall id say its been a good weekend http://i120.photobucket.com/albums/o192/jindal/17032012110.jpg http://i120.photobucket.com/albums/o192/jindal/17032012111.jpg -- You received this message because you are subscribed to the Google Groups "Quantum Owners Group" group. To post to this group, send email to [email protected] To unsubscribe from this group, send email to [email protected] For more options, visit this group at http://groups.google.com/group/quantumowners?hl=en IMPORTANT NOTE: All information presented herewith is provided on an "As Is" basis, without warranty or the implication thereof. Neither the Quantum Owners Club nor the individuals associated with the Quantum Owners Club or in the preparation of the above information shall have any liability to any person or entity with respect to liability, loss, or damage caused or alleged to be caused directly or indirectly by the instructions contained within this or related message(s).
