You need in the display section of the INI file GEOMETRY = AXYZ

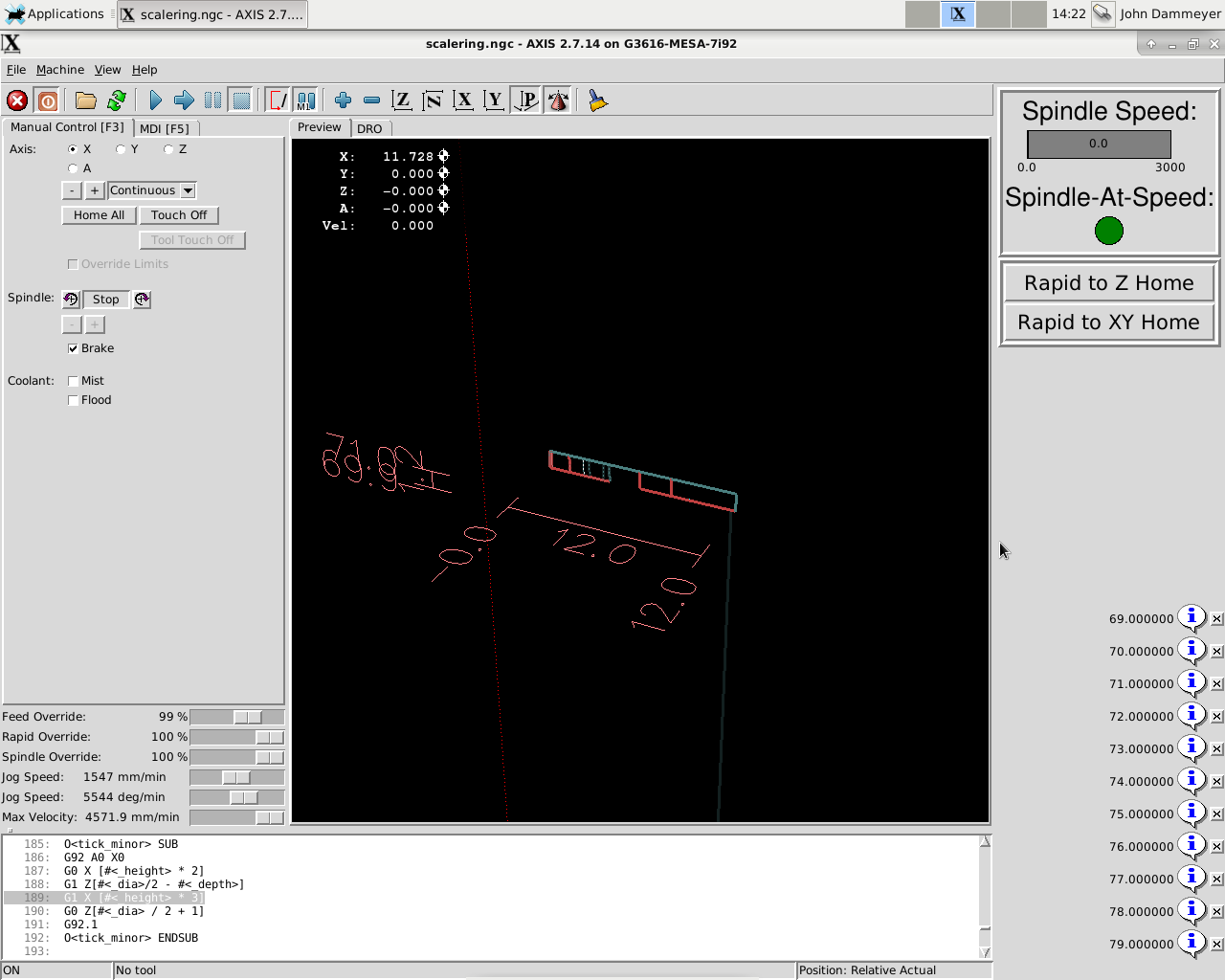

On Wed, Mar 31, 2021, 5:00 PM John Dammeyer <jo...@autoartisans.com> wrote: > > > From: Sam Sokolik [mailto:samco...@gmail.com] > > > http://electronicsam.com/images/greenmachine/Screenshot_2021-03-30_18-00-14.png > > > Alright, I'm confused. > I've got the G-Code turning the 4th axis A. The X moves back and forth > for carving the lines as does A when letters are carved. At 90 degrees the > conical tool image on the AXIS screen has rotated 90 degrees but the > location of A is still zero on the screen as well as I don't get that > circular image that Sam has. > http://www.autoartisans.com/mill/Screenshot_2021-03-31_14-22-48.png > > So physically the Axis is turning. But it doesn't seem to be represented > on the screen. What could be missing? Something in the HAL or INI file? > > Thanks > John > > > > _______________________________________________ > Emc-users mailing list > Emc-users@lists.sourceforge.net > https://lists.sourceforge.net/lists/listinfo/emc-users > _______________________________________________ Emc-users mailing list Emc-users@lists.sourceforge.net https://lists.sourceforge.net/lists/listinfo/emc-users
