I am having problems getting a replacement CV from my supplier - its
on Back order.
But have been offerred a different CV Joint claimed to fit the XR2

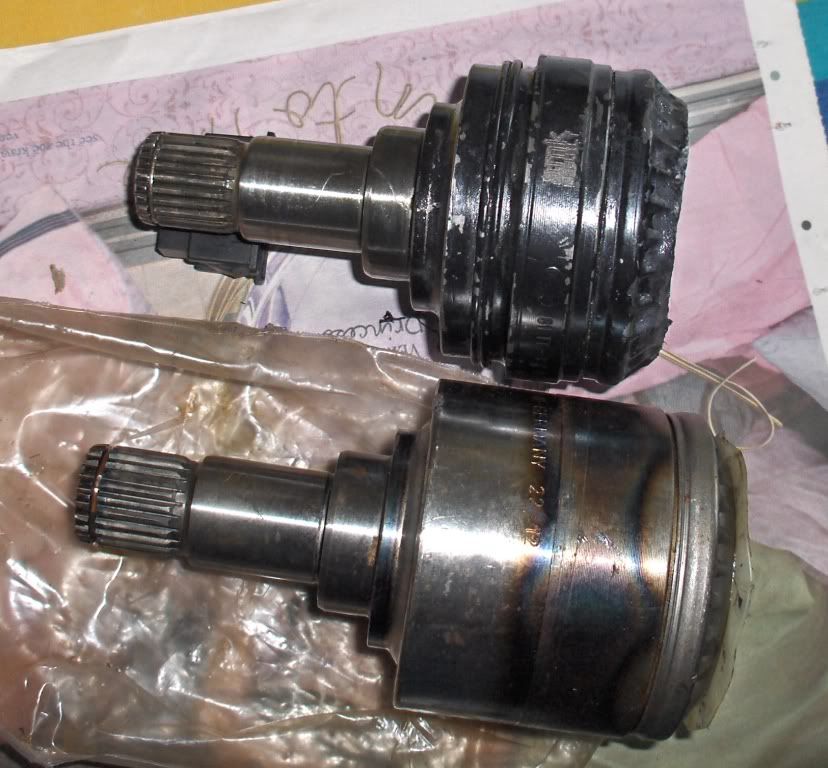

See picture
http://i1083.photobucket.com/albums/j389/AJHPOTOBUCKET/HPIM4238.jpg
which shows the old CV joint and the alternative.
The alternative has a longer Body which gives a greater degree of
travel extension for the driveshaft within the housing
It is also heavier...
Has anyone encountered / used this type before?
AJ
On Jan 9, 10:38 am, AJ <[email protected]> wrote:
> The round cage is intact - unbroken and in looks in very good good
> condition
>
> AJ
>
> On Jan 9, 9:10 am, "Jim Hearne" <[email protected]> wrote:
>
>
>
> > Is the round cage that's still in the joint with the balls broken ?
>
> > Jim
>
> > --------------------------------------------------
> > From: "AJ" <[email protected]>
> > Sent: Saturday, January 07, 2012 3:49 PM
> > To: "Quantum Owners Group" <[email protected]>
> > Subject: [Quantum Owners] Re: Quantum Coupe - CV Joint Problem
>
> > > Jim
>
> > > Its the inner (gearbox) CV Joint.
>
> > > The following pic is of the CV Joint with the splined inner clearly
> > > seperate - it was on the end of the Driveshaft when the Gaiter was
> > > removed.
>
> > >http://i1083.photobucket.com/albums/j389/AJHPOTOBUCKET/BrokenCVJoint.jpg
>
> > > This pic shows the inside of the CV Joint with Ball Bearings stuck in
> > > the grease.
>
> > >http://i1083.photobucket.com/albums/j389/AJHPOTOBUCKET/CVJointBallBea...
>
> > > This pic shows the Driveshaft with the outer CV Joint still attached.
>
> > >http://i1083.photobucket.com/albums/j389/AJHPOTOBUCKET/Driveshaft.jpg
>
> > > Regards
> > > AJ
>
> > > On Jan 6, 8:14 pm, Jim Hearne <[email protected]> wrote:
> > >> Was this the inner or outer end ?
> > >> Can you take a picture, i'm not sure how the balls could escape from the
> > >> joint. unless i'm thinking of a different type.
>
> > >> Jim
>
> > >> On 06/01/2012 14:29, AJ wrote:
>
> > >> > Finally got around to removing the driveshaft andCV joints
>
> > >> > As suspected, the centre was still attached to the Driveshaft and the
> > >> > ball-bearings
> > >> > were left behind in CV casing amongst the grease.
>
> > >> > Before disassembling, we checked for excessive movement on the
> > >> > suspension, ie. front / rear and side to side.
> > >> > No problem found.
>
> > >> > Does anyone have a "old" XR2 driveshaft that they could provide
> > >> > mesurements from for comparison with mine?
>
> > >> > I have a replacement CV Joint on order - should get it next week.
>
> > >> > Regards
> > >> > AJ
>
> > >> > On Dec 23 2011, 1:52 pm, Steve Brabazon<[email protected]>
> > >> > wrote:
> > >> >> Hi,
>
> > >> >> The saloon has a slightly wider track than the Fiesta Mk2 and it could
> > >> >> be that some makes of CV joints are able to tolerate this better than
> > >> >> others. I have standard XR2 shafts on my car.
>
> > >> >> An old build manual does mention Mk1 Fiesta drive shaft/shafts, as
> > >> >> being too short.
>
> > >> >> Stevehttp://brabazon.org/Quantum.aspx-Hidequoted text -
>
