Prototyped a suspension system today. It has a 1 inch thick aluminum bar that all boggies will be built on. The drive sprocket, rear sprocket, and track tensioning system will also mount on this bar. It will be a complete track system that will bolt to the outside of the hull.

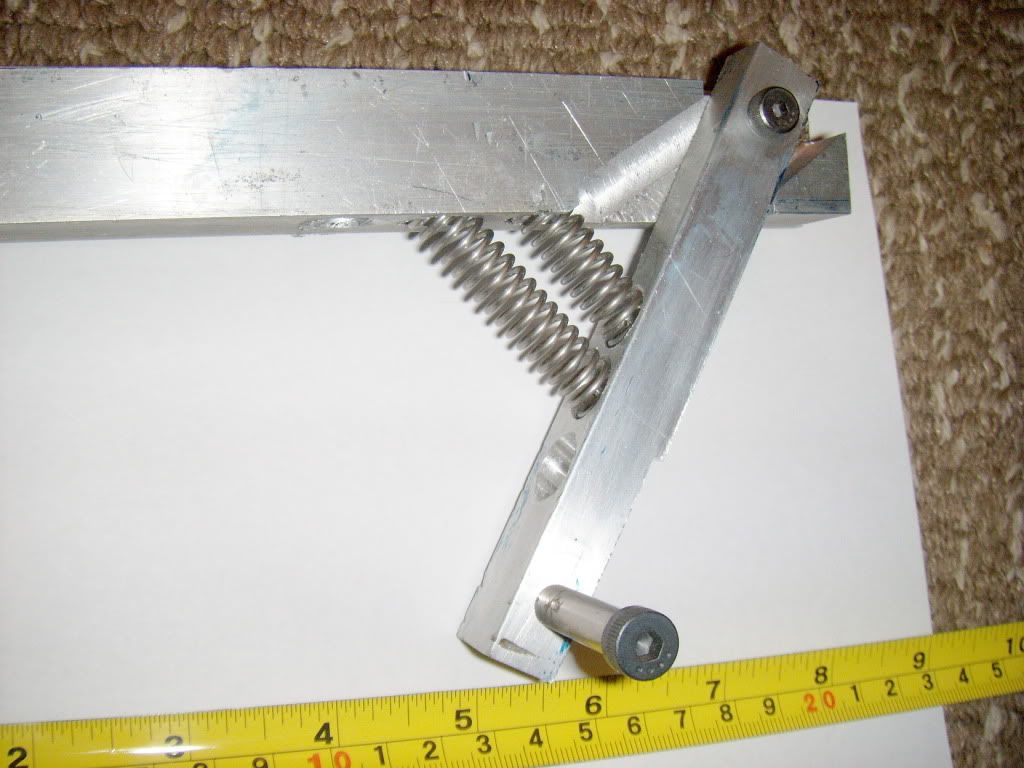

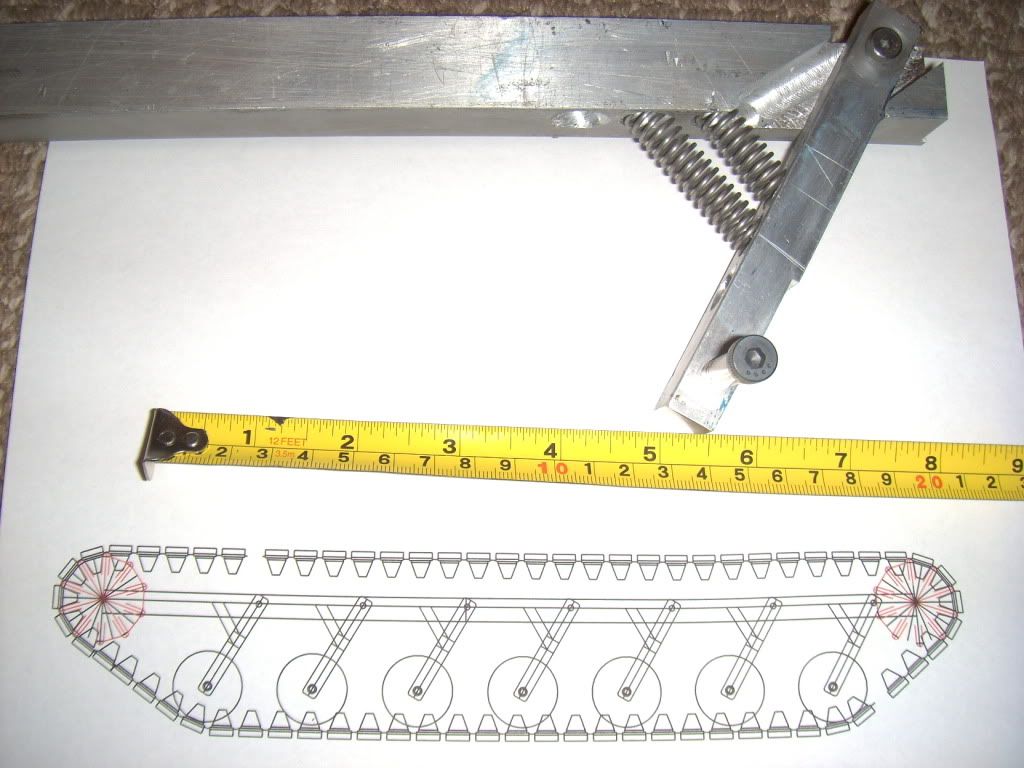

http://i192.photobucket.com/albums/z65/mm123521/HPIM0698.jpg http://i192.photobucket.com/albums/z65/mm123521/HPIM0699.jpg The boggie has 1.3 inch travel and a compressed wheel pressure of 14 pounds. There are positive travel stops (up and down) built into the 1 inch bar. The lever bar is pivoted on a shoulder bolt, and a 3/8 inch shoulder bolt is the wheel axle. The lever bar is 3/4 X 5/8 X 5 inch aluminum. The springs are captive in pockets on both sides. Mark -- You are currently subscribed to the "R/C Tank Combat" group. To post a message, send email to [email protected] To unsubscribe, send email to [email protected] Visit the group at http://groups.google.com/group/rctankcombat
