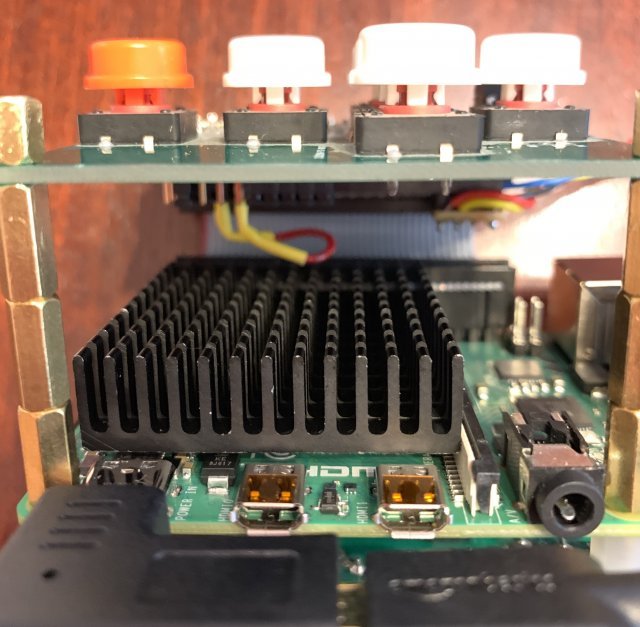

My 40mm x 40mm x 11mm heatsink arrived today. It just about fits without having to be trimmed around the camera connector. I used a thermal pad to fix it to the CPU.

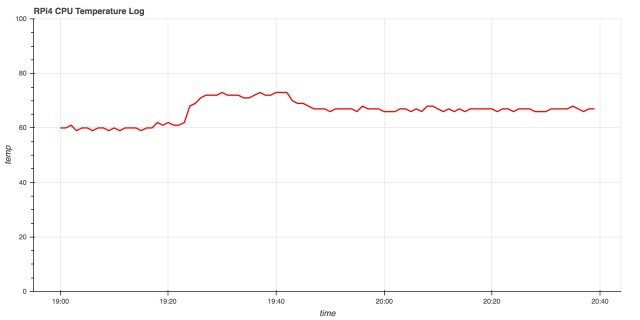

[image: http://www.cjh.me.uk/MyPhotobucket/cache/DIYHifi/RPi%20Board/Heatsink1_640.jpg] [image: http://www.cjh.me.uk/MyPhotobucket/cache/DIYHifi/RPi%20Board/Heatsink2_640.jpg] It seems to do the job. I ran approx 20 minutes of oggenc jobs, and simultaneously did a library 'clear and rescan'. The temperature got up to the low 70s, and then cooled back down to ~63 degrees. The 'background' temperature inside my amplifier seems to be the dominant factor. I think this is simpler than trying to connect the CPU to my amplifier chassis. [image: http://www.cjh.me.uk/MyPhotobucket/cache/DIYHifi/RPi%20Board/underload_640.jpg] ------------------------------------------------------------------------ chill's Profile: http://forums.slimdevices.com/member.php?userid=10839 View this thread: http://forums.slimdevices.com/showthread.php?t=110690 _______________________________________________ discuss mailing list discuss@lists.slimdevices.com http://lists.slimdevices.com/mailman/listinfo/discuss
