Hi all, I'm working with ganglia for SGI, and I'm trying to get a better layout for our Altix ICE clusteris. These have a hierarchical management infrastructure with an admin node that watches over each rack leader.

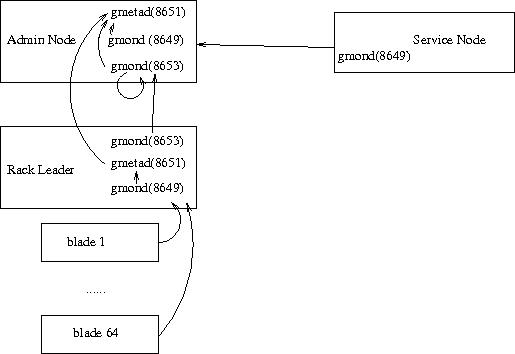

The goals for this reorganization were: - due to the size of some of these cluster, I really wanted to start aggregating on the rack leaders with gmetad. - Put service nodes into their own cluster - Put the rack leaders and admin node into their own cluster The layout that I've come up with is this: http://bork.org/~mort/ice-ganglia.jpg The data_source excerpt from the admin node looks like this: # Rack information about the blades data_source "Rack 1" r1lead:8651 # Service nodes data_source "Service Nodes" admin # for now only one service node # Infrastructure nodes data_source "Controller Nodes" admin:8653 If I go to the ganglia webpage on the admin node I see the top level Grid (Altix Ice Grid), the Service cluster, the Controller cluster and the Rack 1 Grid. The question I have is this: When I click on the Rack 1 Grid I properly get redirected to the webserver on r1lead, but it then requires *another* click to get down to the actual cluster view. Is there a way go make this extra click though disappear? (BTW: I'm going all of this now that I've already upgraded to ganglia-3.1.0 + a few patches. Its all looking very good!) thanks mh ------------------------------------------------------------------------- This SF.Net email is sponsored by the Moblin Your Move Developer's challenge Build the coolest Linux based applications with Moblin SDK & win great prizes Grand prize is a trip for two to an Open Source event anywhere in the world http://moblin-contest.org/redirect.php?banner_id=100&url=/ _______________________________________________ Ganglia-general mailing list [email protected] https://lists.sourceforge.net/lists/listinfo/ganglia-general
