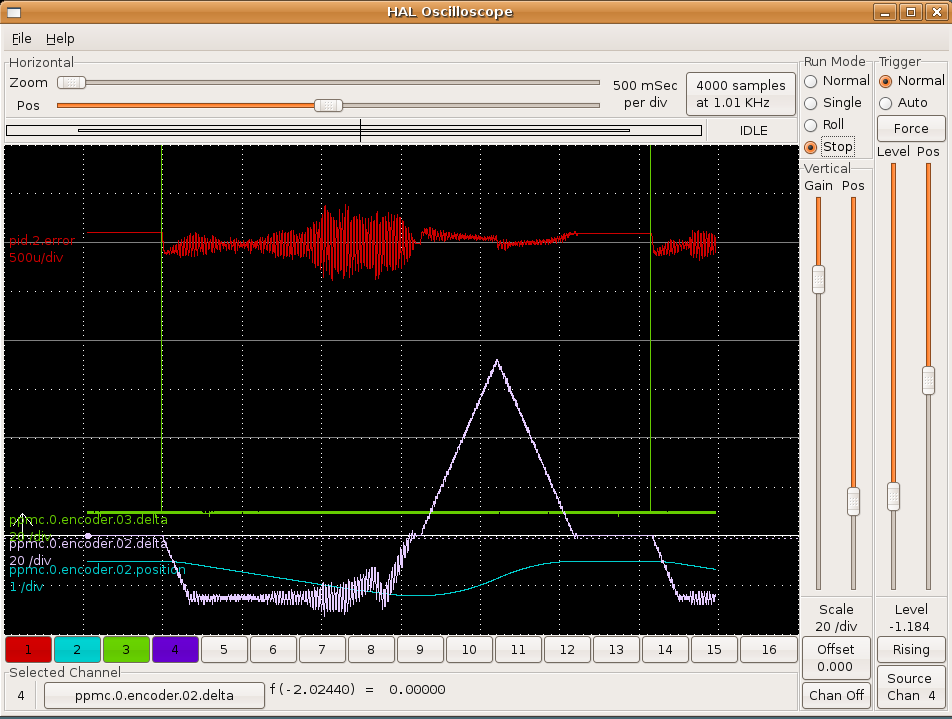

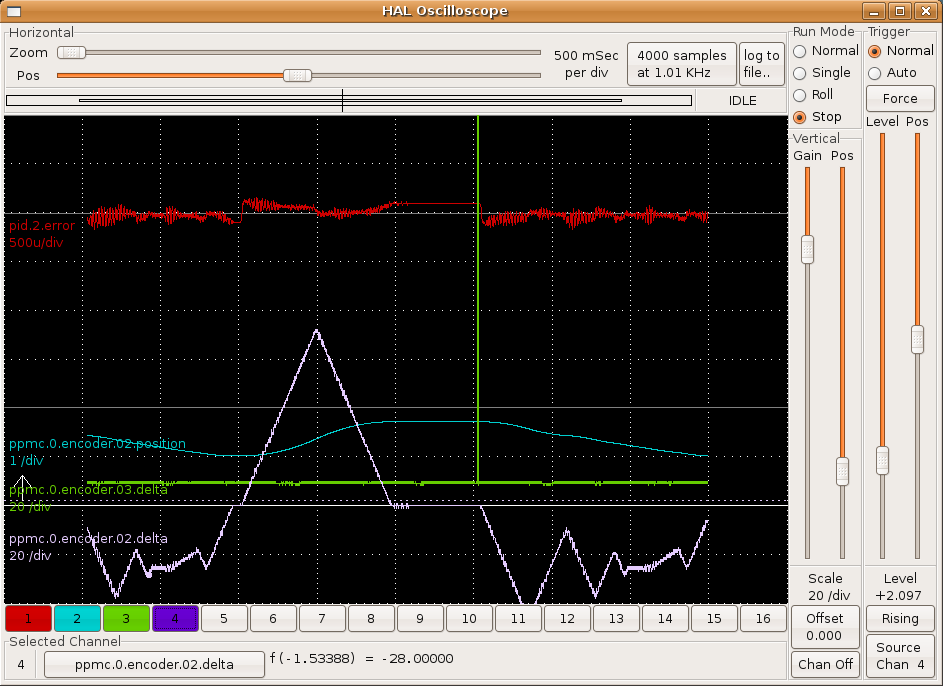

Kirk Wallace wrote: > This is what I got with 2.3.0 and the previous threading sample with > 4=0.08333 at 400 RPM: > > http://www.wallacecompany.com/machine_shop/HNC/HALscope_2.3_threading.png > > Previous (2.2.8): > > http://www.wallacecompany.com/machine_shop/HNC/4at083333-2.png > > 2.3.0 seems to be much better, but the HALscope is still interesting. It > seems to get more unstable as the cut progresses? > > Well, the spindle is loaded down with the cutting effort, and may have some vibration due to that. The Z axis may be trying to follow those small fluctuations. Before, I think there was a LOT of low-pass filtering on the spindle velocity, which may have been part of the problem.
Jon ------------------------------------------------------------------------------ Crystal Reports - New Free Runtime and 30 Day Trial Check out the new simplified licensign option that enables unlimited royalty-free distribution of the report engine for externally facing server and web deployment. http://p.sf.net/sfu/businessobjects _______________________________________________ Emc-users mailing list Emc-users@lists.sourceforge.net https://lists.sourceforge.net/lists/listinfo/emc-users
